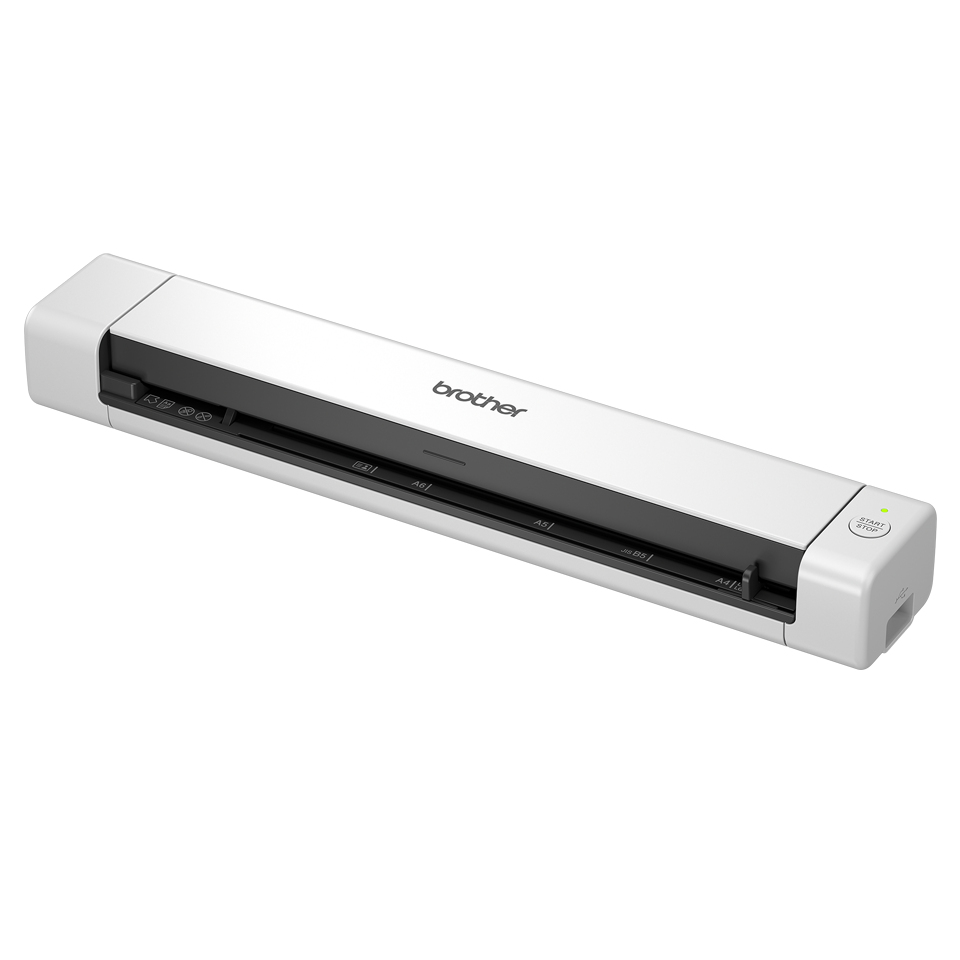

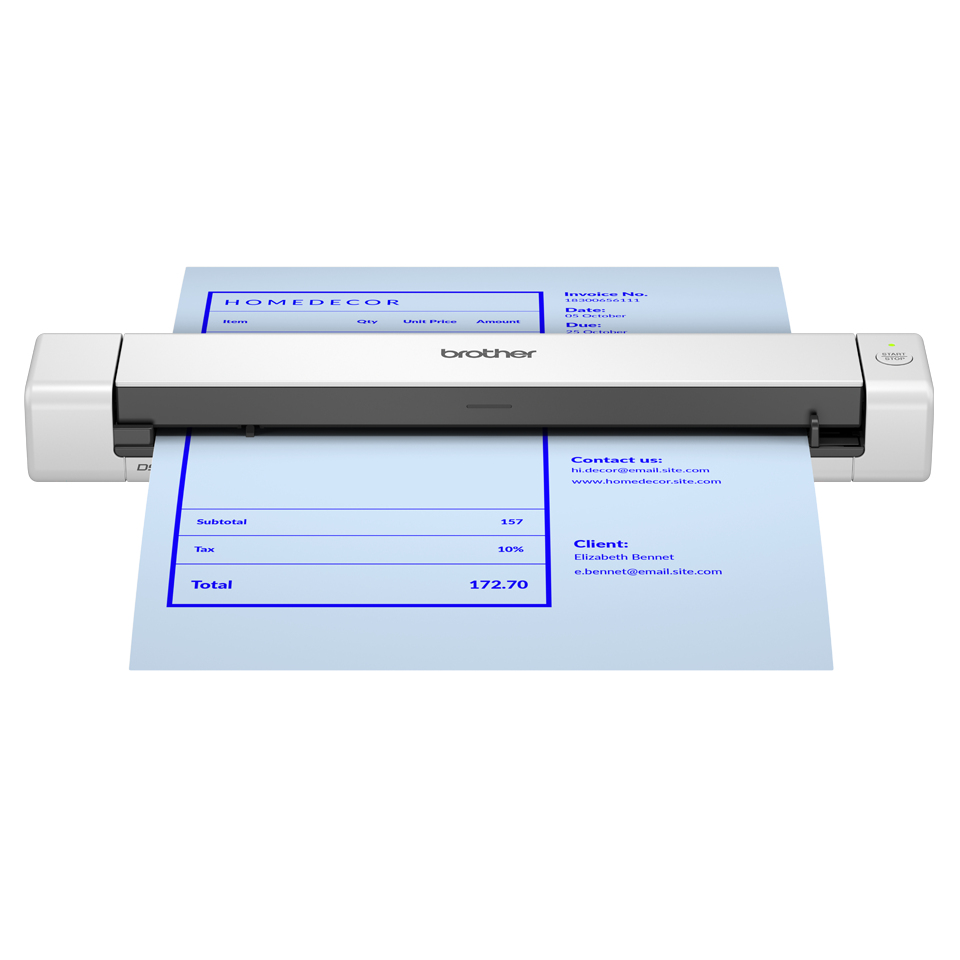

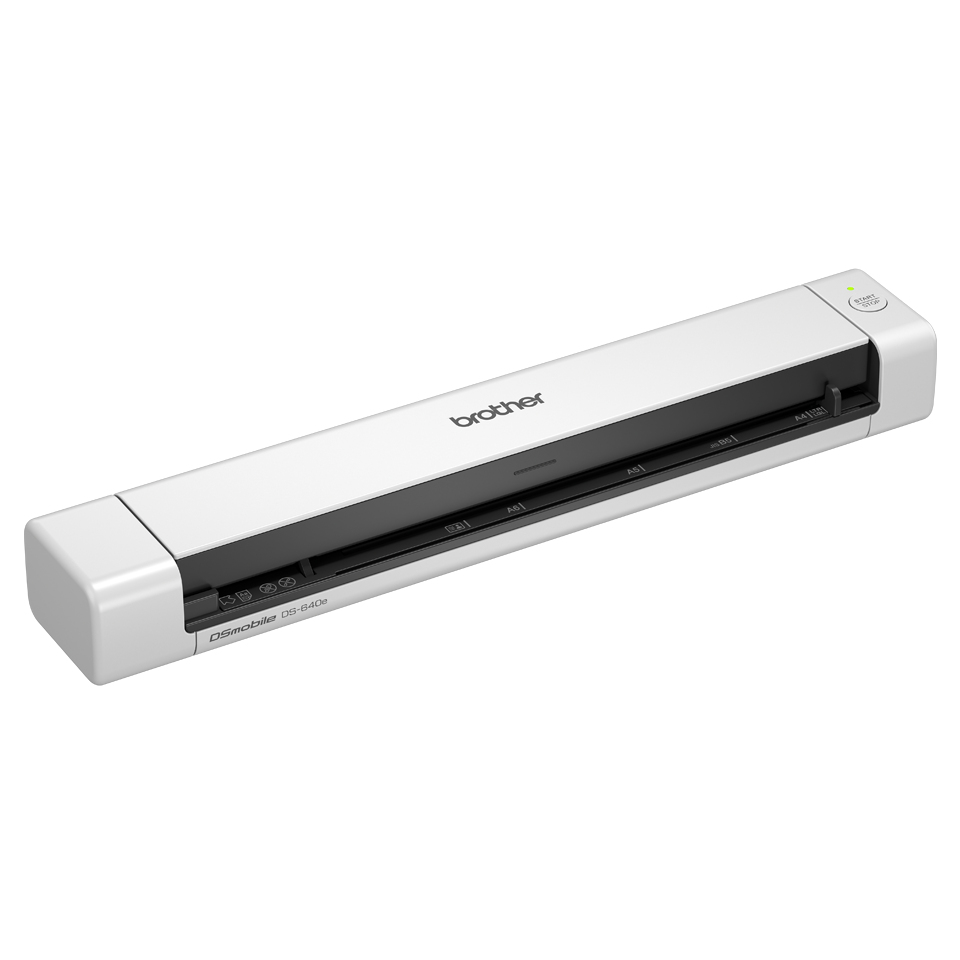

DS-640E scanner Handheld scanner
600 x 600 DPI A4 Black, White
Model DS-640EEAN 4977766849760
65 specifications
- Weight849 g
- ColourBlack, White
- Maximum scan size215.9 x 1828.8 mm
- Scanner typeHandheld scanner
- Sensor typeCIS
- Maximum ISO A-series paper sizeA4
Overview
- Weight
- 849 g
- Colour
- Black, White
- Maximum scan size
- 215.9 x 1828.8 mm
- Scanner type
- Handheld scanner
- Sensor type
- CIS
- Maximum ISO A-series paper size
- A4
- Brand
- Brother
- Category
- Scanner
- Model
- DS-640E
- Part numbers
- DS-640E, DS640ETJ1
- EAN / UPC
- 4977766849760
- Also known as
- Brother DS-640E scanner Handheld scanner 600 x 600 DPI A4 Black, White
Specifications
65 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 1828.8 mm |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | No |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 15 ppm |
| ADF scan speed (colour, A4) | 15 ppm |
| Black/white scanning colour modes | Grayscale |
Design
| Specification | Value |
|---|---|
| Scanner type | Handheld scanner |
| Built-in display | No |
| Product colour | Black, White |
Performance
| Specification | Value |
|---|---|
| Sensor type | CIS |
| Scan file formats | PDF, TIFF, JPEG |
| Scan to | E-mail, File, Image, OCR |
| Scan drivers | SANE, TWAIN, WIA |
| Scanning noise level | 53 dB |
| Sound pressure level (max) | 42 dB |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Plain paper, Plastic Card |
| Long-paper mode | Yes |
| Card thickness (max) | 1.24 mm |
| Plastic card media weight | 35 - 270 g/m² |
| Auto Document Feeder (ADF) media weight | 35 - 270 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-C |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.6 W |
| Power supply type | USB |
| Power consumption (standby) | 1.4 W |
| Power consumption (off) | 0.01 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 301 mm |
| Depth | 36.8 mm |
| Height | 50.6 mm |
| Weight | 849 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 377 mm |
| Package depth | 162 mm |
| Package height | 76 mm |
| Package weight | 849 g |
Packaging content
| Specification | Value |
|---|---|
| Warranty card | Yes |
| Cables included | Micro-USB |
| Quick start guide | Yes |
System requirements
| Specification | Value |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| Maximum media length | 182.9 cm |
| Maximum media width | 215.9 |
| Scan media weight | 35 - 270 g/m² |
Technical details
| Specification | Value |
|---|---|
| Pallet type | 800 x 1200 mm |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 240 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 84716070 |
| Layers per pallet | 8 pc(s) |
| Master (outer) cases per pallet | 80 pc(s) |
| Master (outer) cases per pallet layer | 10 pc(s) |
| Pallet gross height | 16.3 cm |
| Pallet gross weight | 242 kg |
