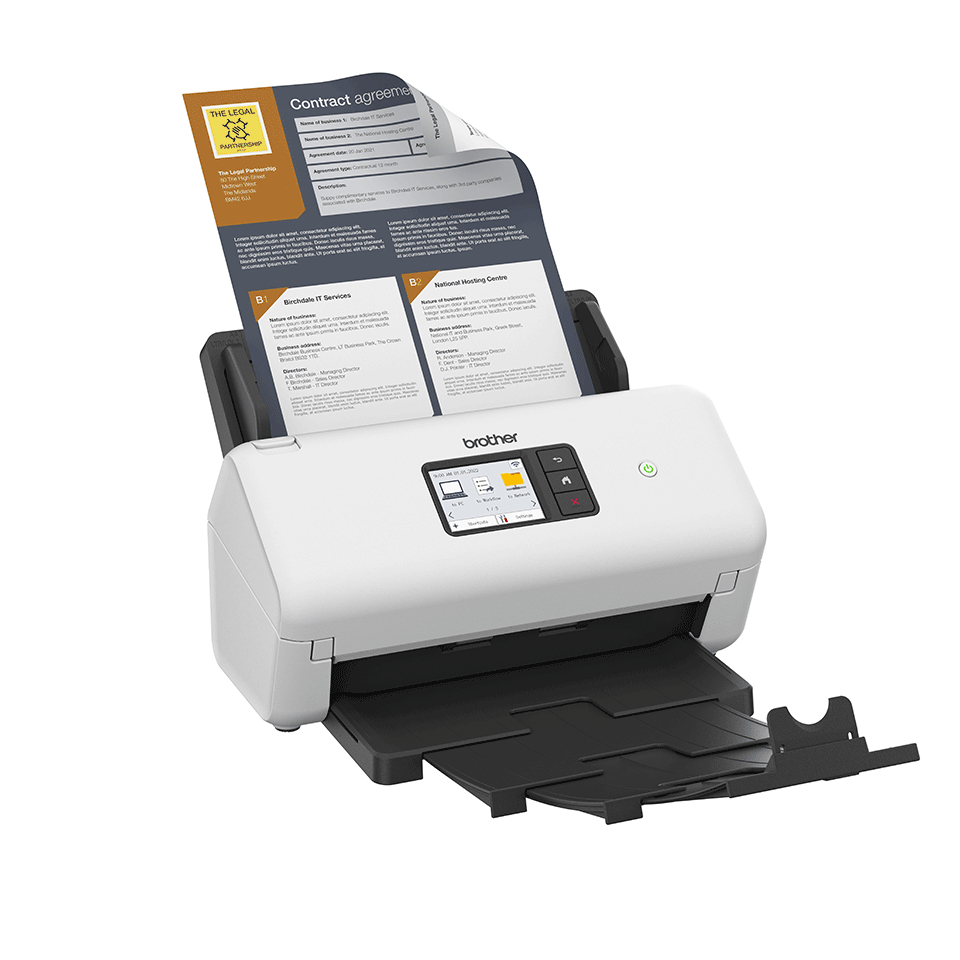

ADS-4550W ADF scanner

ADS-4550W ADF scanner

600 x 600 DPI Black, White

Model ADS-4550WPart no. ADS4550WUN1EAN 4977766838450

81 specifications

Display7.11 cm (2.8")
Weight2.7 kg
ColourBlack, White
Optical scanning resolution600 x 600 DPI
Scanner typeADF scanner
Sensor typeDual CIS

See all specifications

Overview

Display: 7.11 cm (2.8")
Weight: 2.7 kg
Colour: Black, White
Optical scanning resolution: 600 x 600 DPI
Scanner type: ADF scanner
Sensor type: Dual CIS

Brand: Brother
Category: Scanner
Model: ADS-4550W
Part numbers: ADS4550WUN1, ADS4550WZU1, ADS-4550W
EAN / UPC: 4977766838450, 4977766838436, 4977766838443
Also known as: Brother ADS-4550W ADF scanner 600 x 600 DPI Black, White

Specifications

81 specifications in 14 groups

Scanning

Specification	Value
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	48 bit
Output colour depth	24 bit
Output greyscale depth	8 bit
ADF scan speed (b/w, A4)	35 ppm
ADF scan speed (colour, A4)	35 ppm
Duplex ADF scan speed (b/w, A4)	70 ipm
Duplex ADF scan speed (colour, A4)	70 ipm

Design

Specification	Value
Scanner type	ADF scanner
Built-in display	Yes
Product colour	Black, White
Display diagonal	7.11 cm (2.8")
Touchscreen	Yes
Colour display	Yes
Control type	Buttons, Touch

Performance

Specification	Value
Sensor type	Dual CIS
Scan file formats	JPEG, PDF, TIFF
Daily duty cycle (max)	5250 pages
Maximum duty cycle	105000 pages per month
Scan to	E-mail Server, FTP, Image, Network folder, PC, SMB, USB
Scan drivers	SANE, TWAIN, WIA
Sound pressure level (max)	59 dB

Input capacity

Specification	Value
Auto document feeder (ADF) input capacity	60 sheets

Paper handling

Specification	Value
Scanning media types supported	Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Long-paper mode	Yes
ISO A-series sizes (A0...A9)	A3, A4
Card thickness (max)	1.32 mm
Auto Document Feeder (ADF) media weight	40 - 200 g/m²

Ports & interfaces

Specification	Value
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Security algorithms	64-bit WEP, 128-bit WEP, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS, TLS, WPA-PSK, WPA-PSK2, WPA3-SAE, WPS
Mobile printing technologies	Apple AirPrint, Brother Mobile Connect
IPv6 support	Yes
Supported network protocols (IPv4)	DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services (Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client
Supported network protocols (IPv6)	RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6
Wi-Fi Direct	Yes

Power

Specification	Value
Power consumption (typical)	25 W
Power supply type	DC
Power consumption (standby)	2.3 W
Power consumption (off)	0.1 W
AC input frequency	50/60 Hz
Input voltage	100 - 240 V
Power consumption (sleep)	1.7 W
Output current	1.9 A
Output voltage	24 V
Auto power off	Yes

Weight & dimensions

Specification	Value
Width	300 mm
Depth	630 mm
Height	290 mm
Weight	2.7 kg
Folded width	30 cm
Folded depth	15.4 cm
Folded height	15.8 cm

Packaging data

Specification	Value
Quantity per pack	1 pc(s)
Package width	391 mm
Package depth	243 mm
Package height	320 mm
Package weight	4.5 kg

Packaging content

Specification	Value
Warranty card	Yes
AC adapter included	Yes
ADF paper chute	Yes
Cables included	AC, USB
Quick start guide	Yes

System requirements

Specification	Value
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2016, Windows Server 2019, Windows Server 2022
Windows operating systems supported	Windows 10, Windows 11

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Other features

Specification	Value
Cable lock slot	Yes
Compliance certificates	GS mark, RoHS
Custom media width	50.8 - 215.9 mm
Maximum media length	5 m
Maximum scan resolution	1200 x 1200 DPI
Product dimensions when closed (WxDxH)	300 x 216 x 191 mm
