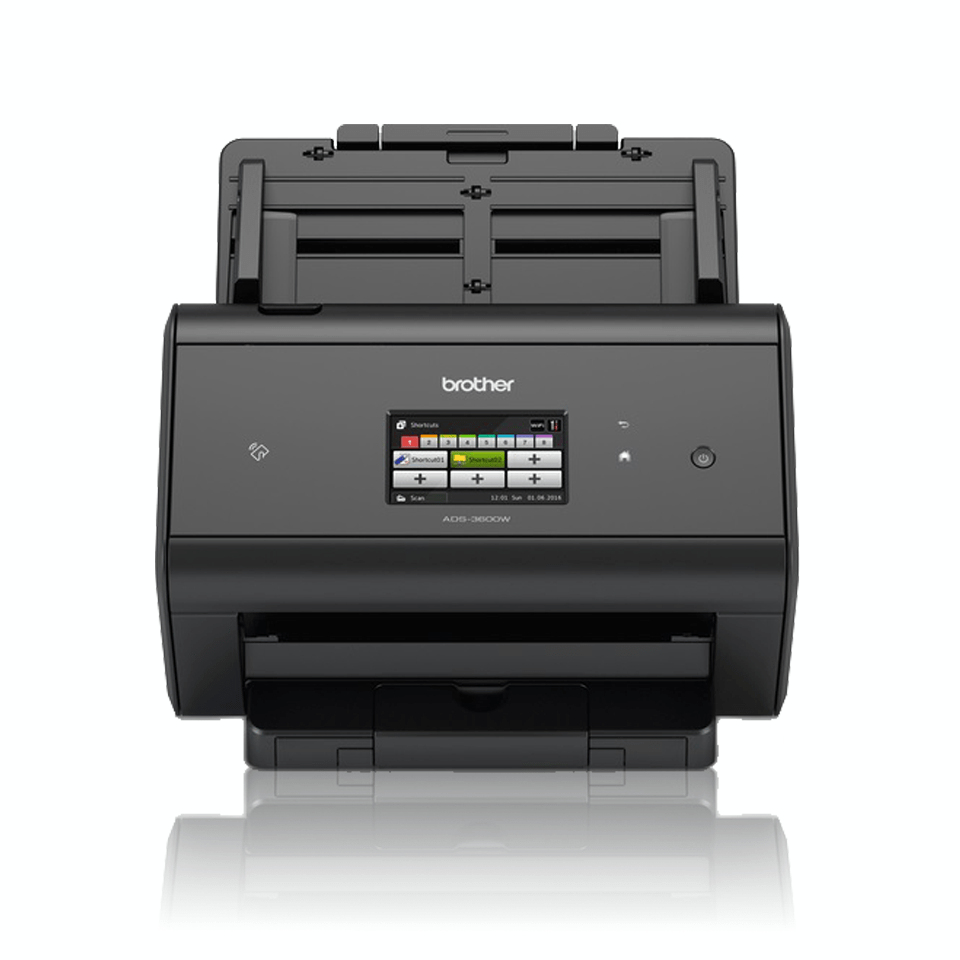

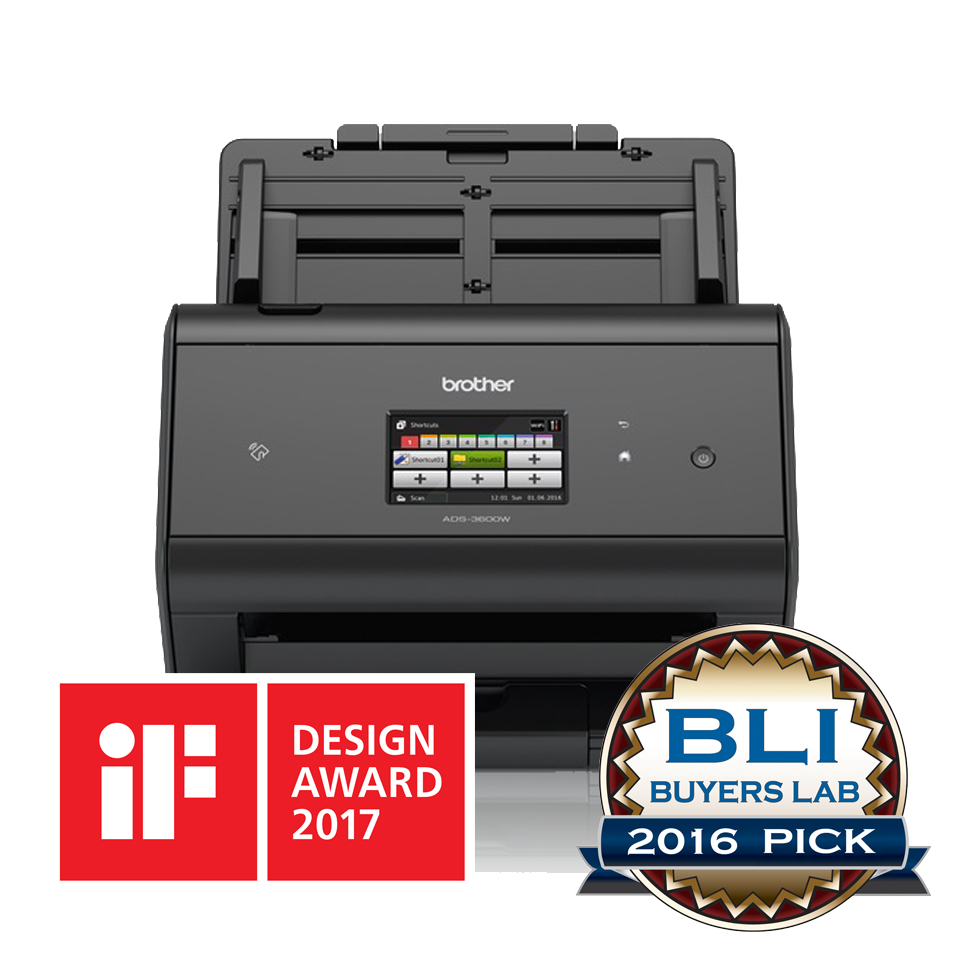

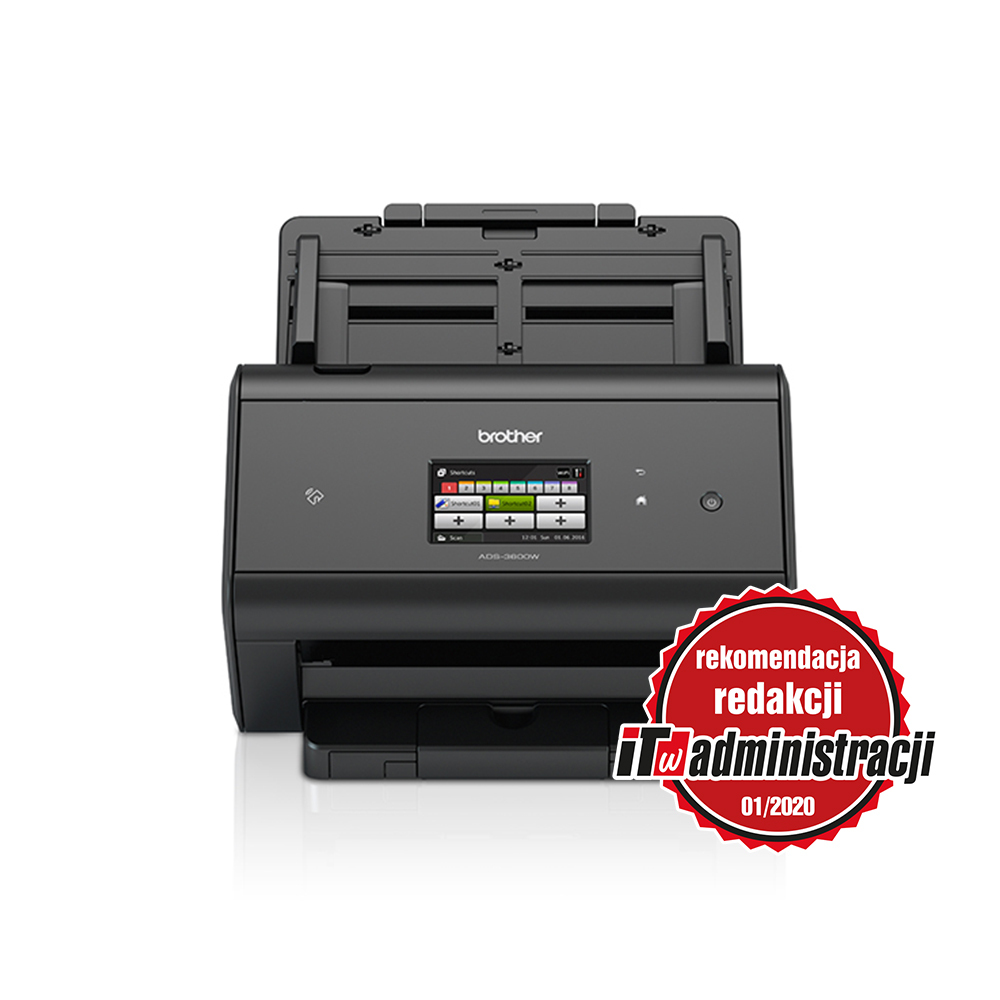

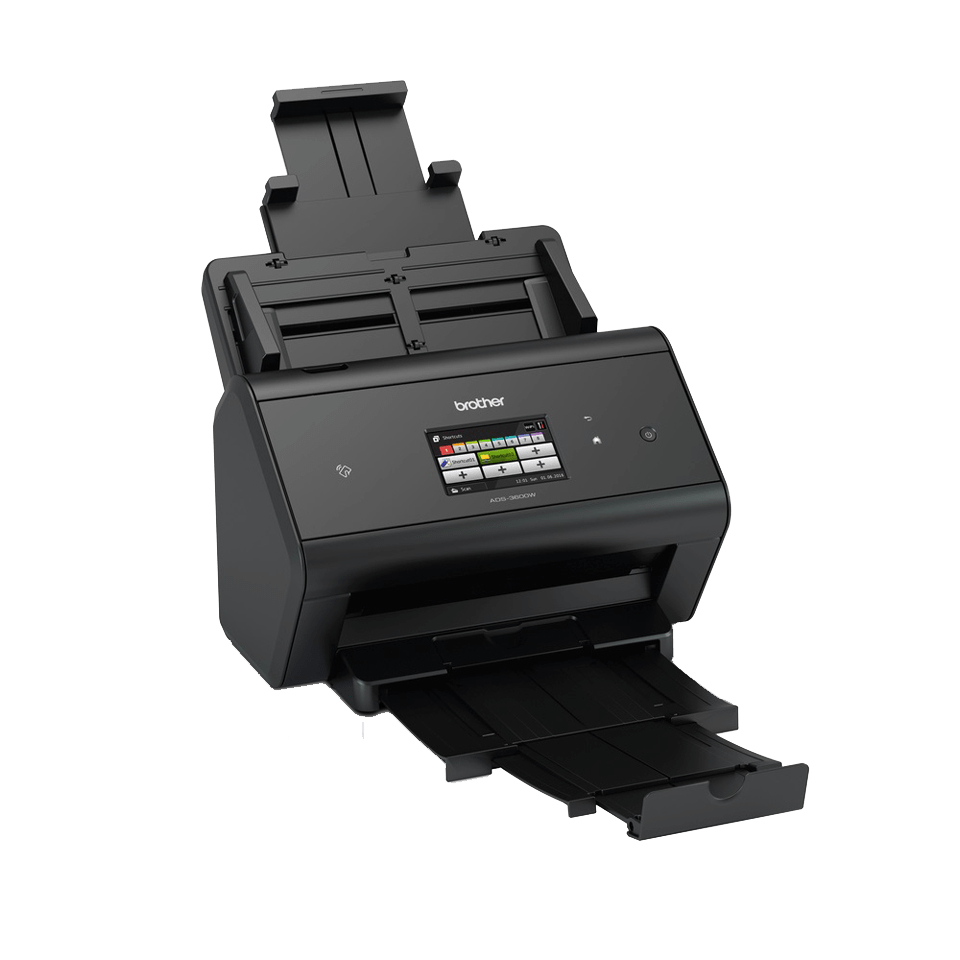

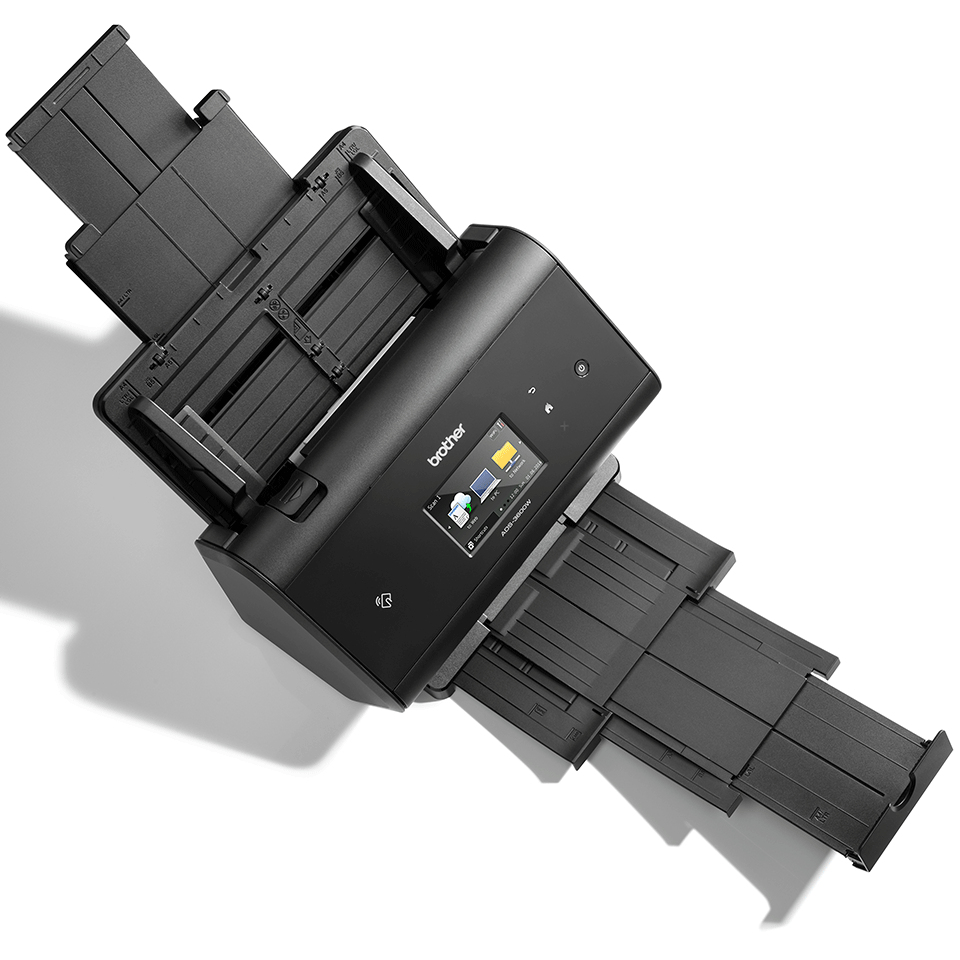

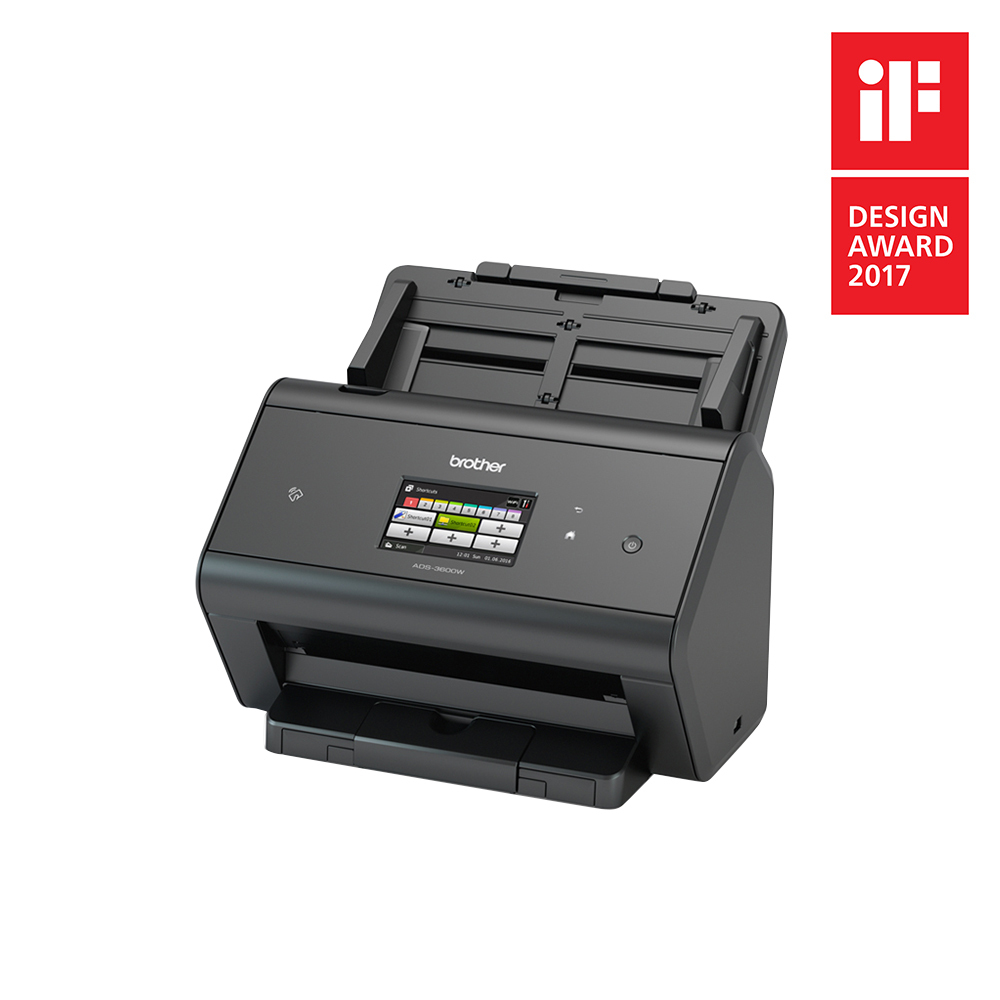

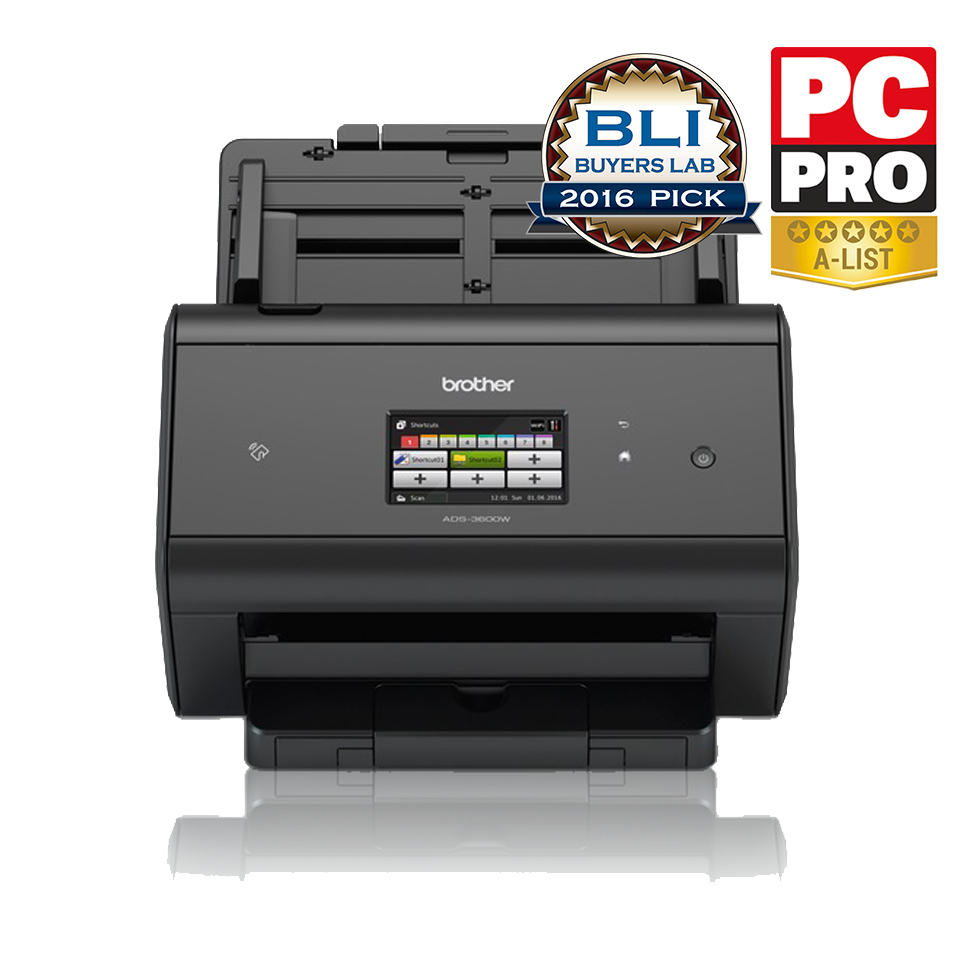

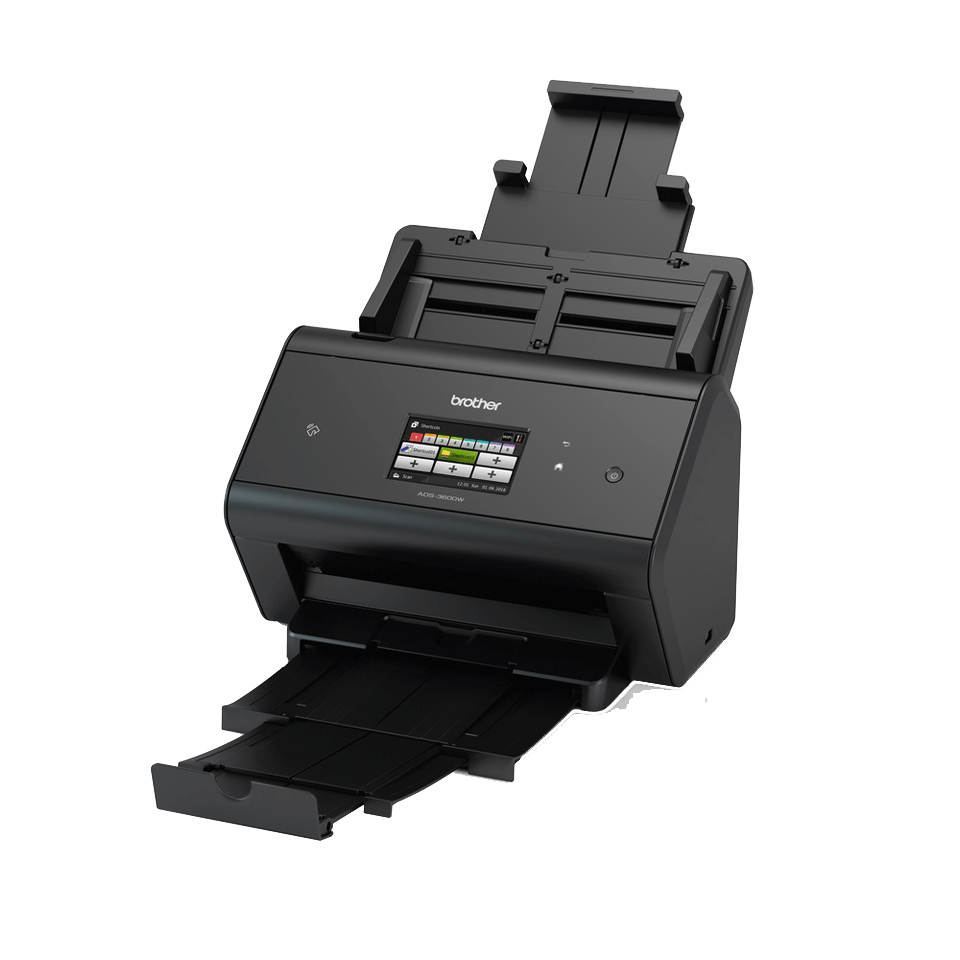

Brother ADS-3600W scanner ADF scanner

600 x 600 DPI A3 Black

Model ADS-3600WEAN 4977766755399

62 specifications

Display9.3 cm (3.66")
Memory512 MB
Weight5.15 kg
ColourBlack
Maximum scan size215.9 x 355.6 mm
Scanner typeADF scanner

See all specifications

Overview

Display: 9.3 cm (3.66")
Memory: 512 MB
Weight: 5.15 kg
Colour: Black
Maximum scan size: 215.9 x 355.6 mm
Scanner type: ADF scanner

Brand: Brother
Category: Scanner
Model: ADS-3600W
Part number: ADS-3600W
EAN / UPC: 4977766755399, 012502642794, 4002352011099, 4977766755351 +3 more
Also known as: Brother ADS-3600W scanner ADF scanner 600 x 600 DPI A3 Black

Specifications

62 specifications in 17 groups

Scanning

Specification	Value
Maximum scan size	215.9 x 355.6 mm
Enhanced scan resolution	1200 x 1200 DPI
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	30 bit
Output colour depth	24 bit
Film scanning	No
Greyscale levels	256
ADF scan speed (b/w, A4)	50 ppm
ADF scan speed (colour, A4)	50 ppm

Design

Specification	Value
Scanner type	ADF scanner
Built-in display	Yes
Product colour	Black
Display	LCD
Display diagonal	9.3 cm (3.66")
Touchscreen	Yes

Performance

Specification	Value
Sensor type	Dual CIS
Daily duty cycle (max)	5000 pages
Scan to	Cloud, E-mail, FTP, File, HTTP, Image, OCR, PC, USB
Scan drivers	ICA, SANE, TWAIN, WIA
Internal memory	512 MB

Input capacity

Specification	Value
Auto document feeder (ADF) input capacity	50 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A3
Scanning media types supported	Business Card, Plastic Card, Recycled paper, Thick paper, Thin paper
ISO A-series sizes (A0...A9)	A3, A4, A5, A6, A7, A8
Auto Document Feeder (ADF) media weight	27 - 413 g/m²

Ports & interfaces

Specification	Value
USB port	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Security algorithms	EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, IPSEC, PEAP, SMTP-AUTH, SNMP, SSL/TLS
Supported network protocols	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, Custom Raw Port/Port9100, SMTP Client, FTP Client and Server, LDAP Client, CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Scan), SNTP Client

Power

Specification	Value
Power consumption (typical)	30 W
Power supply type	AC
Power consumption (standby)	4.9 W
Power consumption (off)	0.12 W
Power consumption (PowerSave)	2.9 W

Weight & dimensions

Specification	Value
Width	255 mm
Depth	355 mm
Height	380 mm
Weight	5.15 kg

Packaging data

Specification	Value
Package width	382 mm
Package depth	254 mm
Package height	330 mm
Package weight	6.2 kg

Packaging content

Specification	Value
Bundled software	Mac: Brother Control Center 2, ABBYY FineReader Professional Edition, Remote Set-up Windows: Brother Control Center 4, Nuance Paperport 14 SE, ABBYY FineReader v.11 Professional Edition, ABBYY PDF Transformer+, Remote Set-up, BRAdmin Professional 3

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

System requirements

Specification	Value
Mac operating systems supported	Yes
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Other features

Specification	Value
Spare part retention	5 year(s)

Technical details

Specification	Value
Pallet type	800 x 1200 mm

Logistics data

Specification	Value
Products per pallet	32 pc(s)
Country of origin	China
Harmonized System (HS) code	84716070
Layers per pallet	4 pc(s)
Master (outer) cases per pallet	32 pc(s)
Master (outer) cases per pallet layer	8 pc(s)
Pallet gross height	14.3 cm
Pallet gross weight	222.8 kg
