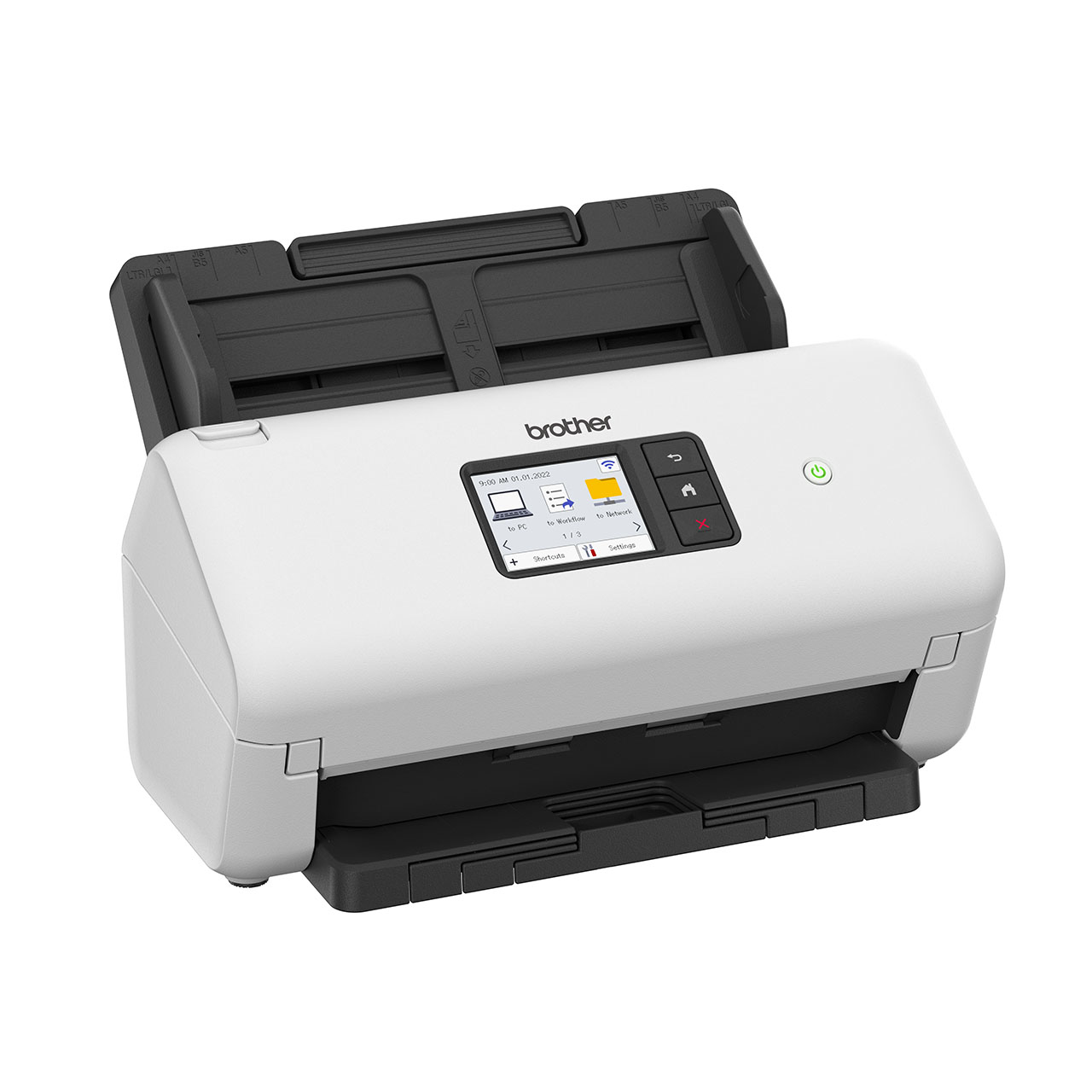

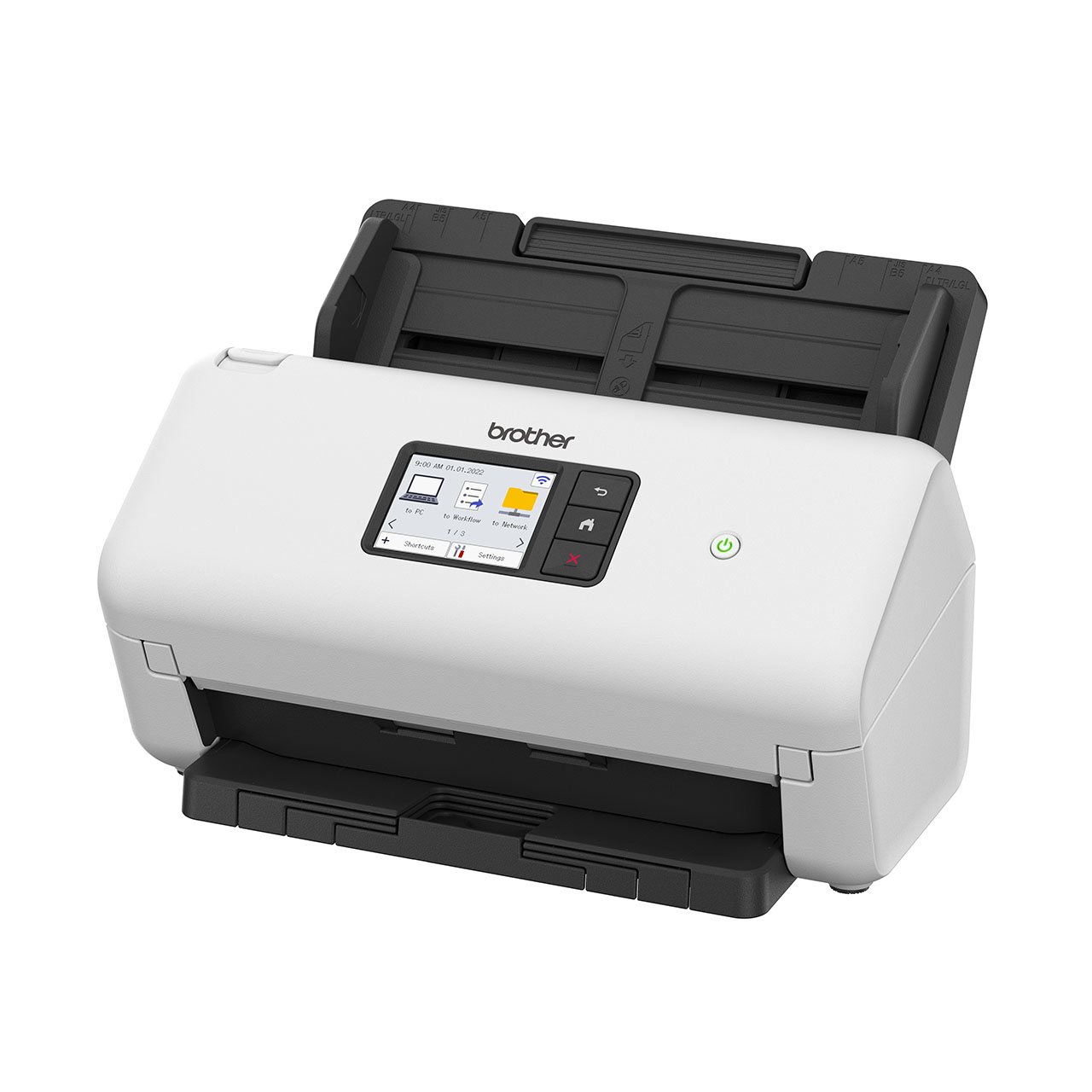

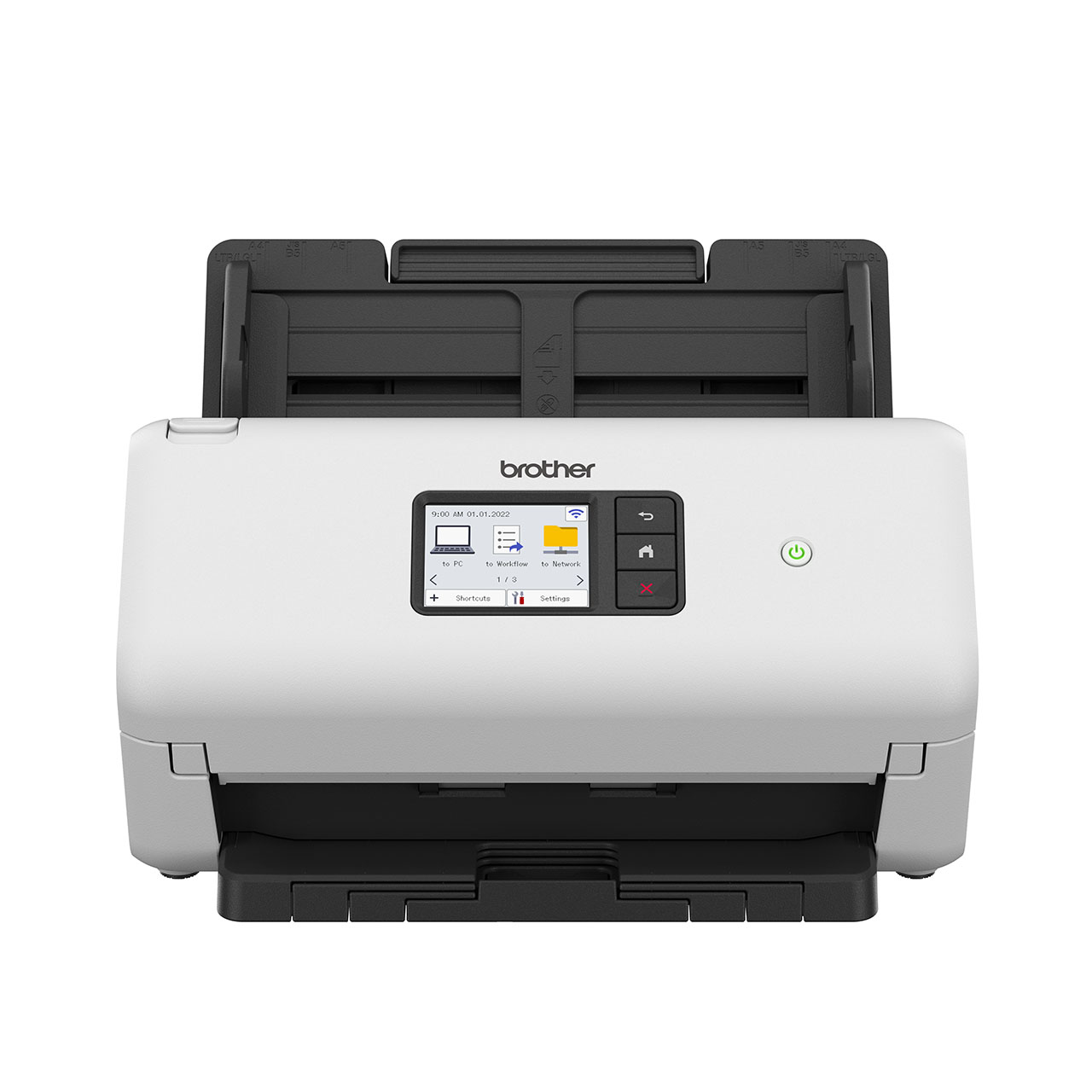

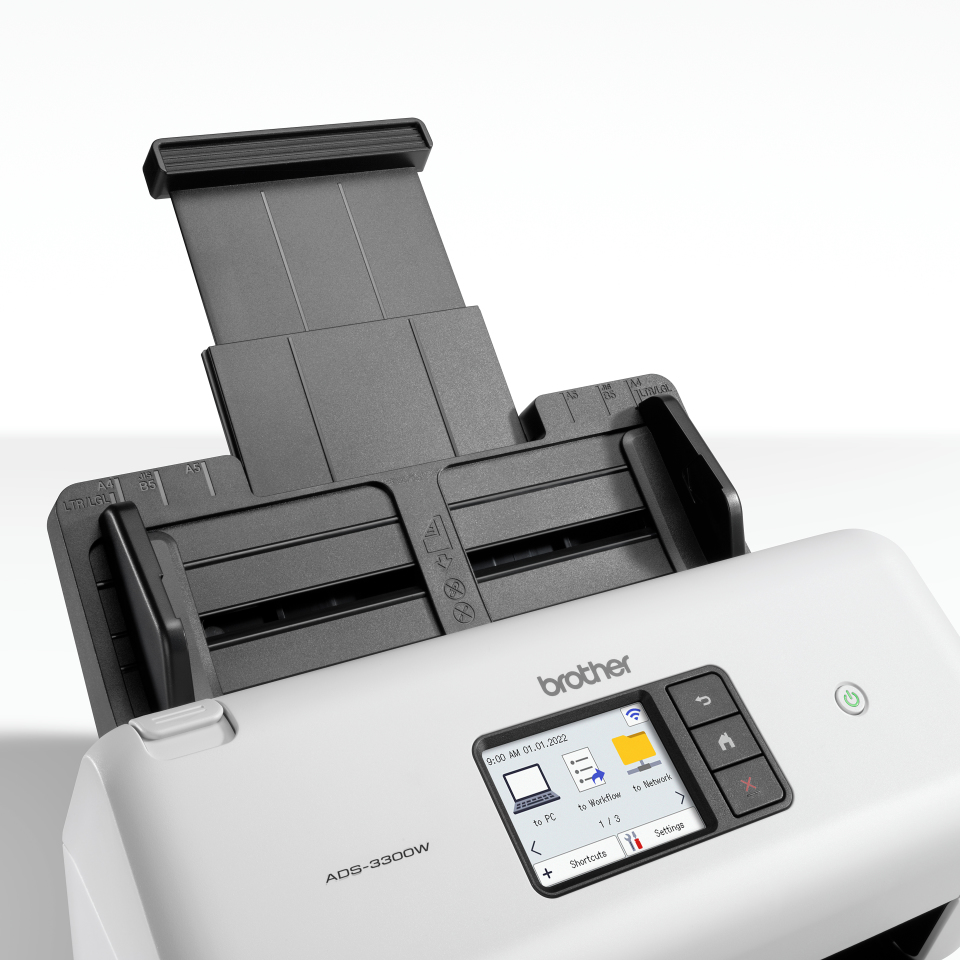

ADS-3300W scanner ADF + Sheet-fed scanner
600 x 600 DPI A4 Black, White
Model ADS-3300WEAN 012502666332
53 specifications
- Display7.11 cm (2.8")
- Memory512 MB
- Weight2.68 kg
- ColourBlack, White
- Maximum scan size355.6 x 215.9 mm
- Scanner typeADF + Sheet-fed scanner
Overview
- Display
- 7.11 cm (2.8")
- Memory
- 512 MB
- Weight
- 2.68 kg
- Colour
- Black, White
- Maximum scan size
- 355.6 x 215.9 mm
- Scanner type
- ADF + Sheet-fed scanner
- Brand
- Brother
- Category
- Scanner
- Model
- ADS-3300W
- Part number
- ADS-3300W
- EAN / UPC
- 012502666332, 4977766814607
- Also known as
- Brother ADS-3300W scanner ADF + Sheet-fed scanner 600 x 600 DPI A4 Black, White
Specifications
53 specifications in 10 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 355.6 x 215.9 mm |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (colour, A4) | 40 ppm |
| Duplex ADF scan speed (colour, A4) | 80 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF + Sheet-fed scanner |
| Built-in display | Yes |
| Product colour | Black, White |
| Display | LCD |
| Display diagonal | 7.11 cm (2.8") |
| Touchscreen | Yes |
| Colour display | Yes |
| Control type | Buttons |
Performance
| Specification | Value |
|---|---|
| Sensor type | Dual CIS |
| Scan file formats | JPEG, PDF, TIFF |
| Daily duty cycle (max) | 6000 pages |
| Scan to | PC |
| Internal memory | 512 MB |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 60 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper |
| Long-paper mode | Yes |
| Media thickness (min) | 0.08 mm |
| Card thickness (max) | 1.32 mm |
| Paper tray media weight | 40 - 200 g/m² |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 35.6 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g |
| Security algorithms | WEP, WPA-PSK, WPA2-PSK, WPA3 |
| IPv6 support | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 25 W |
| Power supply type | AC |
| Power consumption (standby) | 7.3 W |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Power consumption (PowerSave) | 1.7 W |
| Input voltage | 100-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 299 mm |
| Depth | 215 mm |
| Height | 190 mm |
| Weight | 2.68 kg |
| Folded width | 29.9 cm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
