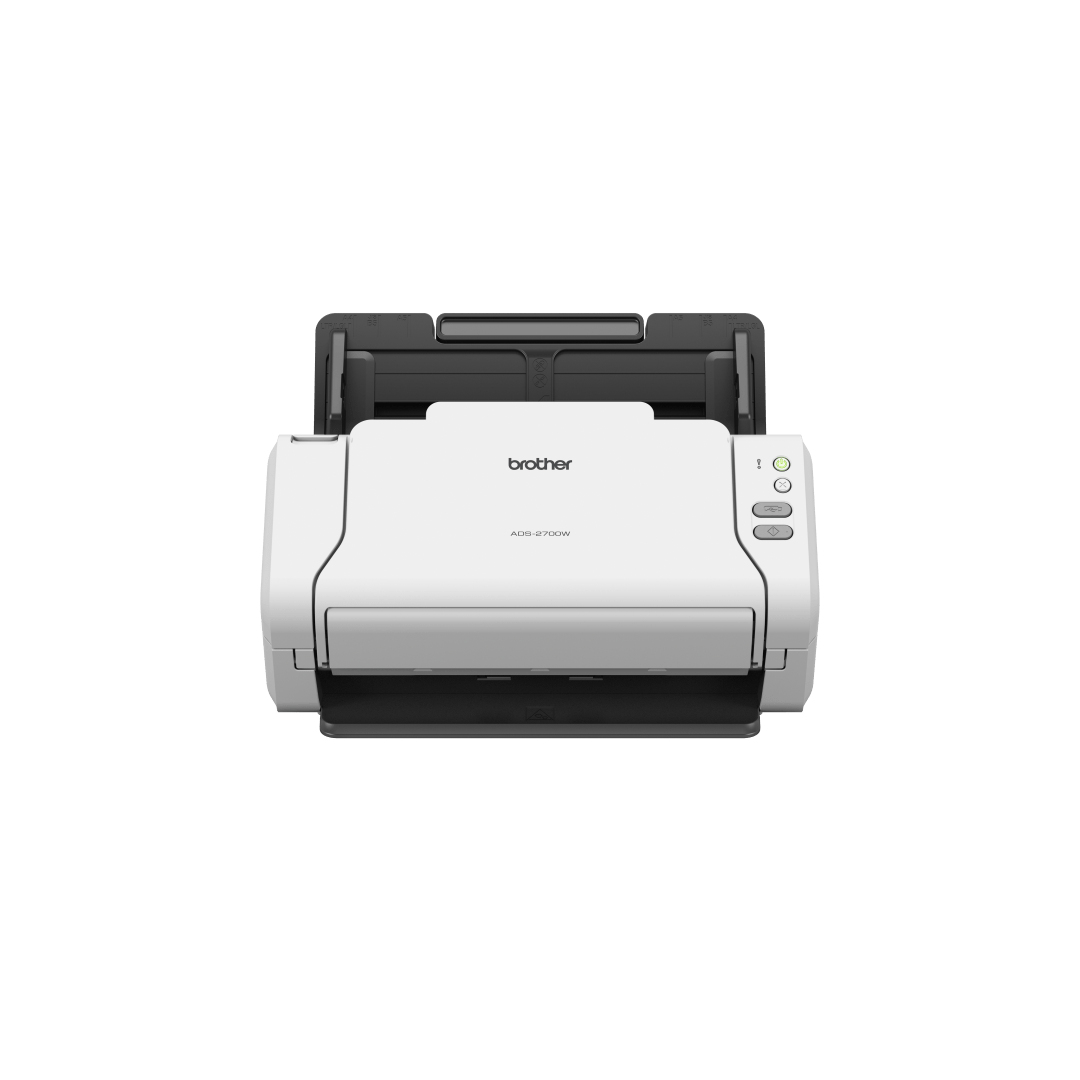

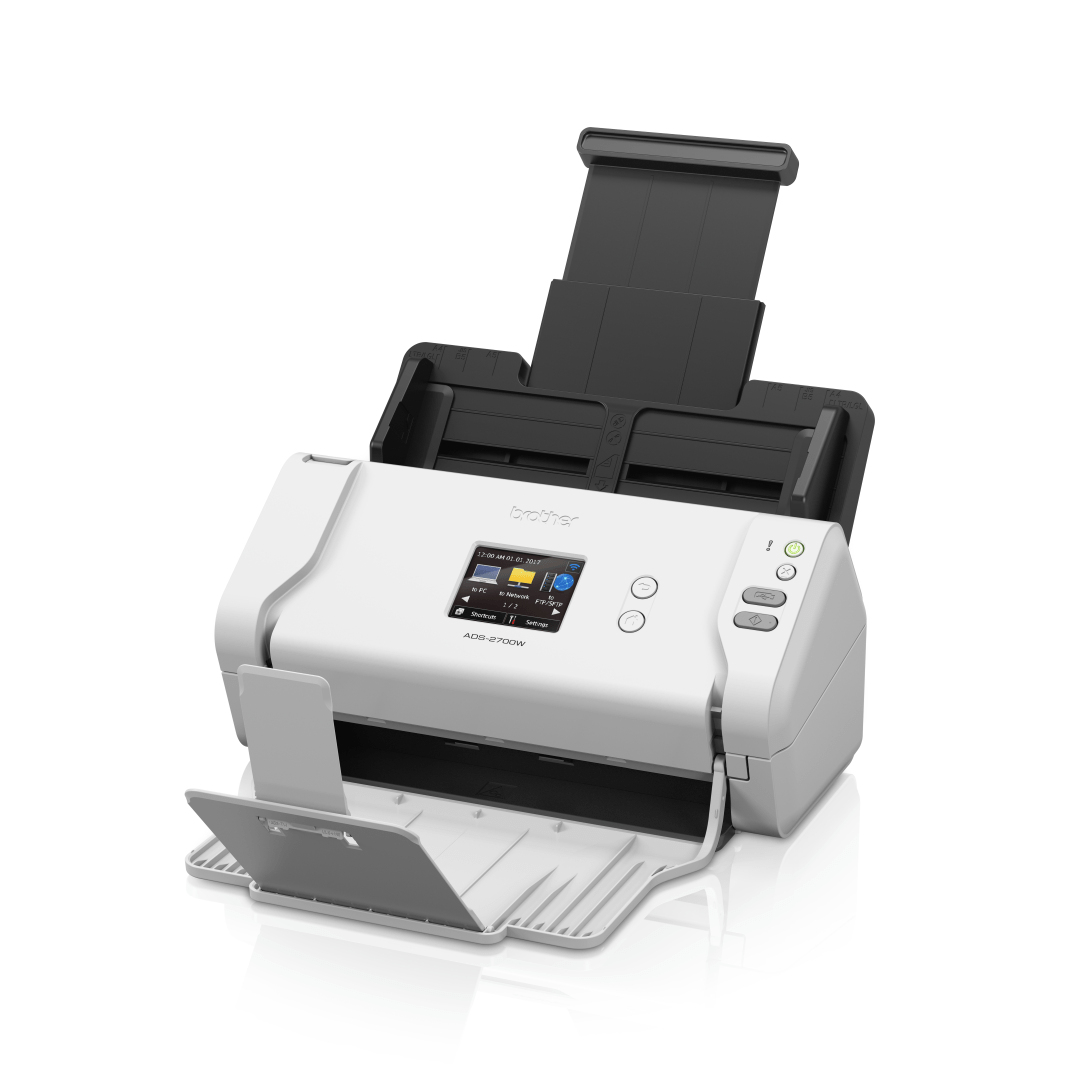

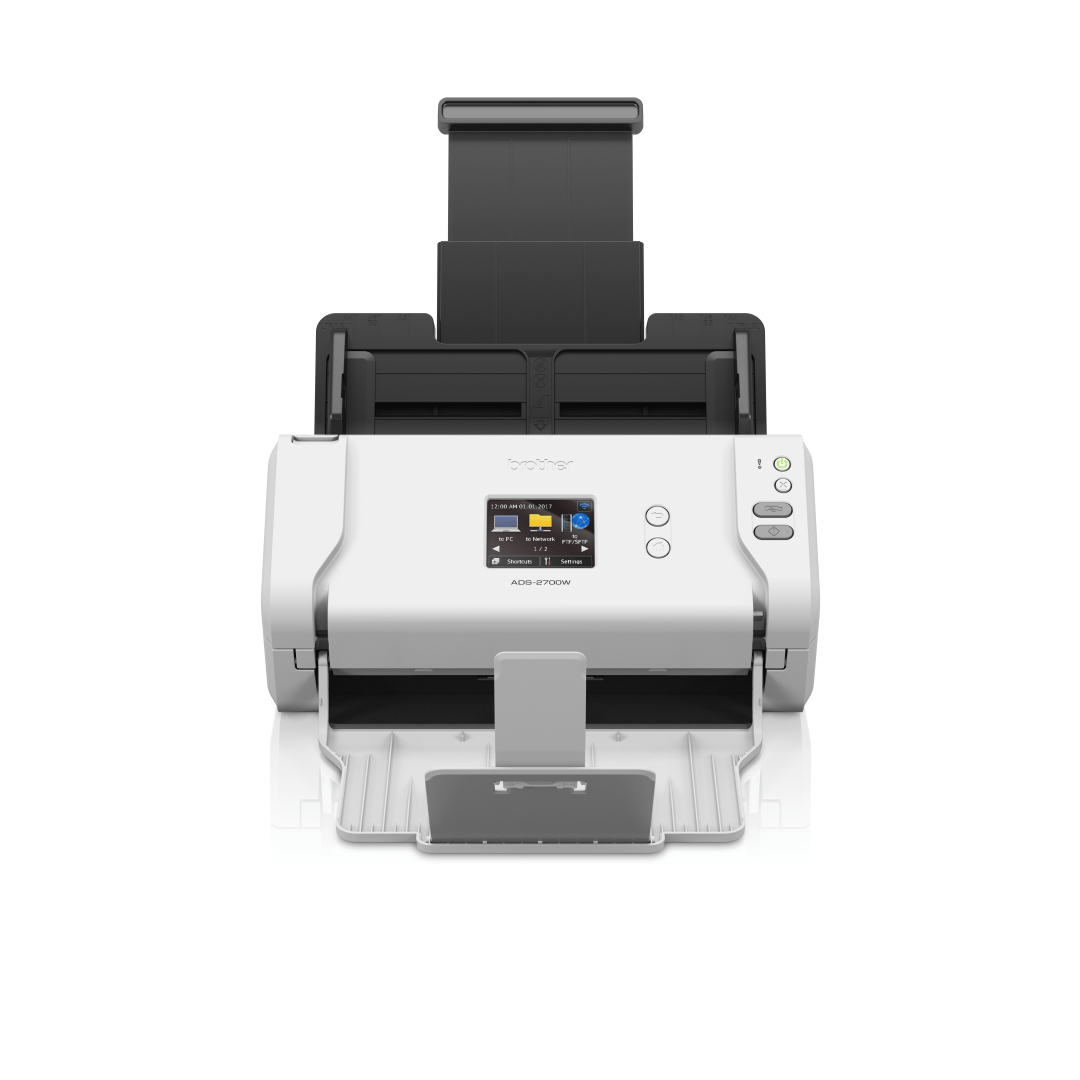

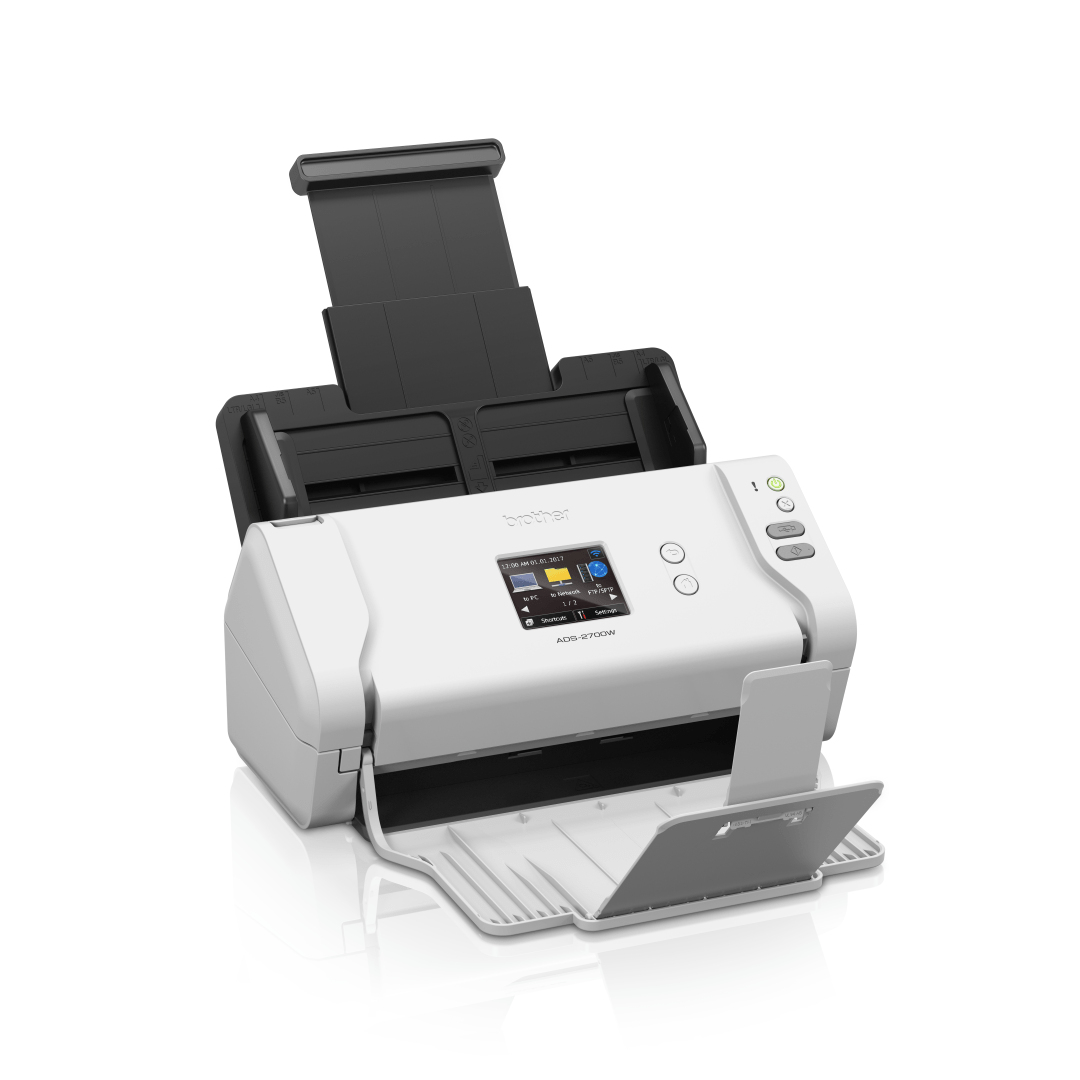

Brother ADS-2700W scanner ADF scanner

600 x 600 DPI A4 Black, White

Model ADS-2700WEAN 012502648758

70 specifications

Display7.11 cm (2.8")
Memory512 MB
Weight3.01 kg
ColourBlack, White
Maximum scan size215.9 x 355.6 mm
Scanner typeADF scanner

See all specifications

Overview

Display: 7.11 cm (2.8")
Memory: 512 MB
Weight: 3.01 kg
Colour: Black, White
Maximum scan size: 215.9 x 355.6 mm
Scanner type: ADF scanner

Brand: Brother
Category: Scanner
Model: ADS-2700W
Part number: ADS-2700W
EAN / UPC: 012502648758, 4002352011105, 4977766776752, 4977766776769
Also known as: Brother ADS-2700W scanner ADF scanner 600 x 600 DPI A4 Black, White

Specifications

70 specifications in 16 groups

Scanning

Specification	Value
Maximum scan size	215.9 x 355.6 mm
Enhanced scan resolution	1200 x 1200 DPI
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	48 bit
Output colour depth	24 bit
Output greyscale depth	8 bit
Greyscale levels	256
ADF scan speed (colour, A4)	35 ppm
Duplex ADF scan speed (b/w, A4)	70 ipm

Design

Specification	Value
Scanner type	ADF scanner

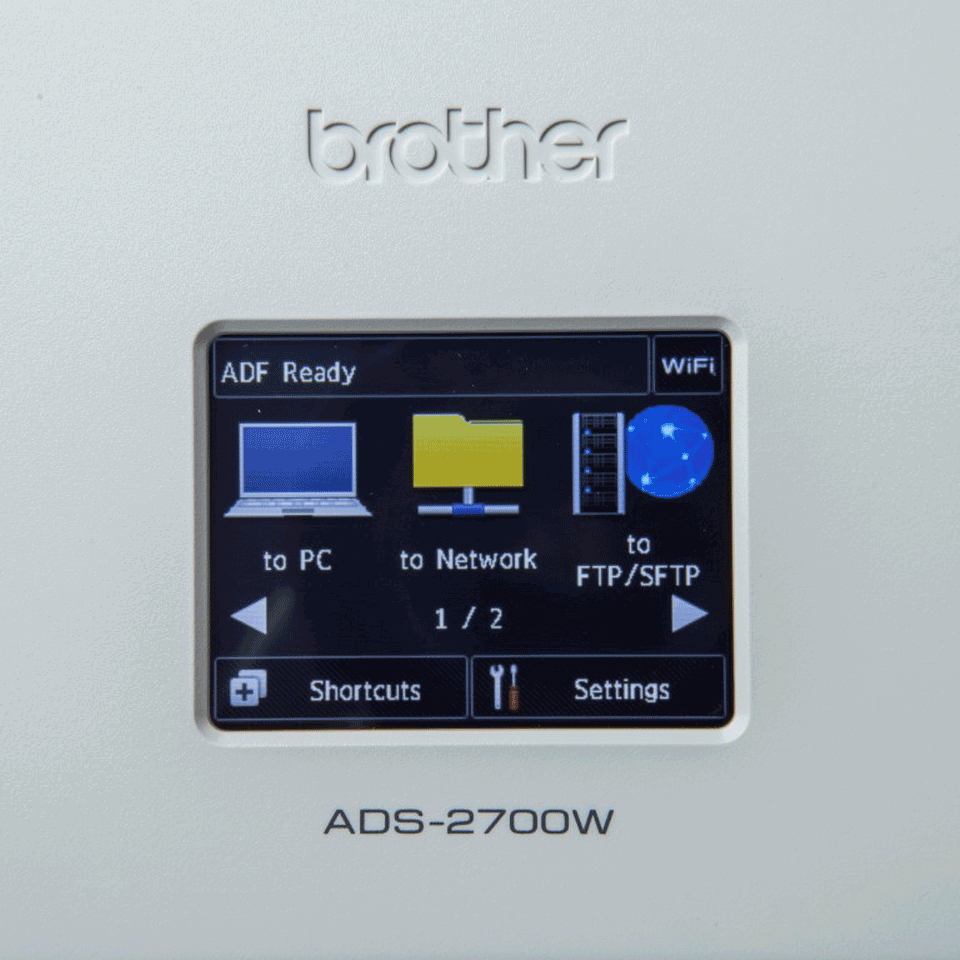

Built-in display	Yes
Product colour	Black, White
Display	LCD
Display diagonal	7.11 cm (2.8")
Touchscreen	Yes

Performance

Specification	Value
Sensor type	Dual CIS
Scan file formats	TIFF
Scan to	E-mail, E-mail Server, FTP, File, Image, OCR, USB
Scan drivers	ICA, SANE, TWAIN, WIA
Scanning noise level	62 dB
Internal memory	512 MB

Input capacity

Specification	Value
Auto document feeder (ADF) input capacity	50 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Scanning media types supported	Recycled paper, Thick paper, Thin paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Legal	Yes
Letter	Yes
Auto Document Feeder (ADF) media weight	50 - 209 g/m²
Maximum scan width	21.6 cm
Maximum scan length	35.6 cm

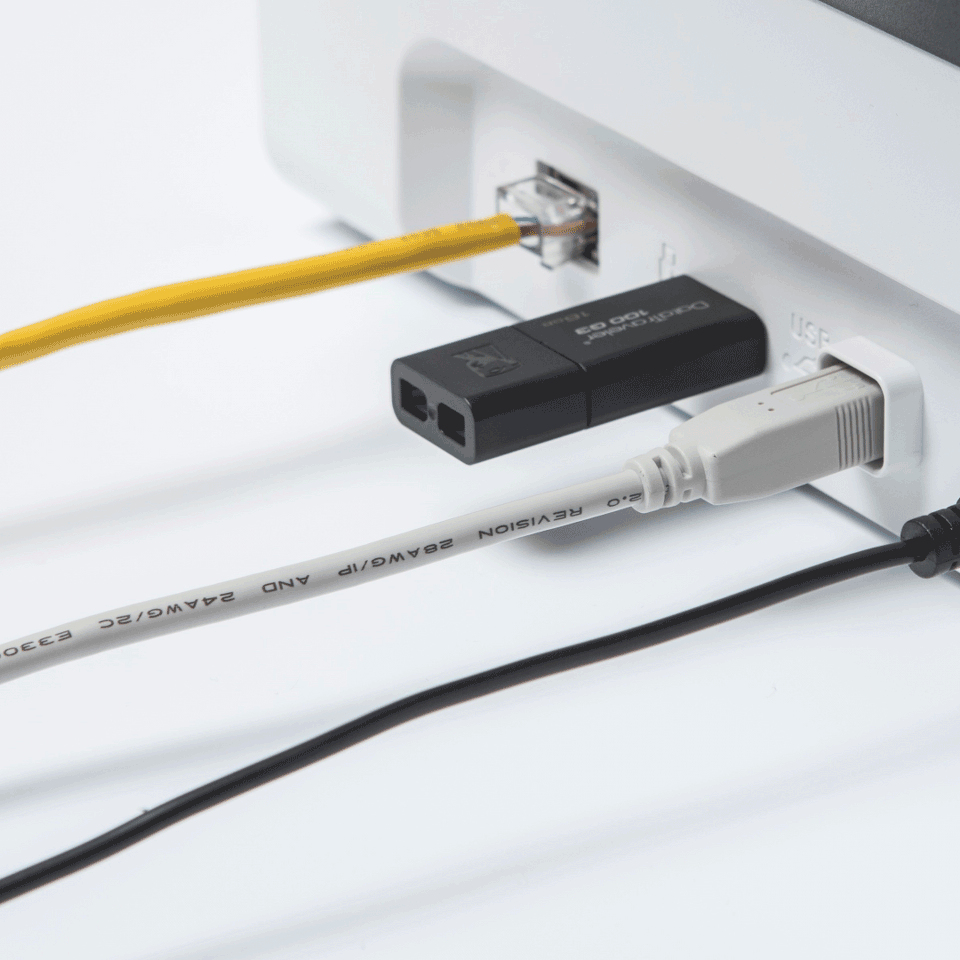

Ports & interfaces

Specification	Value
USB port	Yes
USB version	2.0
Standard interfaces	Ethernet, USB 2.0, Wireless LAN

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Mobile printing technologies	Brother iPrint & Scan
Supported network protocols	ARP, RARP, DHCP, APIPA (Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, SMTP Client, FTP Client, LDAP Client, CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, ICMP, Web Services (Scan), SNTP Client

Power

Specification	Value
Power consumption (typical)	23 W
Power supply type	AC
Power consumption (standby)	6.6 W
Power consumption (off)	0.1 W
Power consumption (sleep)	1 W

Weight & dimensions

Specification	Value
Width	250 mm
Depth	290 mm
Height	390 mm
Weight	3.01 kg

Packaging data

Specification	Value
Package width	393 mm
Package depth	245 mm
Package height	286 mm
Package weight	3.93 kg

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Quick start guide	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	0 - 40 °C

Other features

Specification	Value
Spare part retention	5 year(s)

Technical details

Specification	Value
Pallet type	800 x 1200 mm

Logistics data

Specification	Value
Products per pallet	40 pc(s)
Country of origin	China
Harmonized System (HS) code	84716070
Layers per pallet	5 pc(s)
Master (outer) cases per pallet	40 pc(s)
Master (outer) cases per pallet layer	8 pc(s)
Pallet gross height	15.8 cm
Pallet gross weight	174 kg
