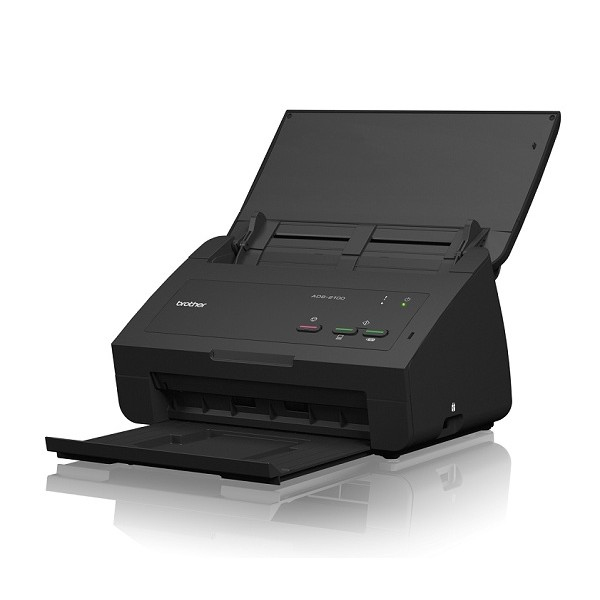

Brother ADS-2100 scanner Sheet-fed scanner
600 x 600 DPI A4 Black
Model ADS-2100EAN 6042015022404
65 specifications
- Memory256 MB
- Weight3.3 kg
- ColourBlack
- Maximum scan size215.9 x 863 mm
- Scanner typeSheet-fed scanner
- Sensor typeCMOS dual CIS
Overview
- Memory
- 256 MB
- Weight
- 3.3 kg
- Colour
- Black
- Maximum scan size
- 215.9 x 863 mm
- Scanner type
- Sheet-fed scanner
- Sensor type
- CMOS dual CIS
- Brand
- Brother
- Category
- Scanner
- Model
- ADS-2100
- Part number
- ADS-2100
- EAN / UPC
- 6042015022404, 1012015022242, 1022015024207, 4977766709781 +5 more
- Also known as
- Brother ADS-2100 scanner Sheet-fed scanner 600 x 600 DPI A4 Black
Specifications
65 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 863 mm |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| Film scanning | No |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 24 ppm |
| ADF scan speed (colour, A4) | 24 ppm |
| Duplex ADF scan speed (b/w, A4) | 48 ipm |
| Duplex ADF scan speed (colour, A4) | 48 ipm |
Design
| Specification | Value |
|---|---|
| Scanner type | Sheet-fed scanner |
| Product colour | Black |
| Touchscreen | No |
Performance
| Specification | Value |
|---|---|
| Sensor type | CMOS dual CIS |
| Scan file formats | JPG, PDF, TIFF |
| Daily duty cycle (max) | 500 pages |
| Scan to | E-mail, File, Image, OCR, USB |
| Scan drivers | ISIS, TWAIN, WIA |
| Scanning noise level | 62.5 dB |
| Internal memory | 256 MB |
| Processor frequency | 400 MHz |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 50 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper, Business Card, Plastic Card |
| Multi feed detection | Yes |
| ISO A-series sizes (A0...A9) | A4, A5, A6, A7, A8 |
| Legal | Yes |
| Letter | Yes |
| Auto Document Feeder (ADF) media weight | 52 - 200 g/m² |
| Maximum scan area (ADF) | 215.9 x 863 mm |
| Minimum scan area (ADF) | 51 x 70 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18 W |
| Power supply type | AC |
| Power consumption (standby) | 7 W |
| Power consumption (off) | 0.3 W |
| AC input frequency | 50 Hz |
| Power consumption (PowerSave) | 1.5 W |
| Input voltage | 220-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 179 mm |
| Height | 299 mm |
| Weight | 3.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 383 x 291 x 285 mm |
| Package weight | 5.4 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| USB required | Yes |
| Windows operating systems supported | Yes |
Other features
| Specification | Value |
|---|---|
| Network ready | No |
| Image formats supported | JPG, TIF |
| Maximum output capacity | 50 sheets |
Technical details
| Specification | Value |
|---|---|
| Pallet type | 800 x 1200 mm |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 40 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet | 40 pc(s) |
| Master (outer) cases per pallet layer | 8 pc(s) |
| Pallet gross height | 15.8 cm |
| Pallet gross weight | 204.8 kg |
