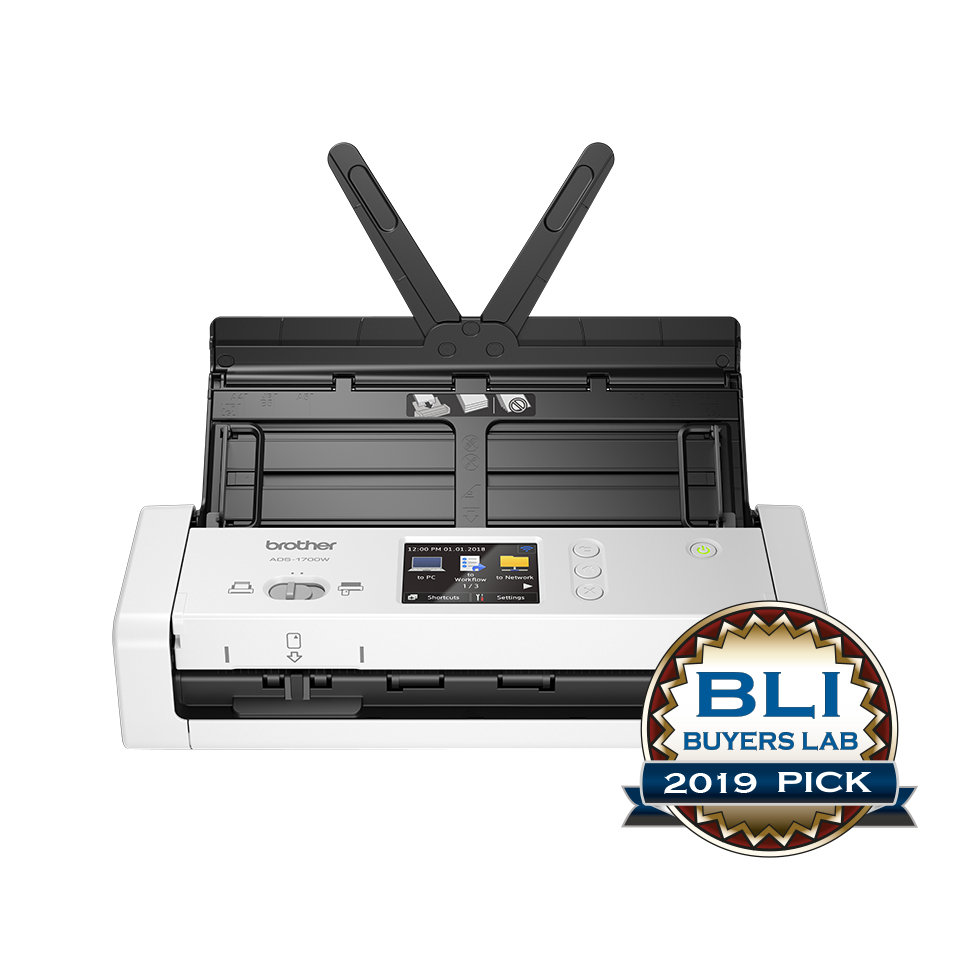

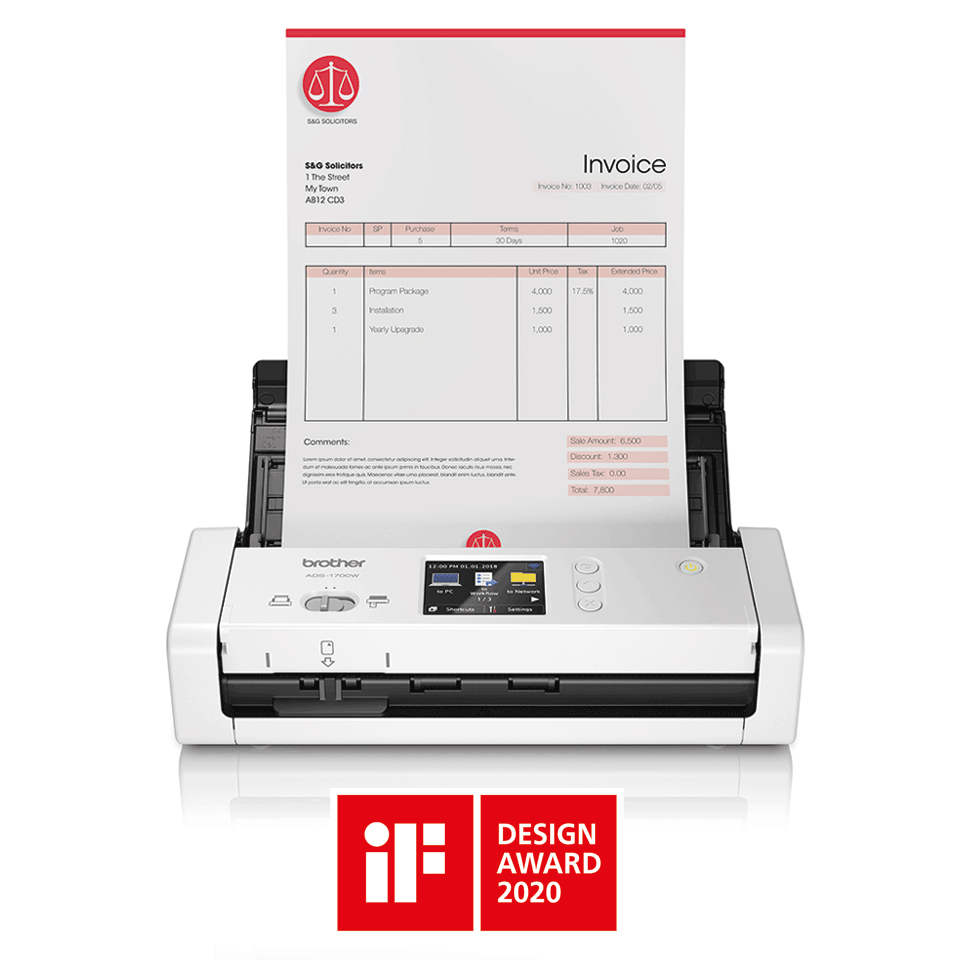

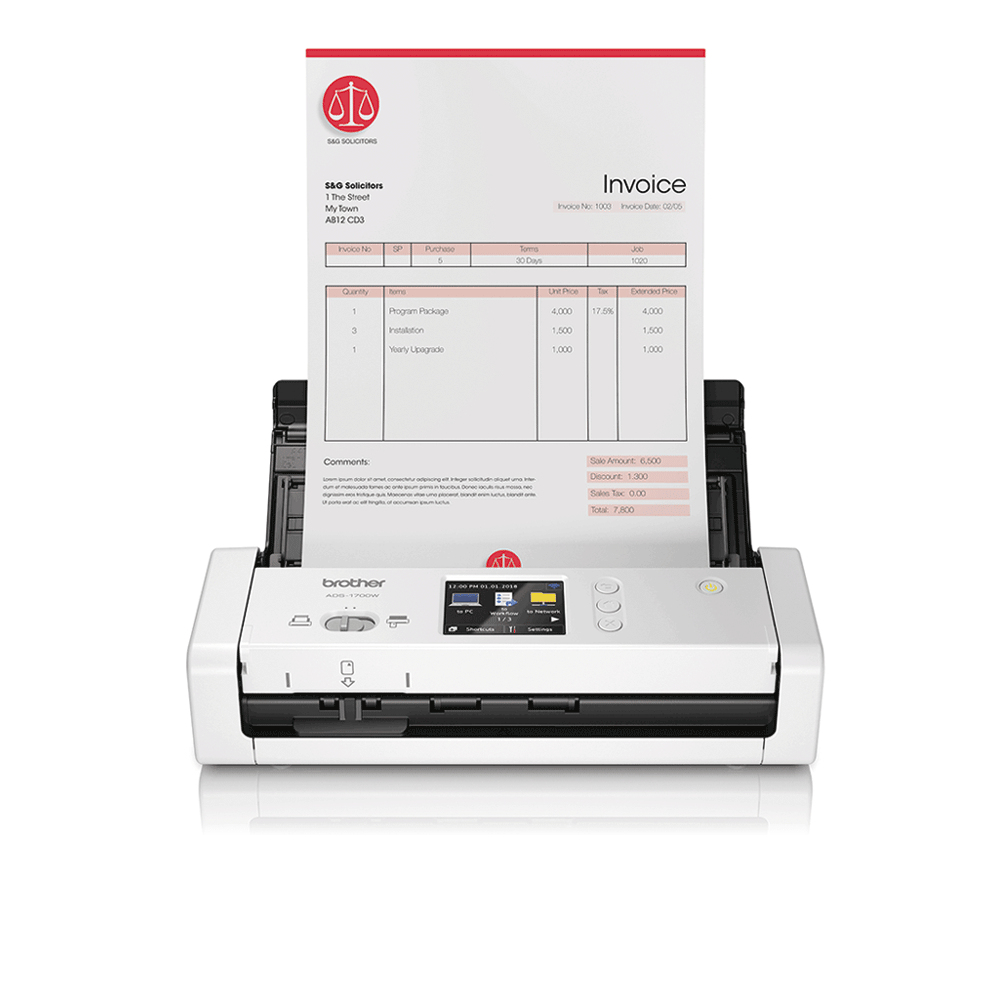

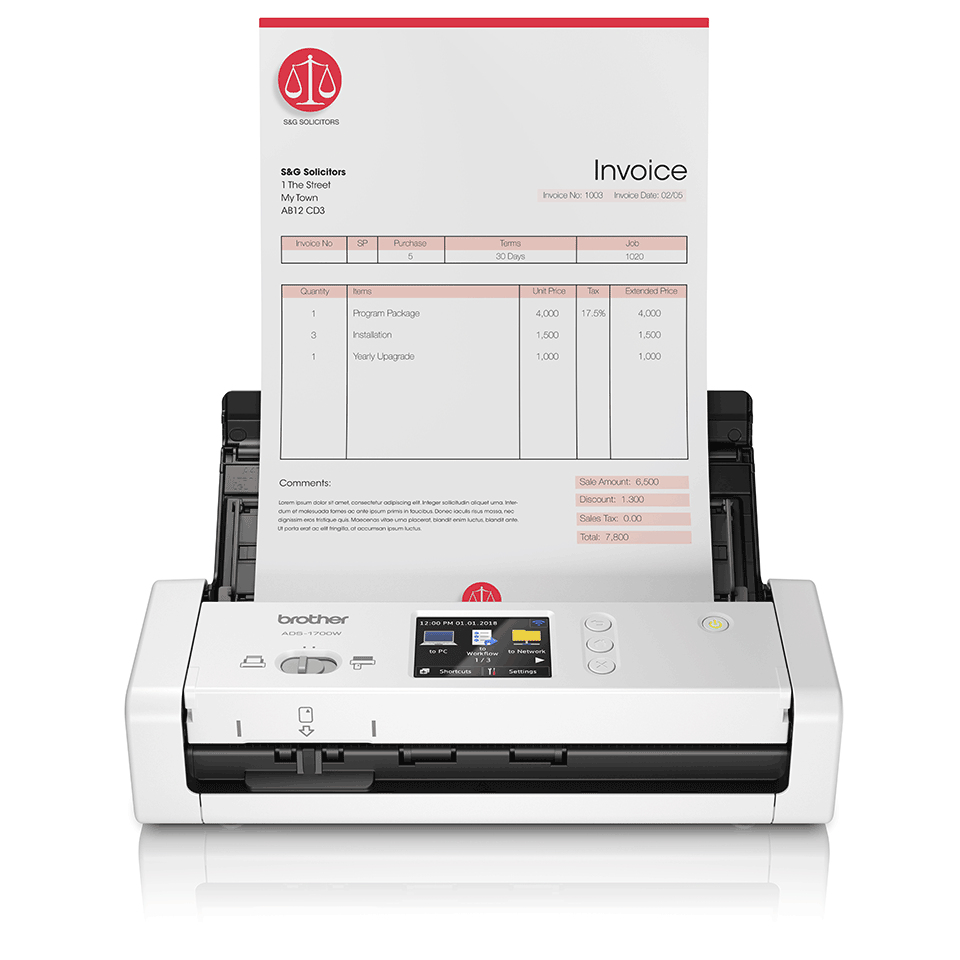

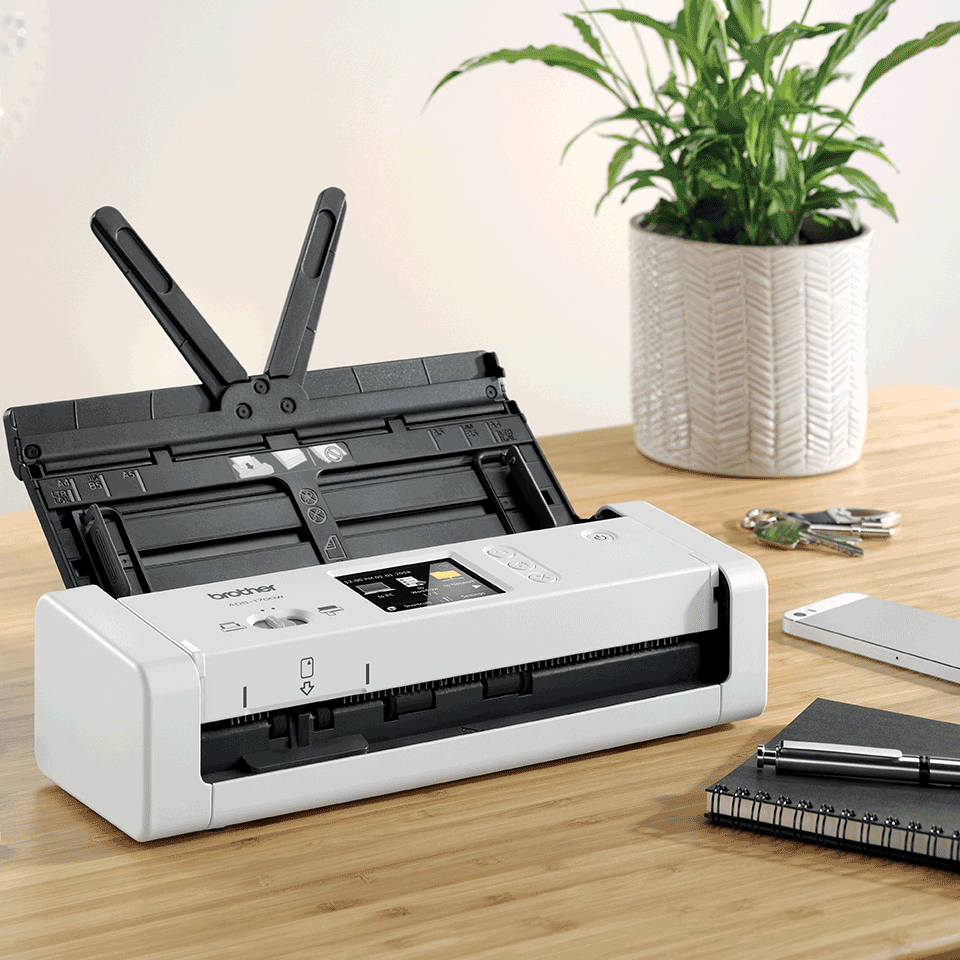

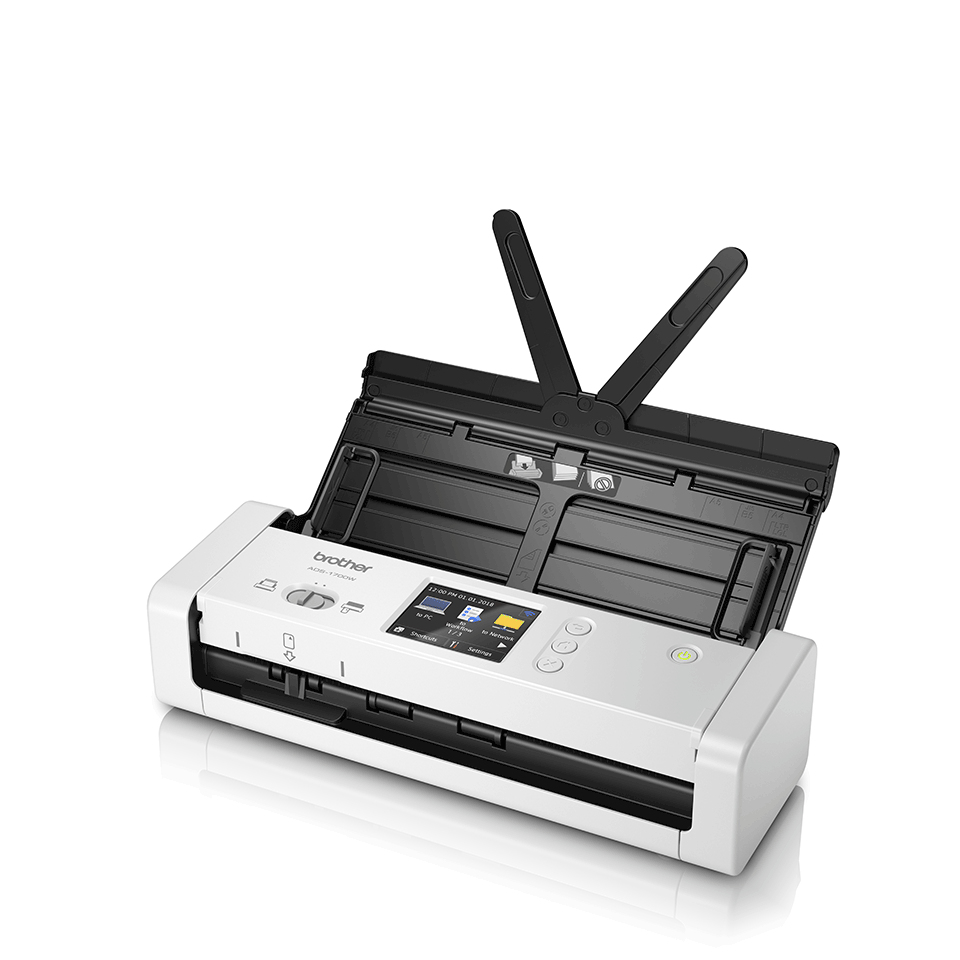

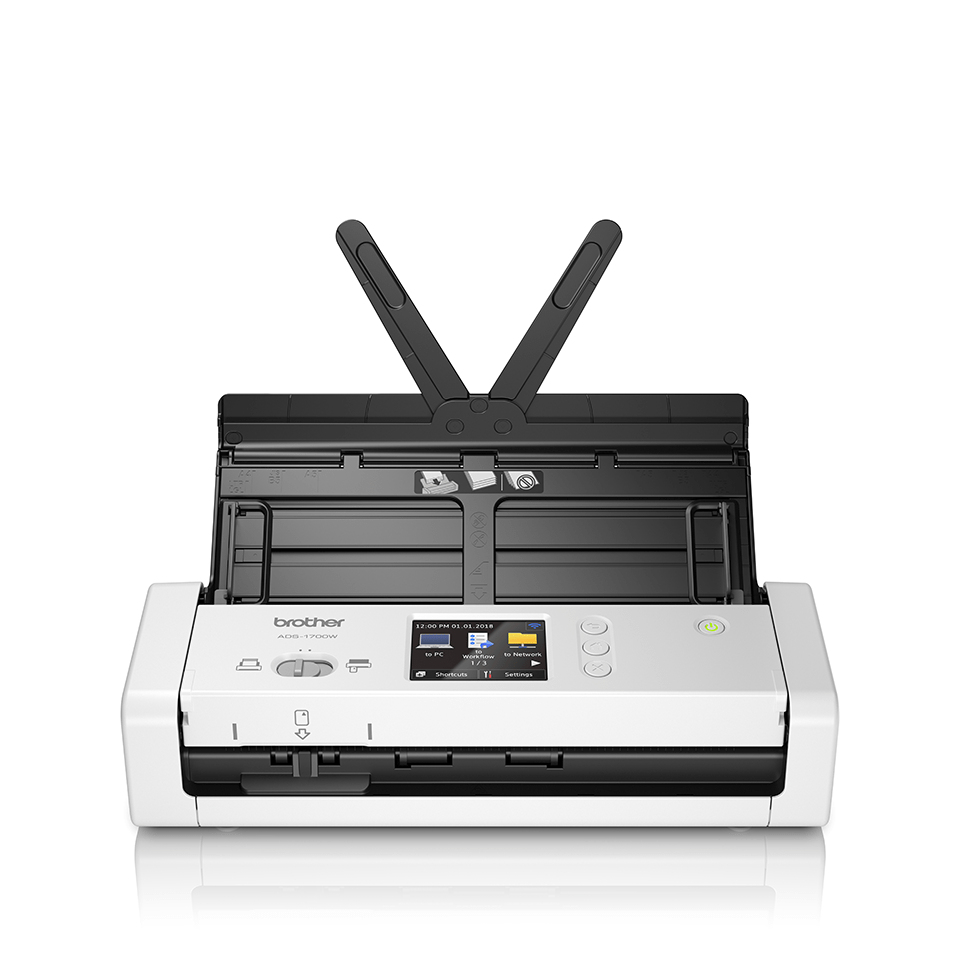

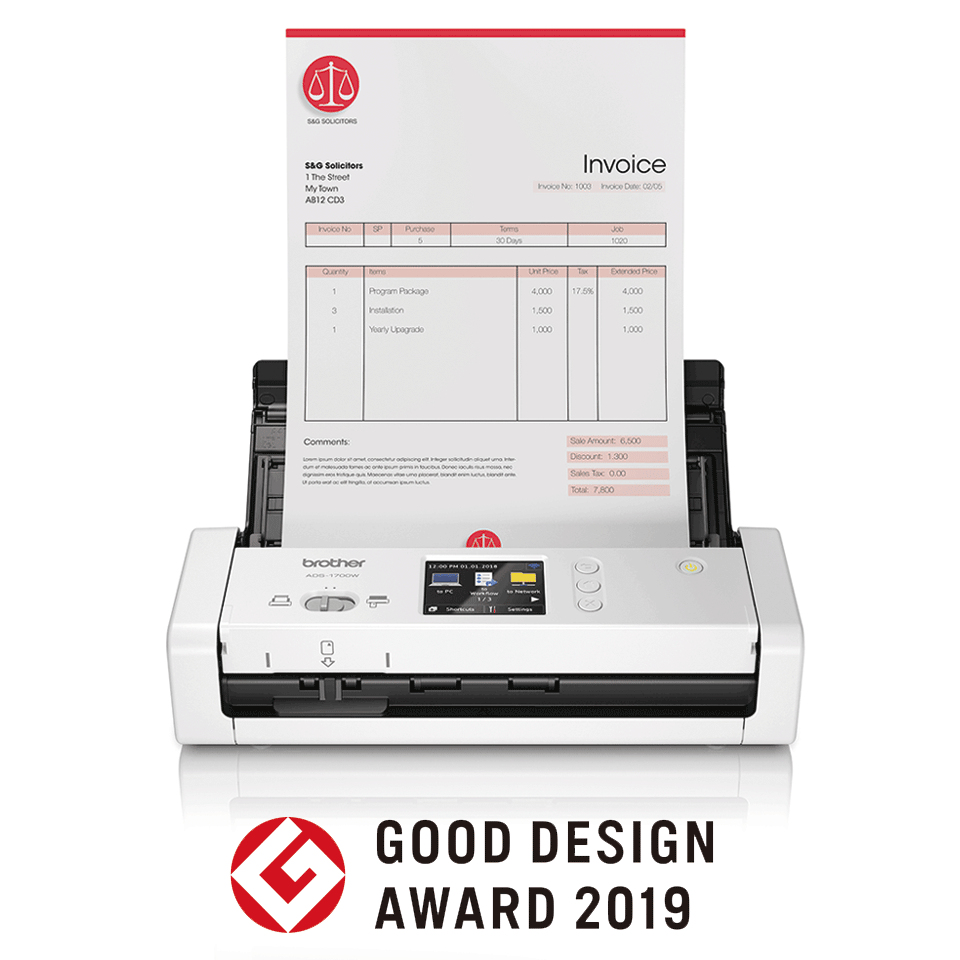

Brother ADS-1700W scanner ADF scanner

ADS-1700W scanner ADF scanner

600 x 600 DPI A4 Black, White

Model ADS-1700WEAN 012502652007

83 specifications

Display7.11 cm (2.8")
Memory512 MB
Weight1.62 kg
ColourBlack, White
Maximum scan size215.9 x 863 mm
Scanner typeADF scanner

See all specifications

Overview

Display: 7.11 cm (2.8")
Memory: 512 MB
Weight: 1.62 kg
Colour: Black, White
Maximum scan size: 215.9 x 863 mm
Scanner type: ADF scanner

Brand: Brother
Category: Scanner
Model: ADS-1700W
Part number: ADS-1700W
EAN / UPC: 012502652007, 4977766792202, 4977766792219, 4977766792233
Also known as: Brother ADS-1700W scanner ADF scanner 600 x 600 DPI A4 Black, White

Specifications

83 specifications in 17 groups

Scanning

Specification	Value
Maximum scan size	215.9 x 863 mm
Enhanced scan resolution	1200 x 1200 DPI
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	48 bit
Output colour depth	24 bit
Greyscale levels	256
ADF scan speed (b/w, A4)	25 ppm
ADF scan speed (colour, A4)	25 ppm

Design

Specification	Value
Scanner type	ADF scanner
Built-in display	Yes
Product colour	Black, White
Display	LCD
Display diagonal	7.11 cm (2.8")
Touchscreen	Yes
Colour display	Yes

Performance

Specification	Value
Sensor type	Dual CIS
Scan file formats	JPEG, PDF, TIFF
Daily duty cycle (max)	1000 pages
Maximum duty cycle	10000 pages per month
Scan to	E-mail, E-mail Server, FTP, File, Image, OCR, USB
Barcode reader	Yes
Scan drivers	ICA, SANE, TWAIN, WIA
Scanning noise level	62 dB
Sound pressure level (max)	50 dB
Internal memory	512 MB

Input capacity

Specification	Value
Auto document feeder (ADF) input capacity	20 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4

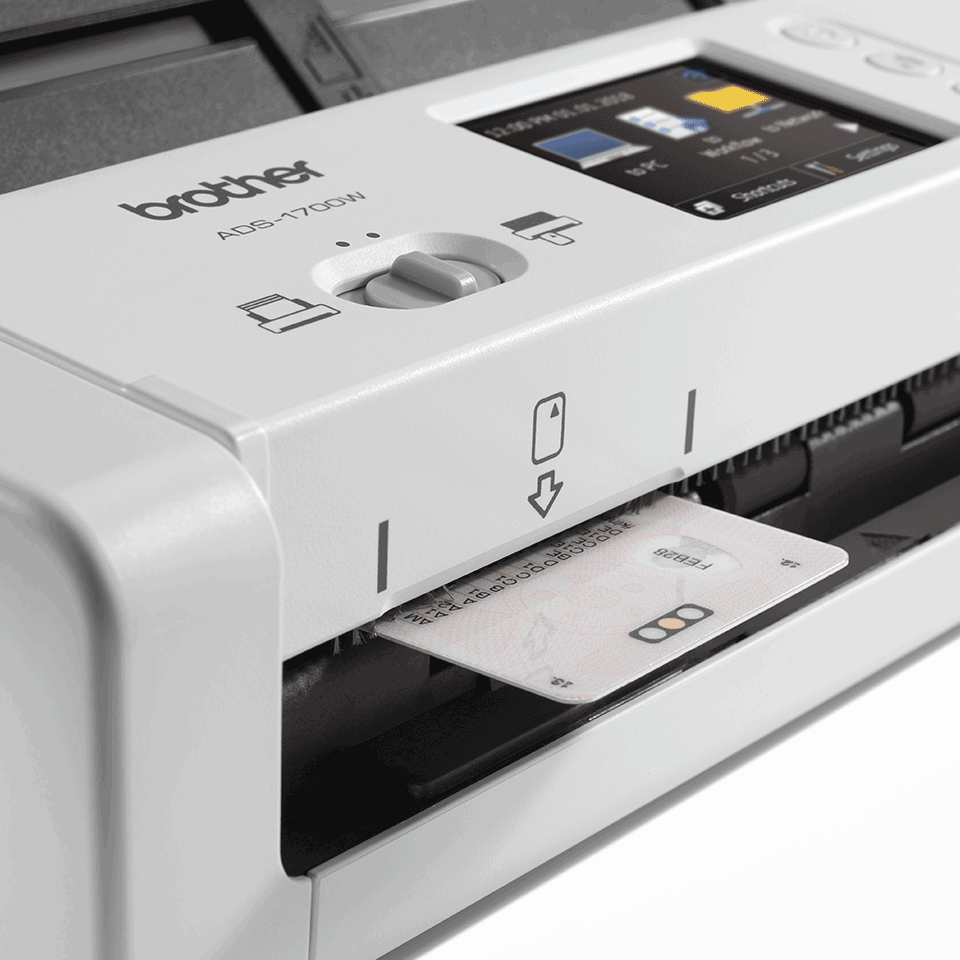

Scanning media types supported	Business Card, Plain paper, Plastic Card, Thick paper
ISO A-series sizes (A0...A9)	A4
Card thickness (max)	1.24 mm
Auto Document Feeder (ADF) media weight	51 - 200 g/m²
Maximum scan width	21.6 cm
Maximum scan length	86.3 cm

Ports & interfaces

Specification	Value
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector type	Micro-USB, USB Type-B
Standard interfaces	USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
Wi-Fi Direct	Yes
Supported network protocols	DHCP, APIPA (Auto IP), WINS/ NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, SMTP Client, FTP/SFTP Client, CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, Web Services(Scan), ICMP, SNTP Client, RA

Power

Specification	Value
Power consumption (typical)	9 W
Power supply type	AC
Power consumption (standby)	4.5 W
Power consumption (off)	0.1 W
AC input frequency	50 - 60 Hz
Sleep mode	Yes
Input voltage	100 - 240 V
Power consumption (sleep)	1.6 W

Weight & dimensions

Specification	Value
Width	157 mm
Depth	200 mm
Height	380 mm
Weight	1.62 kg

Packaging data

Specification	Value
Package width	380 mm
Package depth	157 mm
Package height	200 mm
Package weight	2.29 kg

Packaging content

Specification	Value
Manual	Yes
AC adapter included	Yes
Cables included	AC, USB
Quick start guide	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

System requirements

Specification	Value
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Other features

Specification	Value
Spare part retention	5 year(s)
Web-based management	Yes
Certification	GS Mark

Technical details

Specification	Value
Pallet type	1200 x 1000 mm

Logistics data

Specification	Value
Products per pallet	126 pc(s)
Country of origin	China
Harmonized System (HS) code	84716070
Layers per pallet	7 pc(s)
Master (outer) cases per pallet	42 pc(s)
Master (outer) cases per pallet layer	6 pc(s)
Pallet gross height	17.2 cm
Pallet gross weight	320.4 kg
