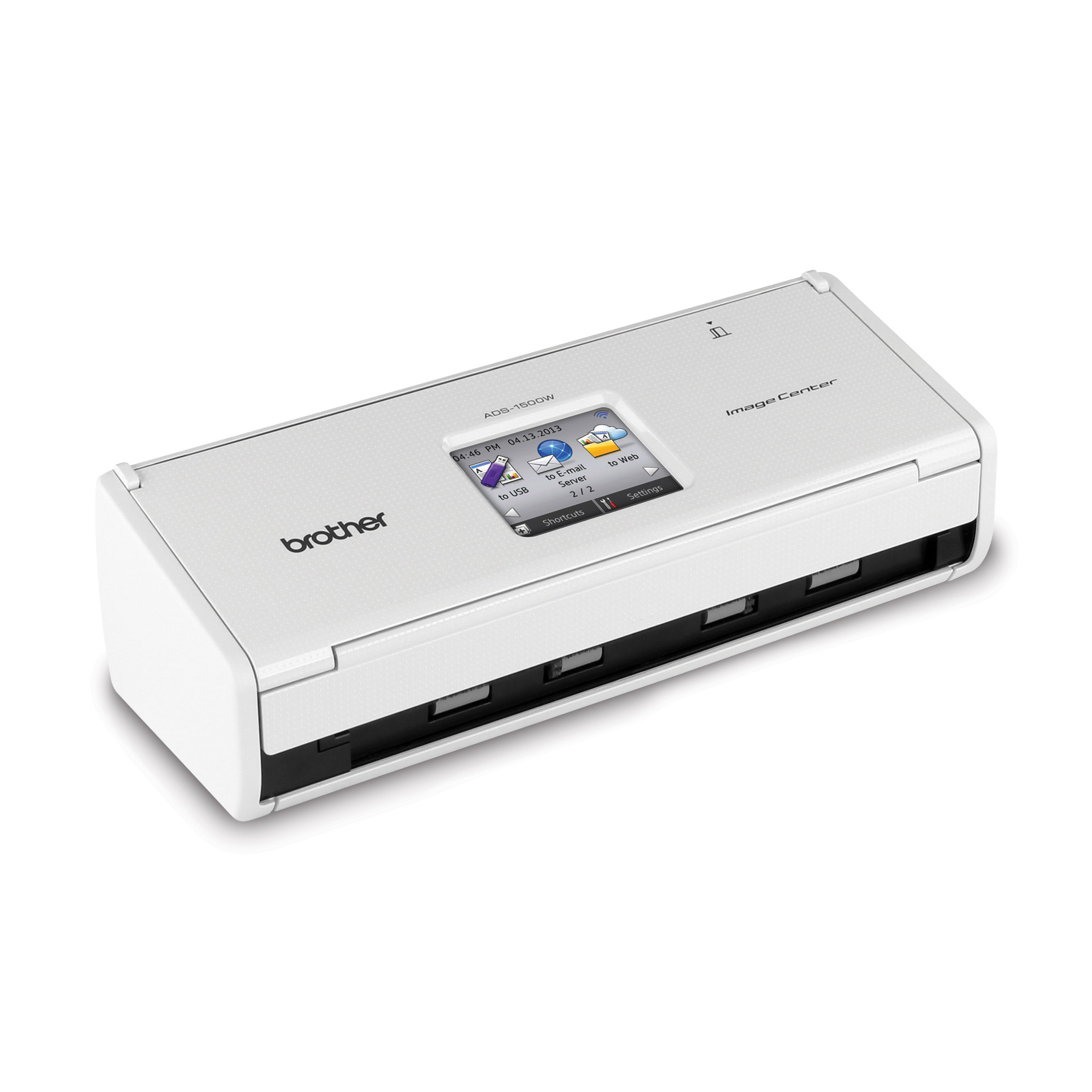

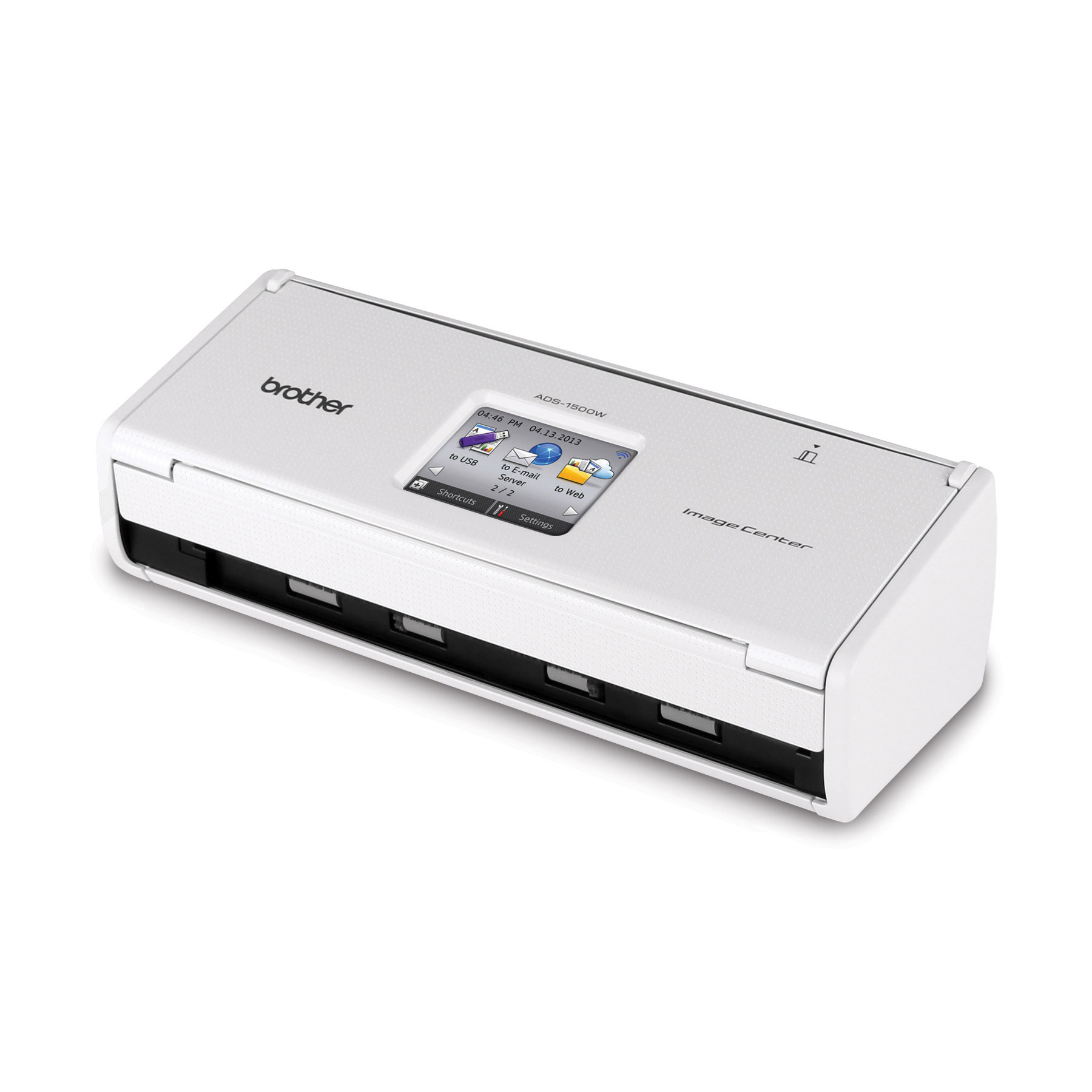

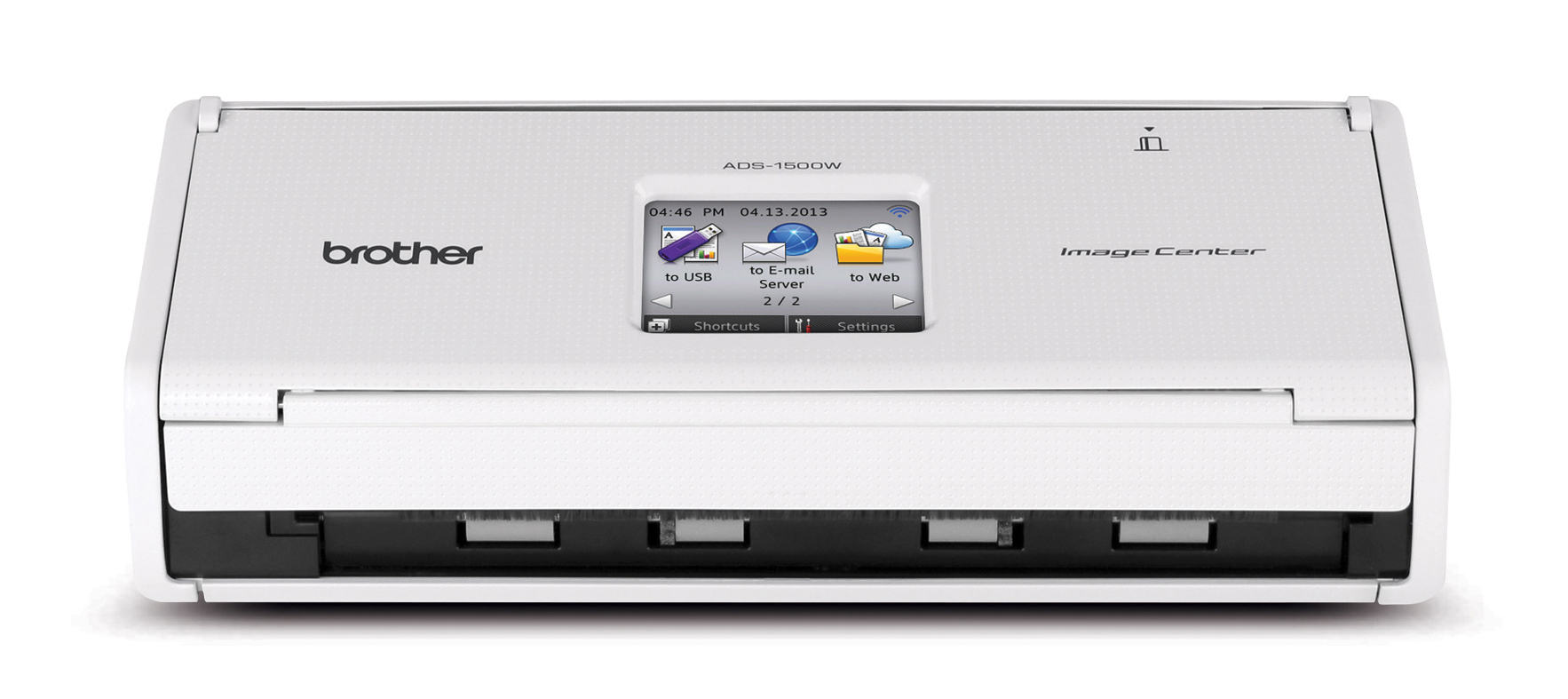

Brother ADS-1500W scanner ADF scanner
600 x 600 DPI Black, White
Model ADS-1500WEAN 125026359564
55 specifications
- Display6.86 cm (2.7")
- Weight1.59 kg
- ColourBlack, White
- Maximum scan size215.9 x 863.6 mm
- Scanner typeADF scanner
- Sensor typeDual CIS
Overview
- Display
- 6.86 cm (2.7")
- Weight
- 1.59 kg
- Colour
- Black, White
- Maximum scan size
- 215.9 x 863.6 mm
- Scanner type
- ADF scanner
- Sensor type
- Dual CIS
- Brand
- Brother
- Category
- Scanner
- Model
- ADS-1500W
- Part number
- ADS-1500W
- EAN / UPC
- 125026359564
- Also known as
- Brother ADS-1500W scanner ADF scanner 600 x 600 DPI Black, White
Specifications
55 specifications in 15 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 215.9 x 863.6 mm |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 24 bit |
| Output colour depth | 8 bit |
| Film scanning | No |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 18 ppm |
| ADF scan speed (colour, A4) | 18 ppm |
| Duplex ADF scan speed (b/w, A4) | 18 ipm |
| Duplex ADF scan speed (colour, A4) | 18 ipm |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Product colour | Black, White |
| Display | LCD |
| Display diagonal | 6.86 cm (2.7") |
| Touchscreen | Yes |
Performance
| Specification | Value |
|---|---|
| Sensor type | Dual CIS |
| Daily duty cycle (max) | 500 pages |
| Scan to | E-mail, E-mail Server, File, FTP, Image, OCR, USB |
| Scan drivers | SANE, ICA, ISIS, TWAIN, WIA |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 20 sheets |
Paper handling
| Specification | Value |
|---|---|
| Scanning media types supported | Business Card, Photo paper, Plain paper, Plastic Card |
| Maximum scan area (ADF) | 215.9 x 863.6 mm |
| Minimum scan area (ADF) | 50.8 x 70.1 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 1.1, USB 2.0, Wireless LAN |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Mobile printing technologies | Brother iPrint & Scan |
| Supported network protocols | ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, LLMNR, Custom Raw Port/Port9100, FTP Client/Server, SNMPv1/v2c, HTTP/HTTPS, TFTP Client/Server, ICMP, SNTP Client |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 14 W |
| Power supply type | AC |
| Power consumption (standby) | 4 W |
| Power consumption (PowerSave) | 1.5 W |
| Input voltage | 110-220 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 284.4 mm |
| Depth | 104.1 mm |
| Height | 83.8 mm |
| Weight | 1.59 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 381 mm |
| Package depth | 170.1 mm |
| Package height | 205.7 mm |
| Package weight | 2.59 kg |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Nuance PDF Converter Professional 8 Nuance PaperPort 12SE Presto! PageManager 9 Presto! BizCard 6 Control Center 4 Control Center 2 BR-Receipts |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
System requirements
| Specification | Value |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 15 - 85% |
Other features
| Specification | Value |
|---|---|
| Online services supported | Box, Dropbox, Evernote, Facebook, Flickr, Google Drive, Picasa, Sky Drive |
