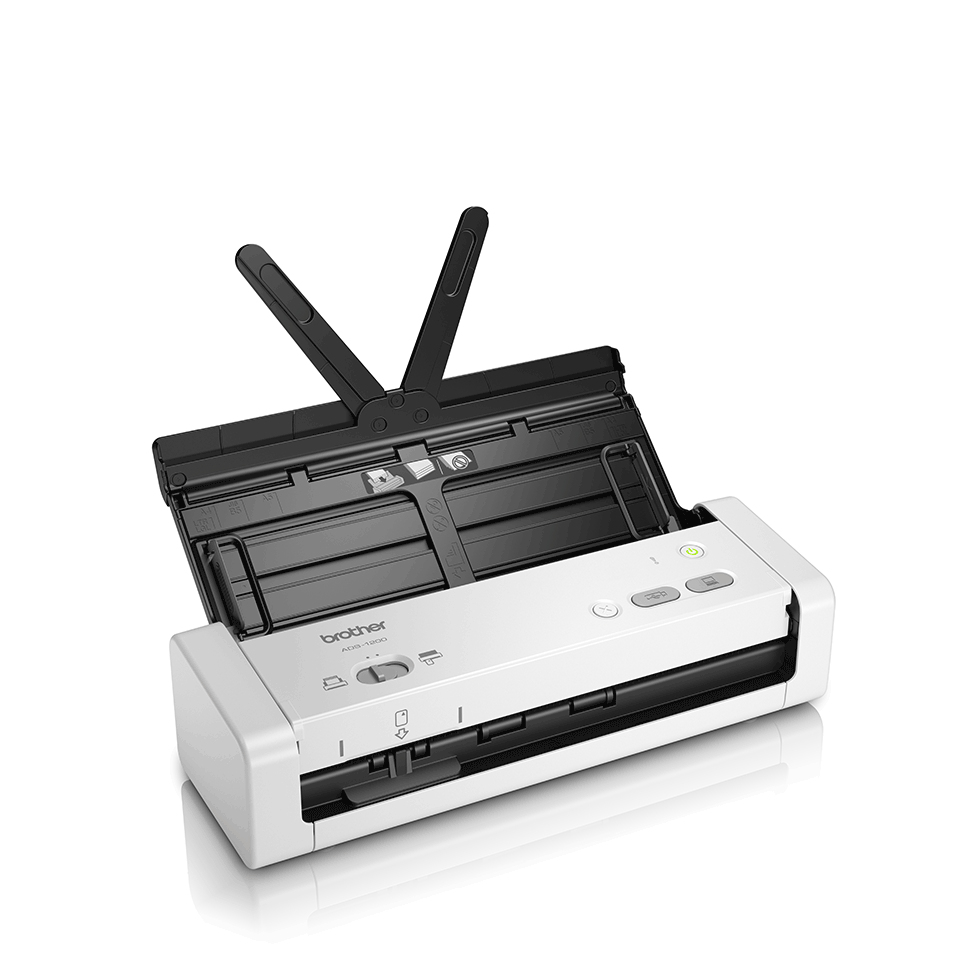

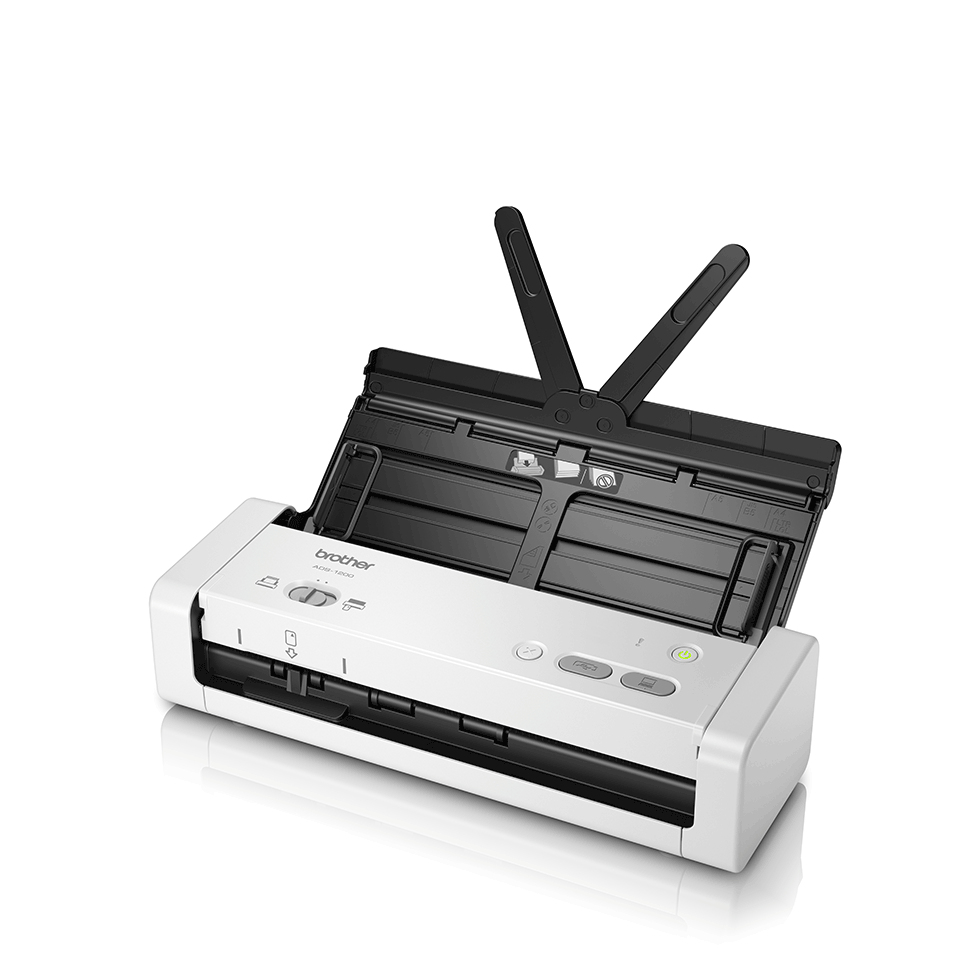

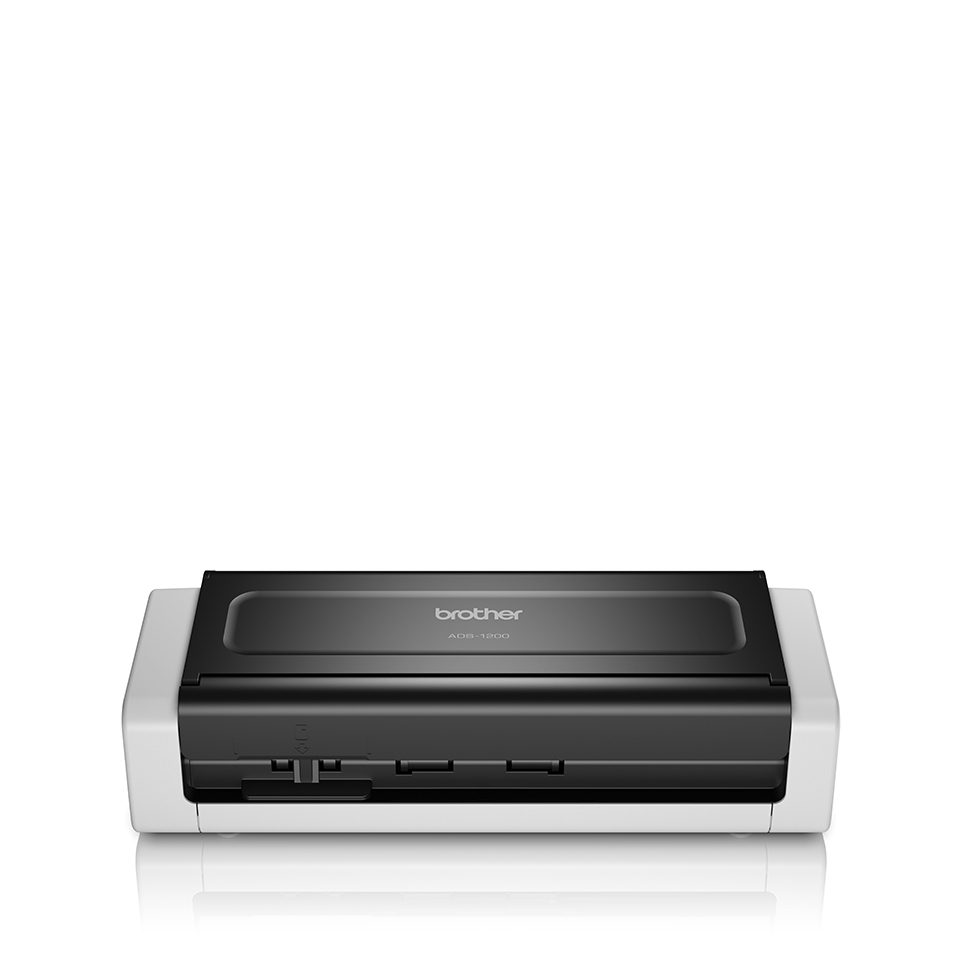

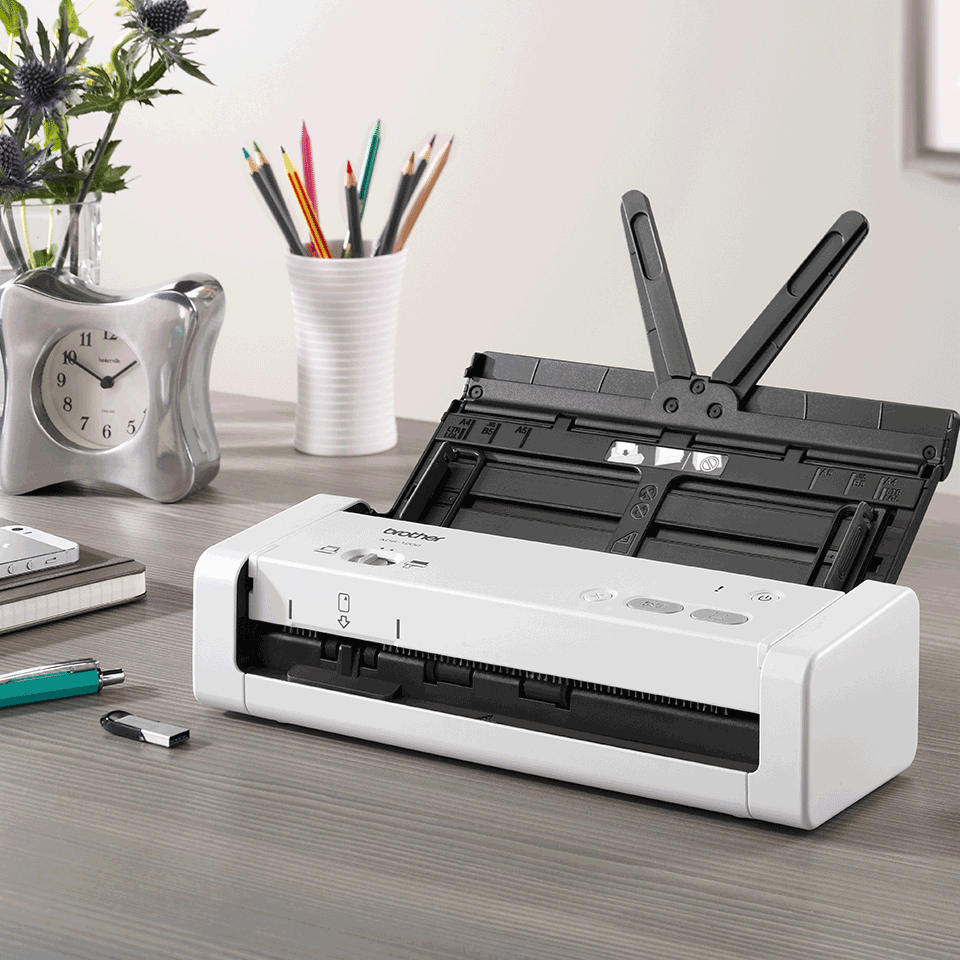

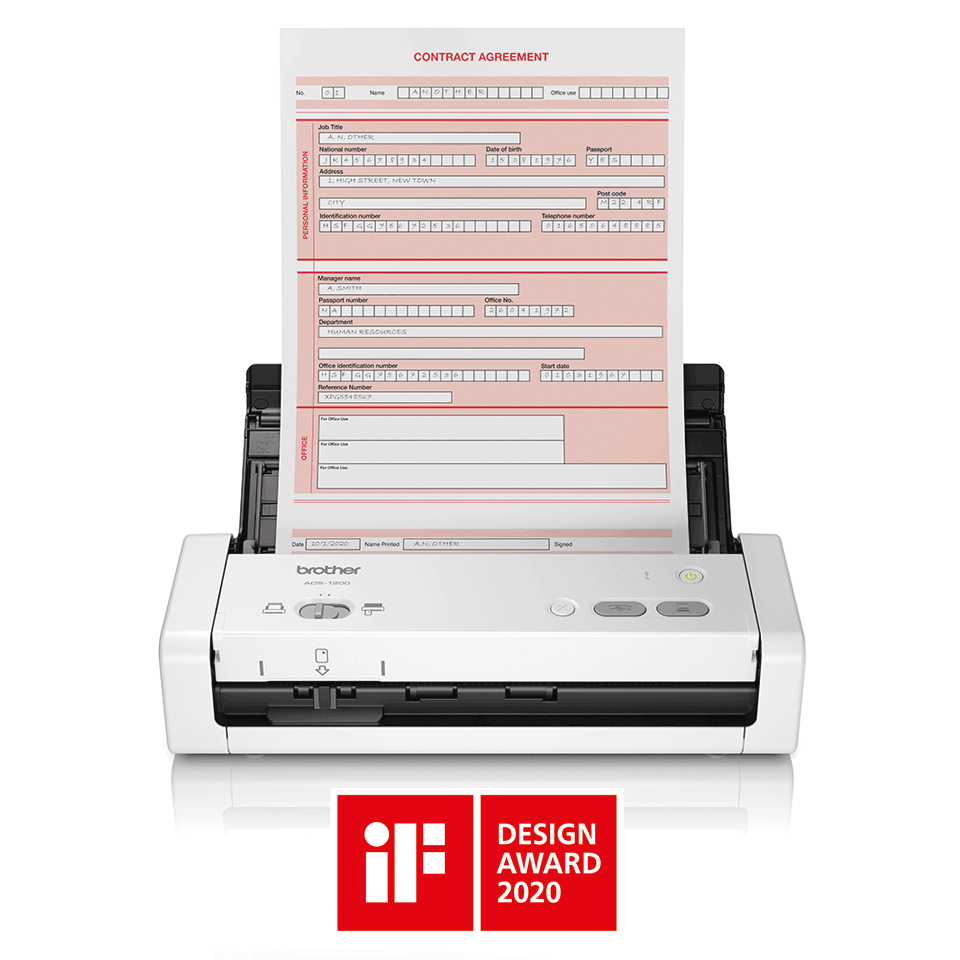

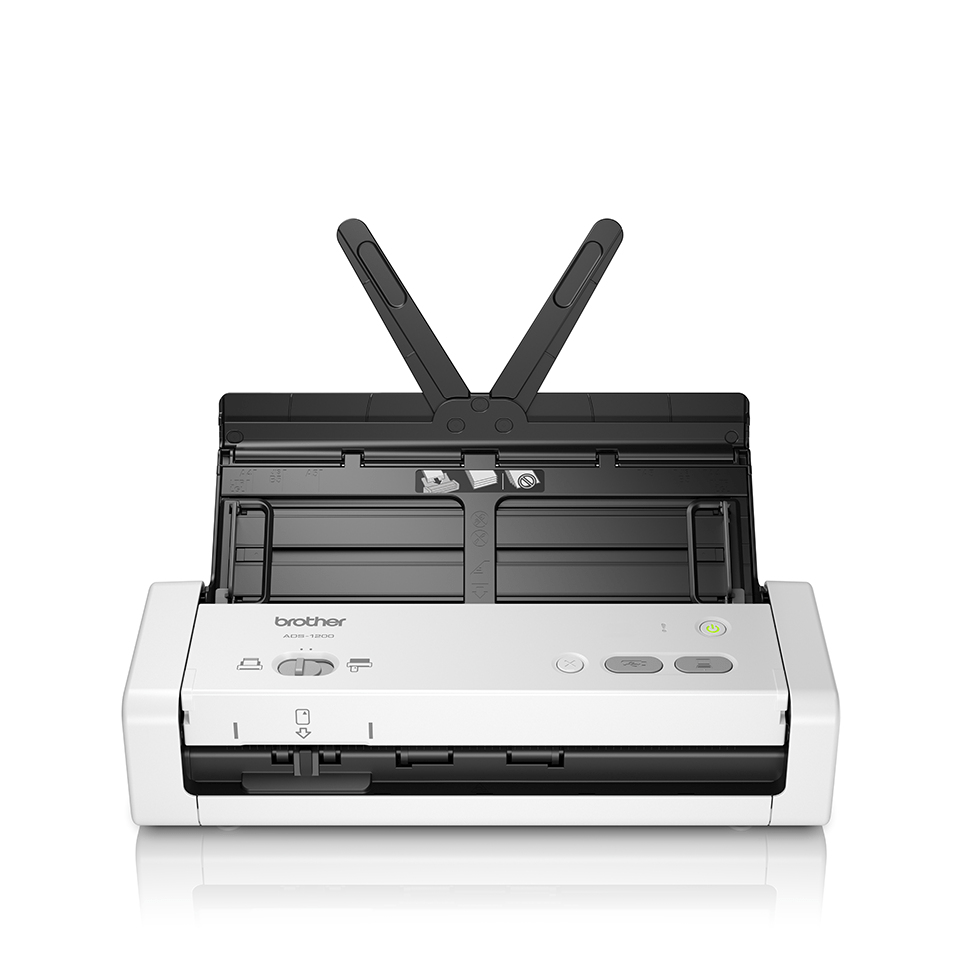

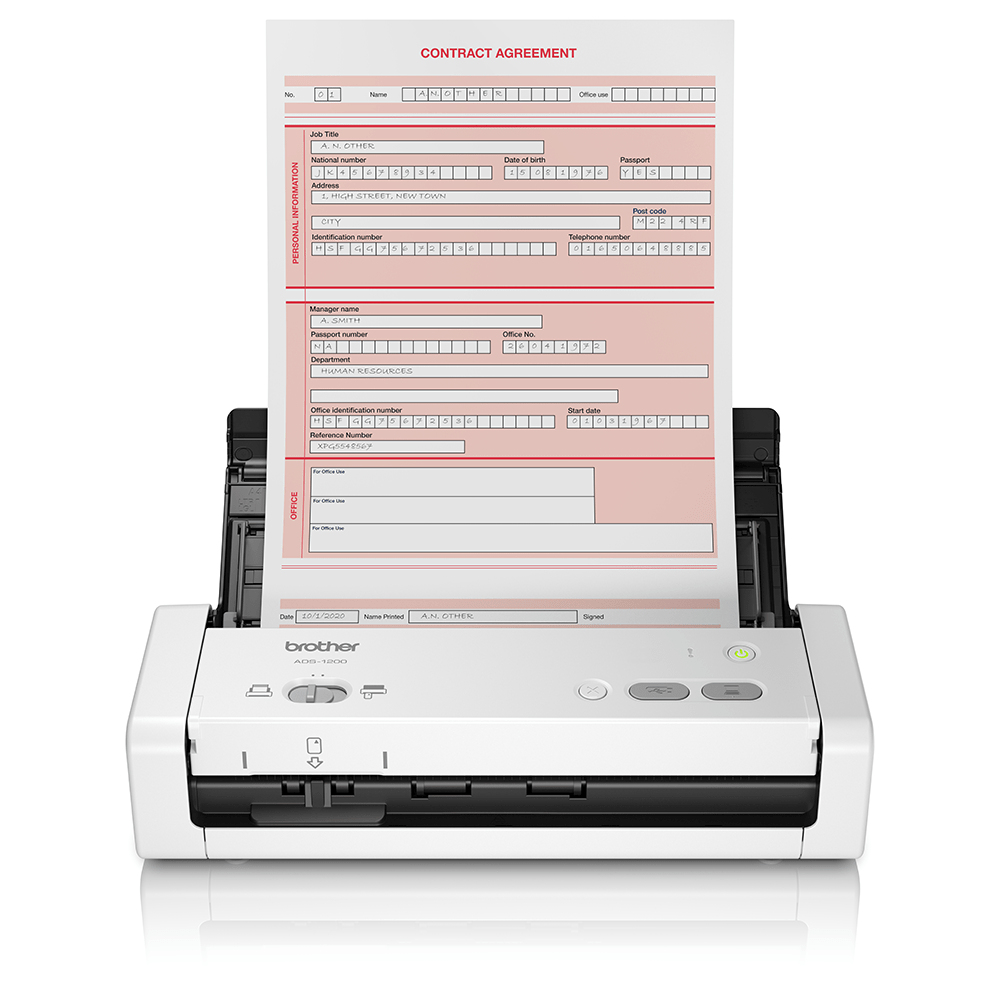

Brother ADS-1200 scanner ADF scanner

600 x 600 DPI A4 Black, White

Model ADS-1200EAN 012502651956

68 specifications

Memory256 MB
Weight1.56 kg
ColourBlack, White
Maximum scan size215 x 863 mm
Scanner typeADF scanner
Sensor typeDual CIS

See all specifications

Overview

Memory: 256 MB
Weight: 1.56 kg
Colour: Black, White
Maximum scan size: 215 x 863 mm
Scanner type: ADF scanner
Sensor type: Dual CIS

Brand: Brother
Category: Scanner
Model: ADS-1200
Part number: ADS-1200
EAN / UPC: 012502651956, 4977766792134, 4977766792141
Also known as: Brother ADS-1200 scanner ADF scanner 600 x 600 DPI A4 Black, White

Specifications

68 specifications in 16 groups

Scanning

Specification	Value
Maximum scan size	215 x 863 mm
Enhanced scan resolution	1200 x 1200 DPI
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	48 bit
Output colour depth	24 bit
Greyscale levels	256
ADF scan speed (b/w, A4)	25 ppm
ADF scan speed (colour, A4)	25 ppm
Black/white scanning colour modes	Grayscale, Monochrome

Design

Specification	Value
Scanner type	ADF scanner
Built-in display	No
Product colour	Black, White

Performance

Specification	Value
Sensor type	Dual CIS
Light source	LED
Scan file formats	JPG, PDF, TIFF
Daily duty cycle (max)	1000 pages
Maximum duty cycle	10000 pages per month
Scan to	E-mail, File, Image, OCR, USB
Scan drivers	ICA, SANE, TWAIN, WIA
Scanning noise level	62 dB
Internal memory	256 MB

Input capacity

Specification	Value
Auto document feeder (ADF) input capacity	20 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4

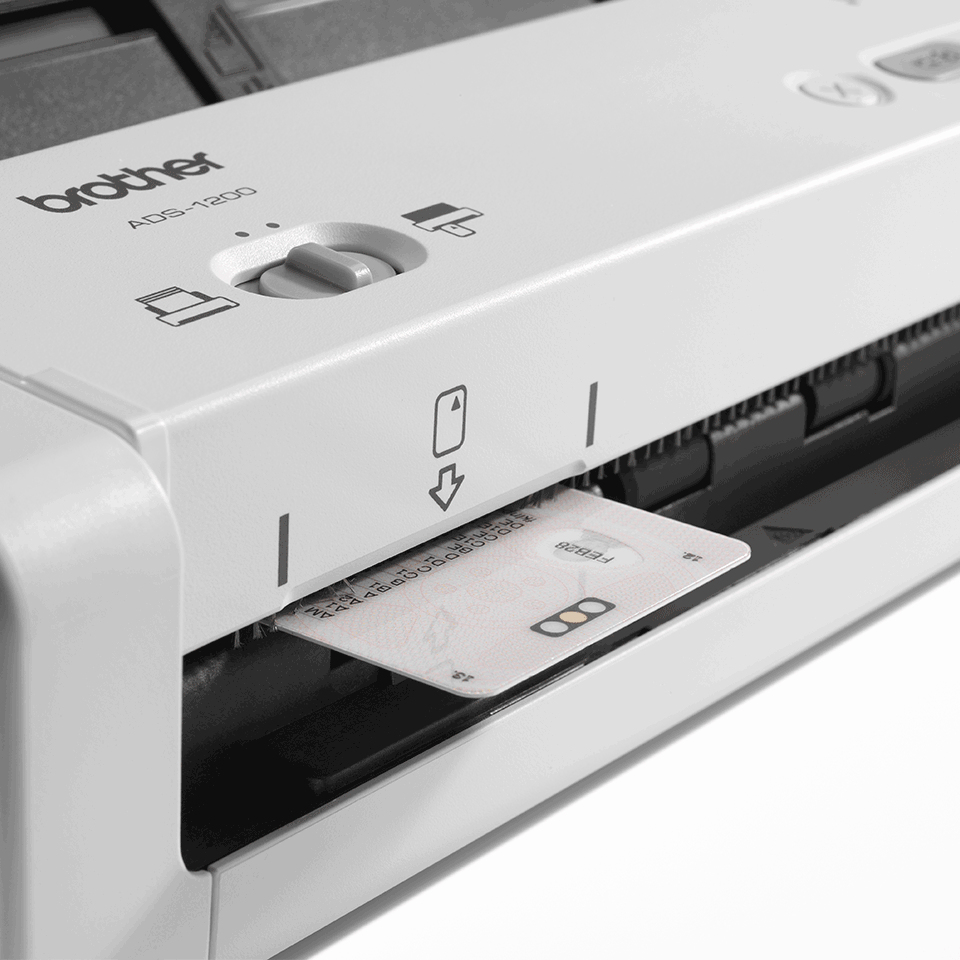

Scanning media types supported	Plain paper, Plastic Card
Long-paper mode	Yes
Auto Document Feeder (ADF) media weight	51.8 - 200 g/m²
Maximum scan width	21.5 cm
Maximum scan length	86.3 cm

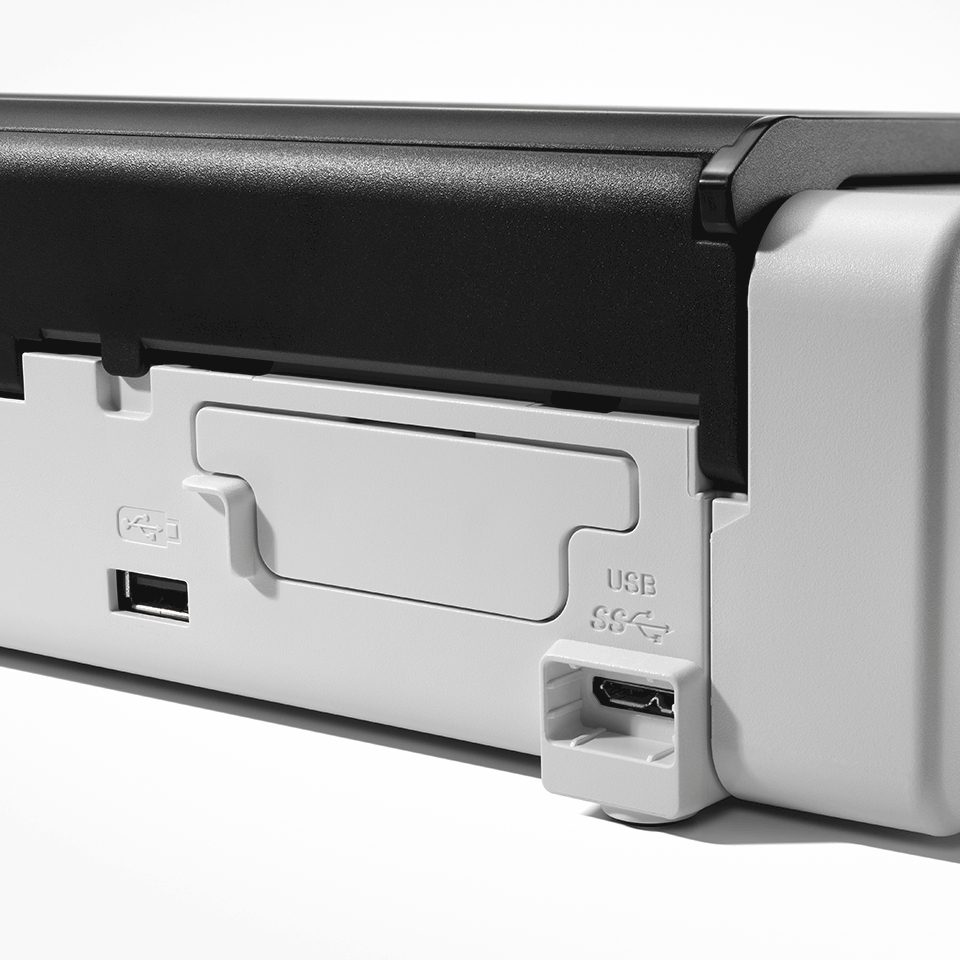

Ports & interfaces

Specification	Value
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector type	Micro-USB B
Standard interfaces	USB 3.2 Gen 1 (3.1 Gen 1)

Power

Specification	Value
Power consumption (typical)	8 W
Power supply type	AC
Power consumption (standby)	3.2 W
Power consumption (off)	0.1 W
AC input frequency	50 - 60 Hz
Input voltage	100 - 240 V
Power consumption (sleep)	1.3 W

Weight & dimensions

Specification	Value
Width	157 mm
Depth	200 mm
Height	380 mm
Weight	1.56 kg

Packaging data

Specification	Value
Package width	380 mm
Package depth	157 mm
Package height	200 mm
Package weight	2.24 kg

Packaging content

Specification	Value
AC adapter included	Yes
Quick start guide	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

System requirements

Specification	Value
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Other features

Specification	Value
Spare part retention	5 year(s)

Technical details

Specification	Value
Pallet type	1200 x 1000 mm

Logistics data

Specification	Value
Products per pallet	126 pc(s)
Country of origin	China
Harmonized System (HS) code	84716070
Layers per pallet	7 pc(s)
Master (outer) cases per pallet	42 pc(s)
Master (outer) cases per pallet layer	6 pc(s)
Pallet gross height	17.2 cm
Pallet gross weight	279.7 kg
