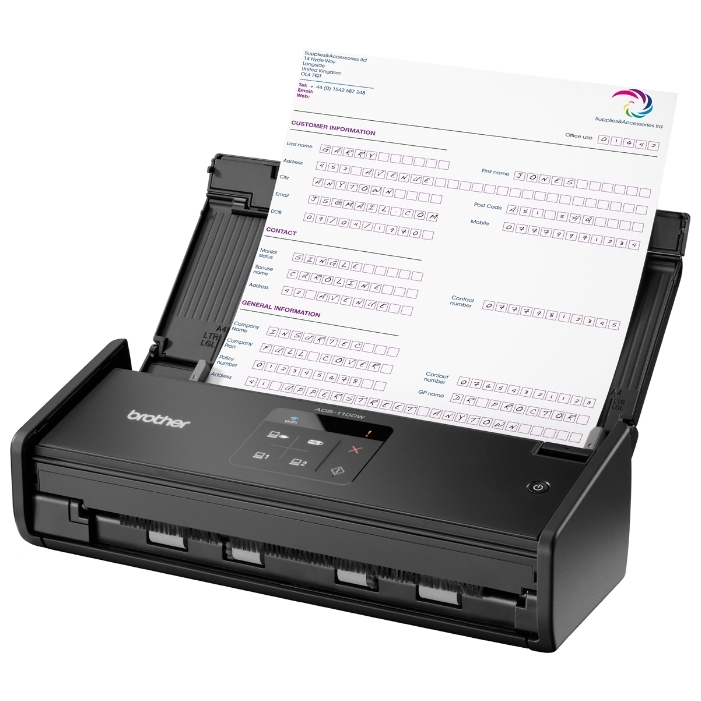

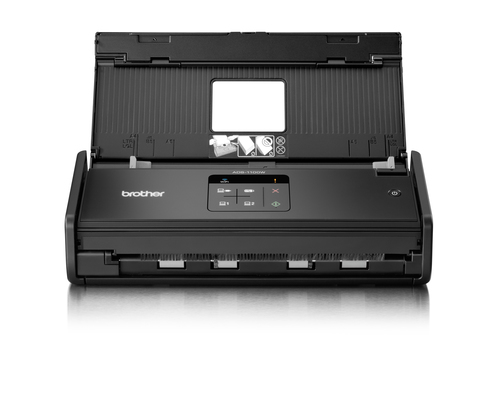

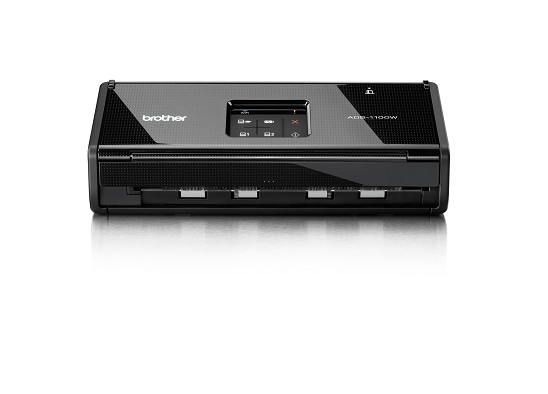

Brother ADS-1100W scanner ADF scanner
600 x 600 DPI A4 Black
Model ADS-1100WEAN 7112014024217
59 specifications
- Memory128 MB
- Weight2.05 kg
- ColourBlack
- Maximum scan size210 x 297 mm
- Scanner typeADF scanner
- Sensor typeDual CIS
Overview
- Memory
- 128 MB
- Weight
- 2.05 kg
- Colour
- Black
- Maximum scan size
- 210 x 297 mm
- Scanner type
- ADF scanner
- Sensor type
- Dual CIS
- Brand
- Brother
- Category
- Scanner
- Model
- ADS-1100W
- Part number
- ADS-1100W
- EAN / UPC
- 7112014024217, 4052305876930, 4055325672698, 4092015032257 +8 more
- Also known as
- Brother ADS-1100W scanner ADF scanner 600 x 600 DPI A4 Black
Specifications
59 specifications in 14 groups
Scanning
| Specification | Value |
|---|---|
| Maximum scan size | 210 x 297 mm |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| Film scanning | No |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 16 ppm |
| ADF scan speed (colour, A4) | 16 ppm |
| Black/white scanning colour modes | Grayscale, Monochrome |
Design
| Specification | Value |
|---|---|
| Scanner type | ADF scanner |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Sensor type | Dual CIS |
| Scan file formats | BMP, JPG, TIFF |
| Daily duty cycle (max) | 500 pages |
| Scan to | E-mail, FTP, Image, OCR, USB |
| Scan drivers | ICA, ISIS, TWAIN, WIA |
| Scanning noise level | 47 dB |
| Internal memory | 128 MB |
| Processor frequency | 288 MHz |
Input capacity
| Specification | Value |
|---|---|
| Auto document feeder (ADF) input capacity | 20 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card |
| ISO A-series sizes (A0...A9) | A4, A5, A6, A7, A8 |
| ISO B-series sizes (B0...B9) | B5, B6, B7 |
| Letter | Yes |
| Auto Document Feeder (ADF) media weight | 52 - 110 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 1.1, USB 2.0, Wireless LAN |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Mobile printing technologies | Brother iPrint & Scan |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 14 W |
| Power consumption (standby) | 4 W |
| Power consumption (off) | 0.25 W |
| Power consumption (PowerSave) | 1.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 207 mm |
| Height | 380 mm |
| Weight | 2.05 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 380 mm |
| Package depth | 170 mm |
| Package height | 207 mm |
| Package weight | 2.91 kg |
System requirements
| Specification | Value |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Other features
| Specification | Value |
|---|---|
| Custom media length | 70 - 297 mm |
| Custom media width | 51 - 215.9 mm |
Technical details
| Specification | Value |
|---|---|
| Pallet type | 800 x 1200 mm |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 72 pc(s) |
| Country of origin | China |
| Layers per pallet | 6 pc(s) |
| Master (outer) cases per pallet | 24 pc(s) |
| Master (outer) cases per pallet layer | 4 pc(s) |
| Pallet gross height | 15.3 cm |
| Pallet gross weight | 227 kg |
