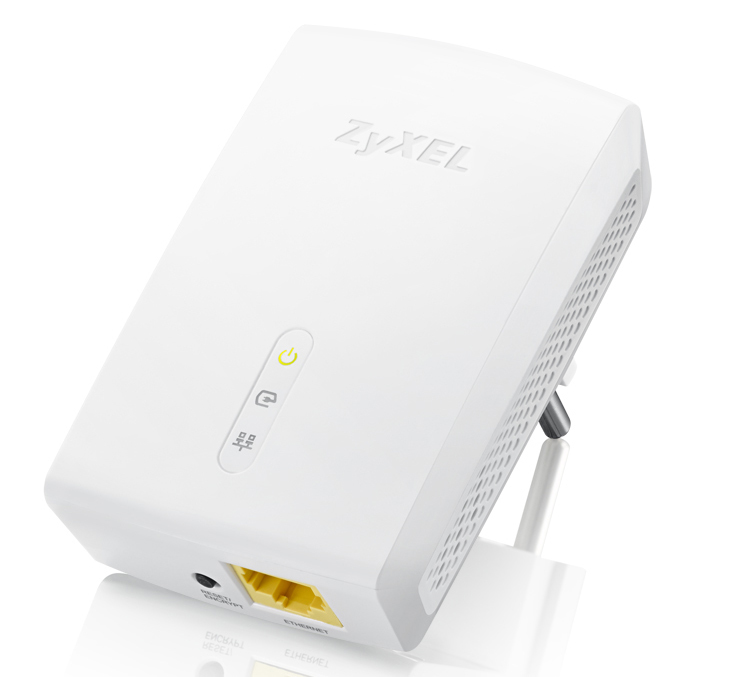

PLA5405 1200 Mbit/s Ethernet LAN White 1 pc(s)
Model PLA5405Part no. PLA5405-EU0201FEAN 8944467772822
34 specifications
- Speed1200 Mbit/s
- Weight95 g
- ColourWhite
- Power consumption (typical)4 W
- LED indicatorsYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 1200 Mbit/s
- Weight
- 95 g
- Colour
- White
- Power consumption (typical)
- 4 W
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Zyxel
- Category
- PowerLine Network Adapter
- Model
- PLA5405
- Part number
- PLA5405-EU0201F
- EAN / UPC
- 8944467772822, 644535531839, 723856121445, 758399146495 +3 more
- Also known as
- Zyxel PLA5405 1200 Mbit/s Ethernet LAN White 1 pc(s)
Specifications
34 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1200 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |

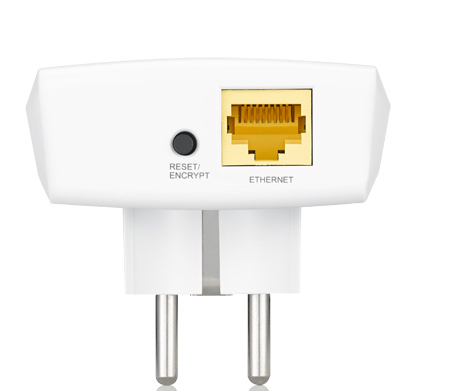

| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV2 |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Quality of Service (QoS) support | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 4 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Product colour | White |
| Certification | CE, FCC, BSMI CE-LVD, IEC |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 60 mm |
| Height | 27 mm |
| Weight | 95 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 151 mm |
| Package depth | 176 mm |
| Package height | 85 mm |
| Package weight | 355 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
