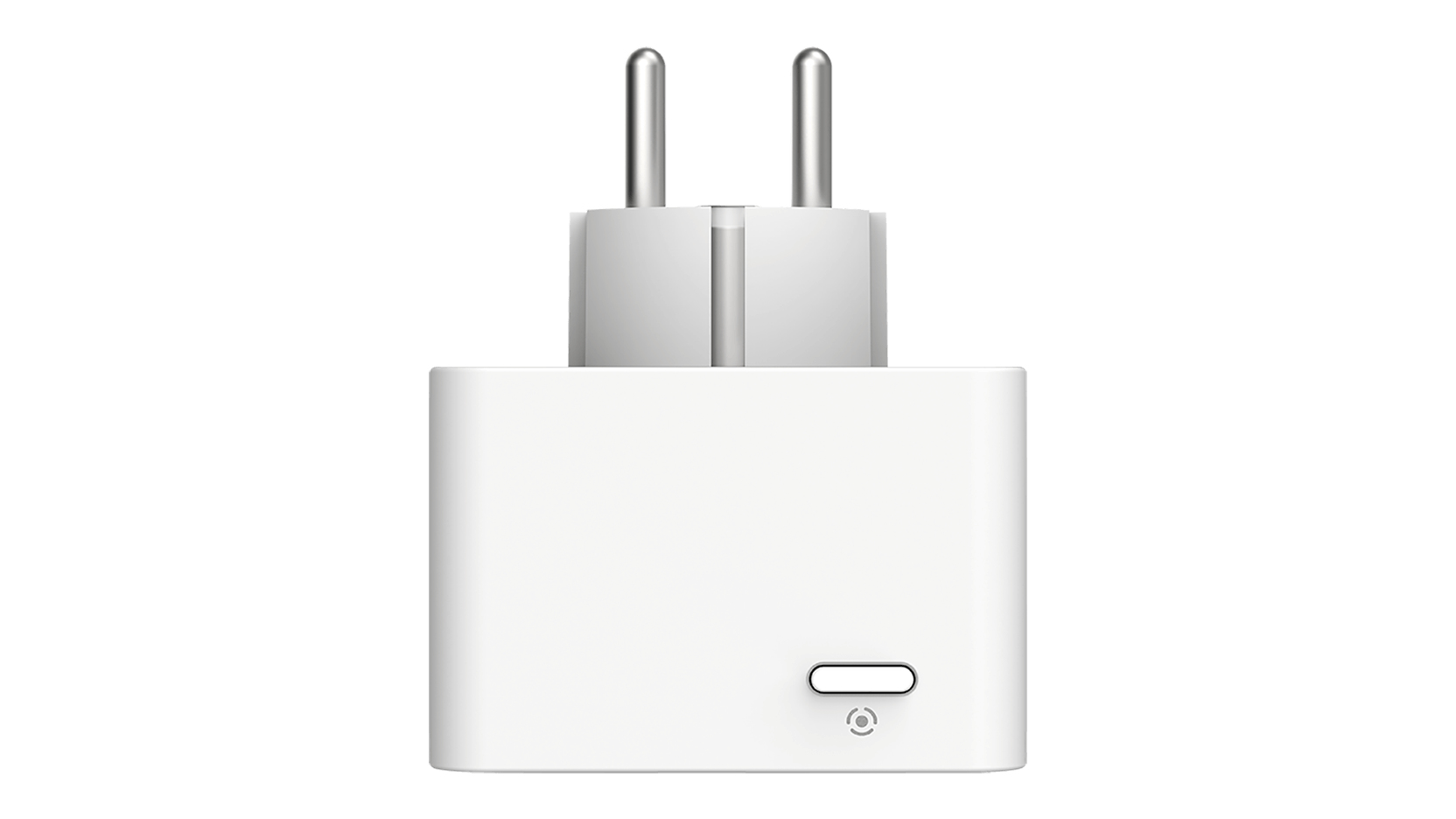

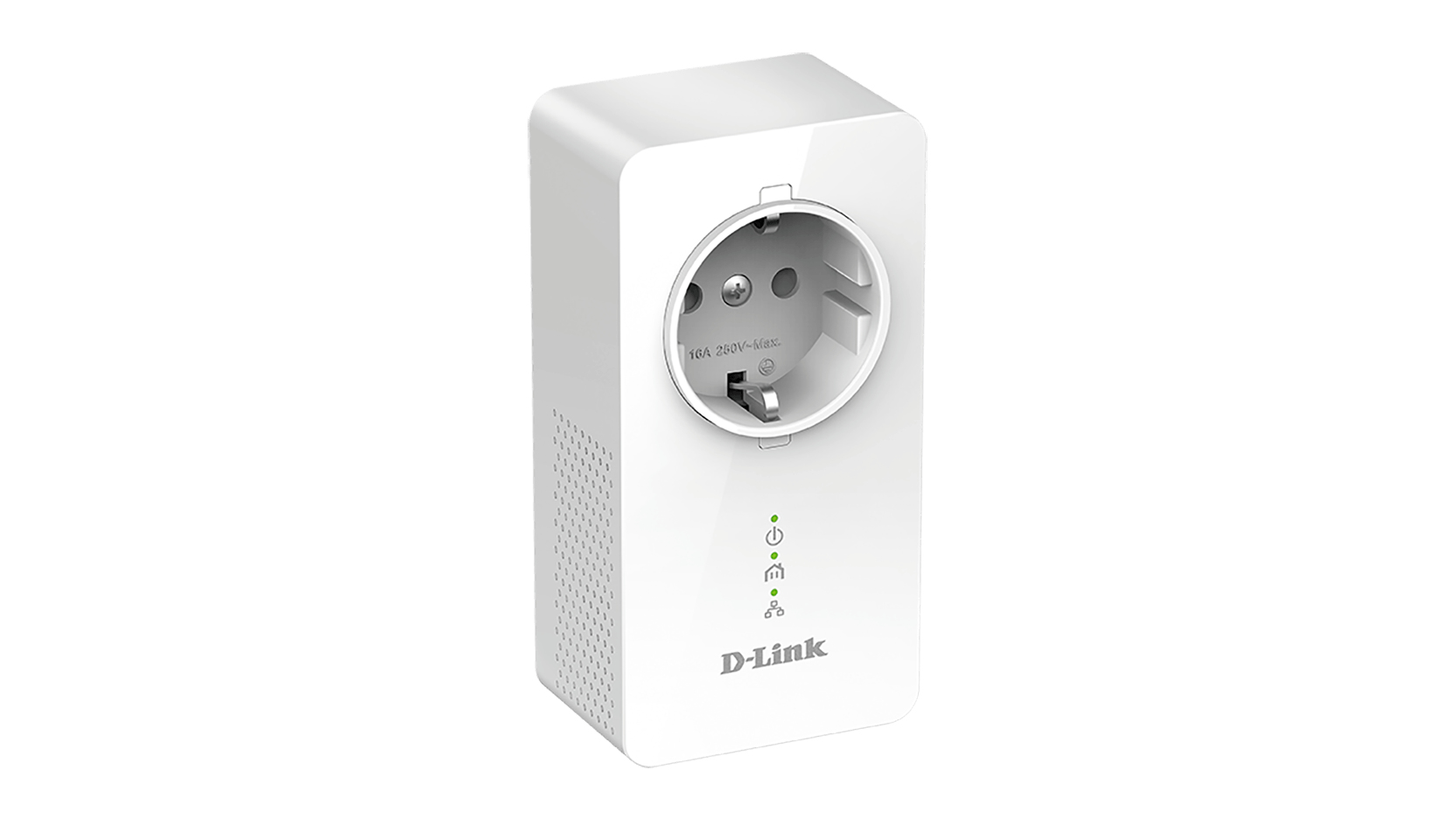

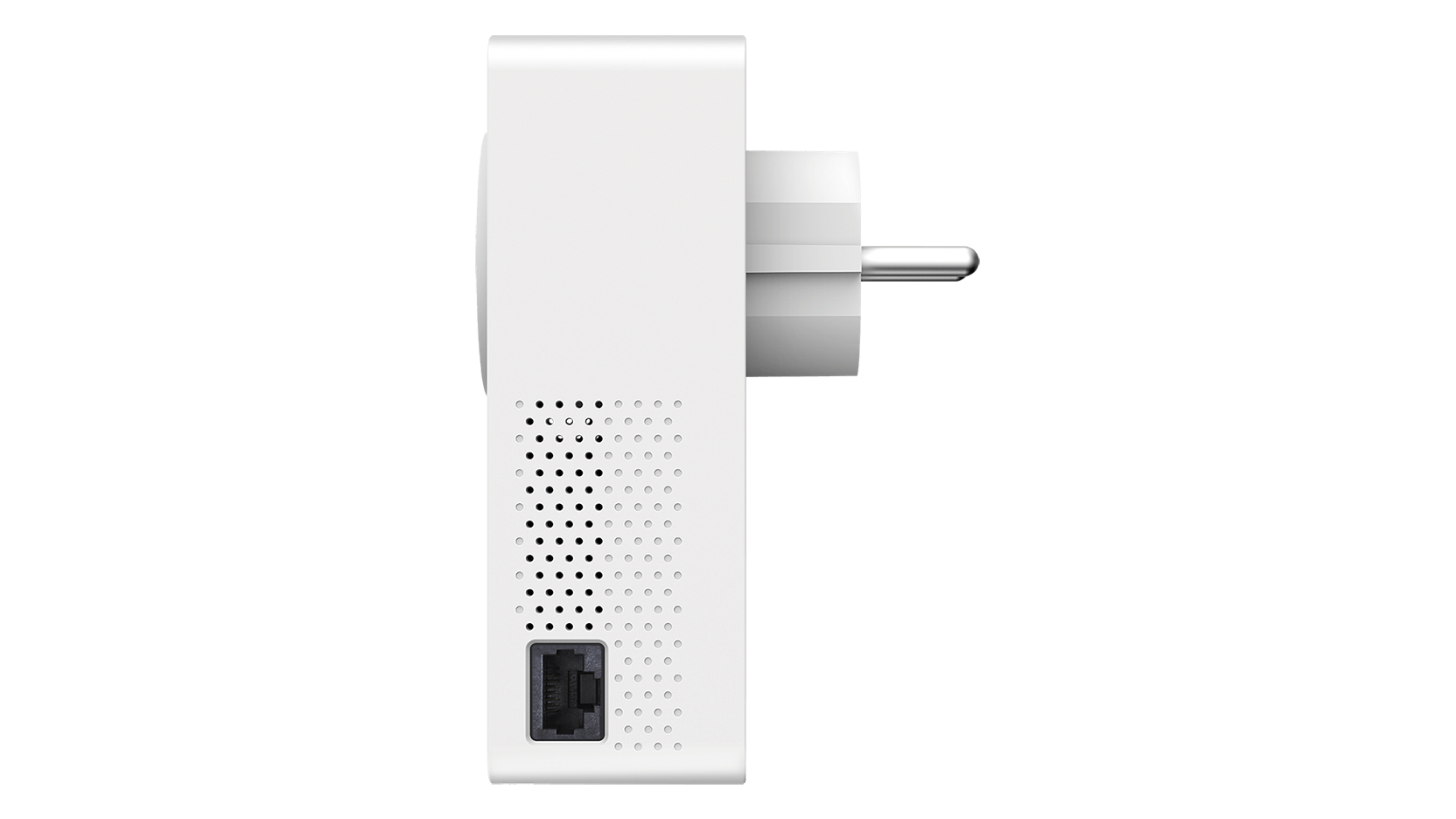

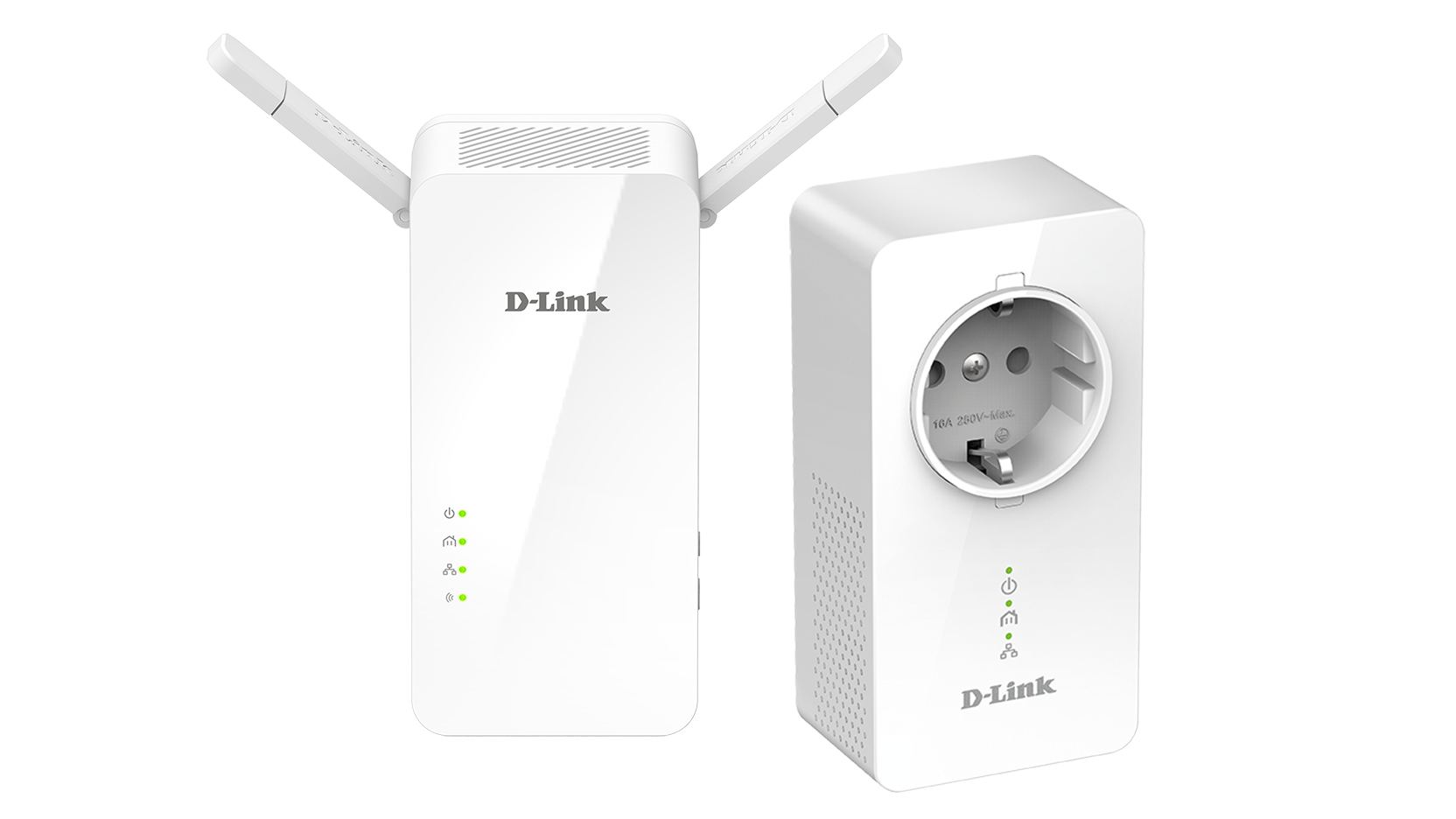

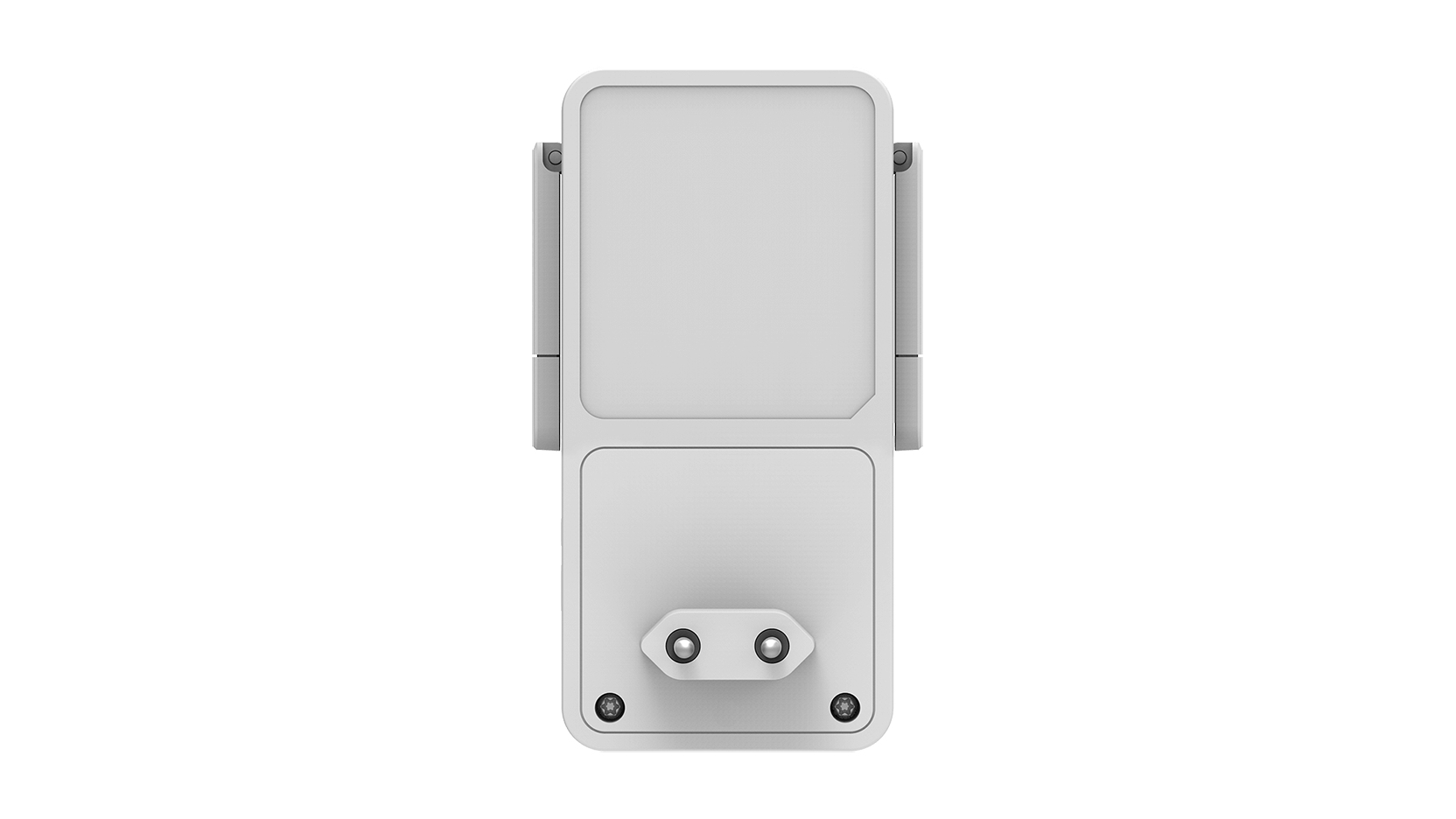

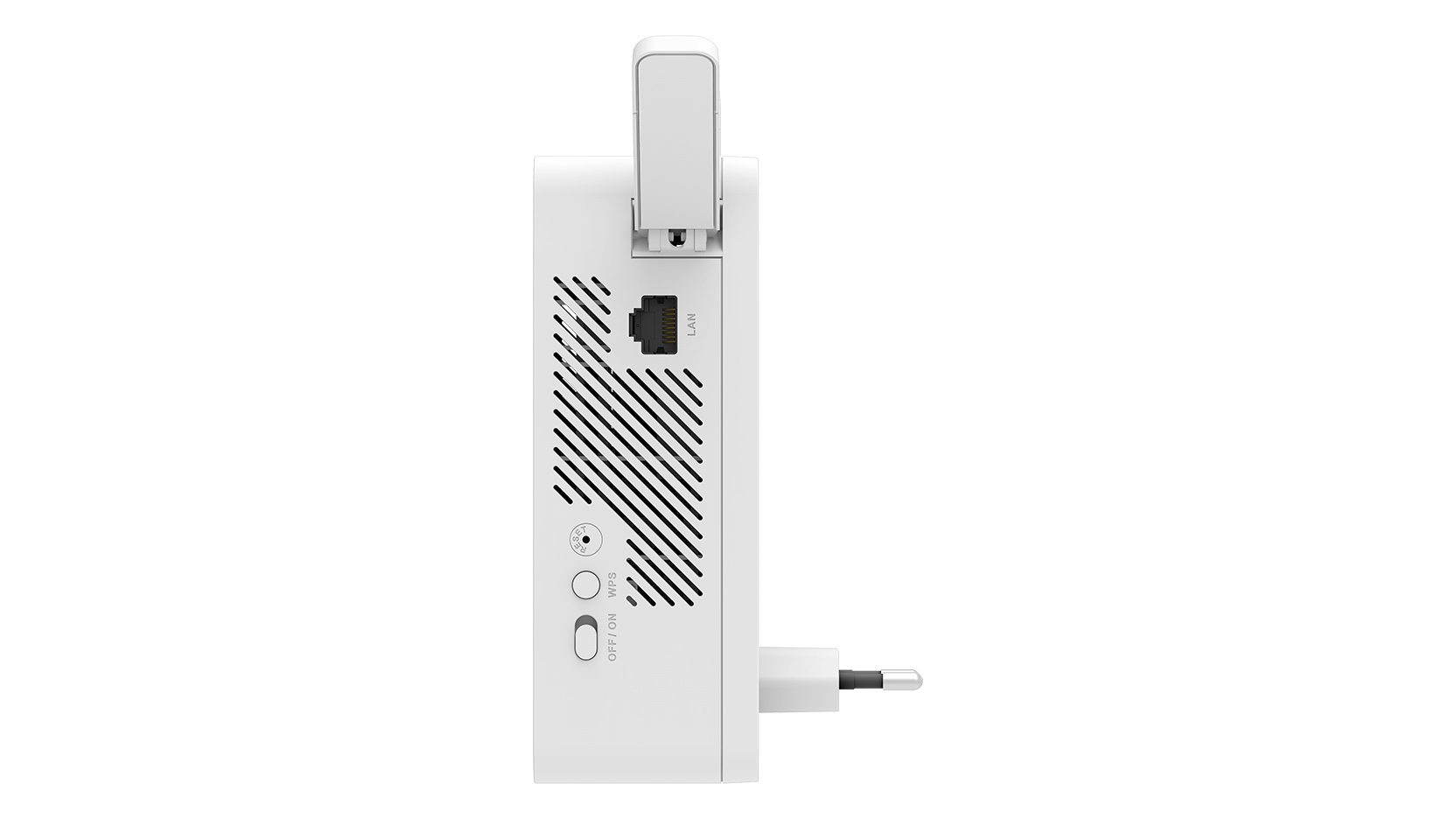

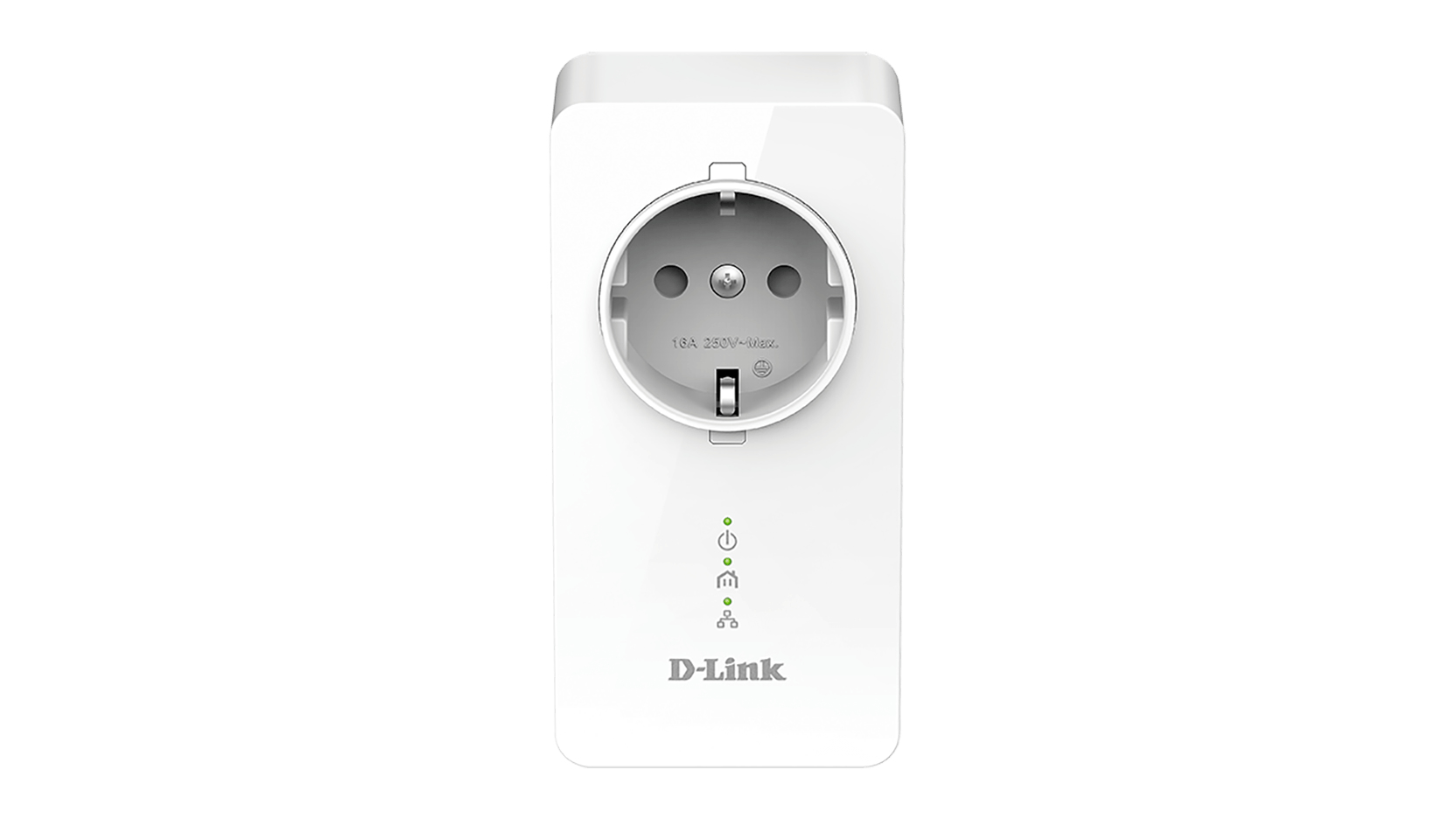

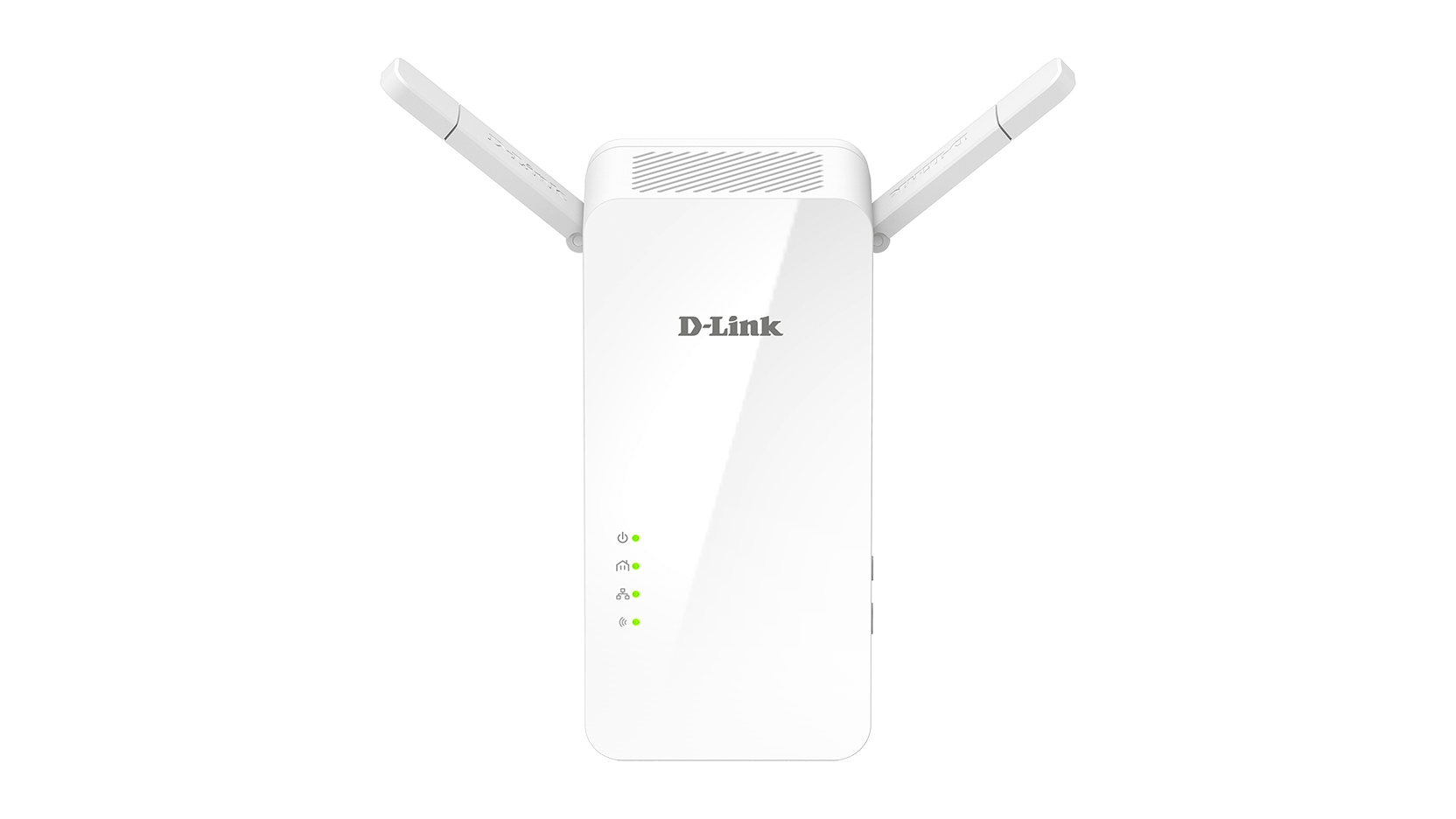

DHP-W611AV 1000 Mbit/s Ethernet LAN Wi-Fi White 2 pc(s)
Model DHP-W611AVPart no. DHP-W611AV/EEAN 790069428029
44 specifications
- Speed1000 Mbit/s
- Weight188 g
- ColourWhite
- Antenna typeExternal
- Operating temperature (T-T)0 - 40 °C
- Width59 mm
Overview
- Speed
- 1000 Mbit/s
- Weight
- 188 g
- Colour
- White
- Antenna type
- External
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 59 mm
- Brand
- D-Link
- Category
- PowerLine Network Adapter
- Model
- DHP-W611AV
- Part numbers
- DHP-W611AV/E, DHP-W611AV
- EAN / UPC
- 790069428029, 790069441073
- Also known as
- D-Link DHP-W611AV 1000 Mbit/s Ethernet LAN Wi-Fi White 2 pc(s)
Specifications
44 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 300,867 Mbit/s |
| Networking standards | IEEE 1901, IEEE 802.3, IEEE 802.3x |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV2 |
| Frequency range | 2 - 86 MHz |
Design
| Specification | Value |
|---|---|
| Antenna type | External |
| LED indicators | Yes |
| Product colour | White |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 59 mm |
| Depth | 38 mm |
| Height | 114 mm |
| Weight | 188 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 208 mm |
| Package depth | 178 mm |
| Package height | 115 mm |
| Package weight | 769 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 80 pc(s) |
| Master (outer) cases per pallet (sea) | 80 pc(s) |
| Pallet gross weight (air) | 367.3 kg |
| Pallet gross weight (sea) | 367.3 kg |
| Pallet height (air) | 2.1 m |
| Pallet height (sea) | 2.1 m |
| Products per pallet (air) | 400 pc(s) |
| Products per pallet (sea) | 400 pc(s) |
| Shipping (inner) case net weight | 2.81 kg |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
| Shipping (inner) case width | 20 cm |
| Shipping (inner) case length | 60 cm |
| Shipping (inner) case height | 24.5 cm |
| Shipping (inner) case gross weight | 4.36 kg |
| Products per shipping (inner) case | 5 pc(s) |
