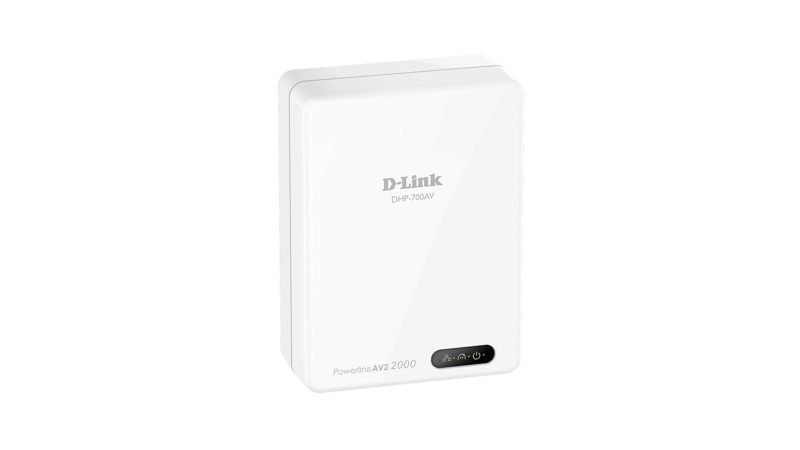

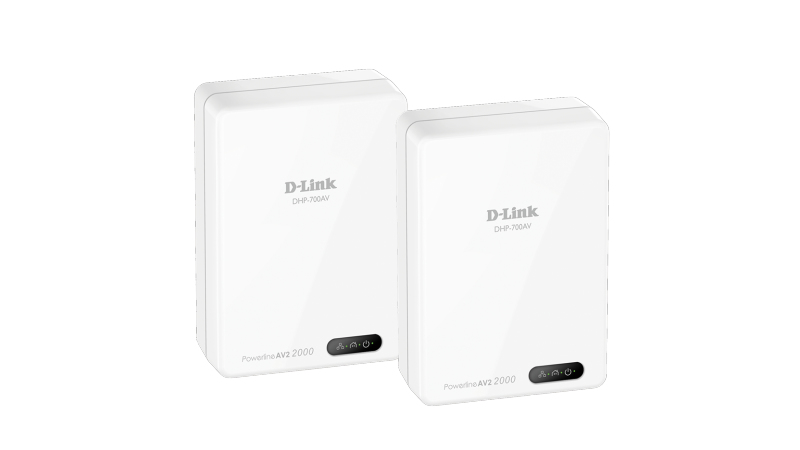

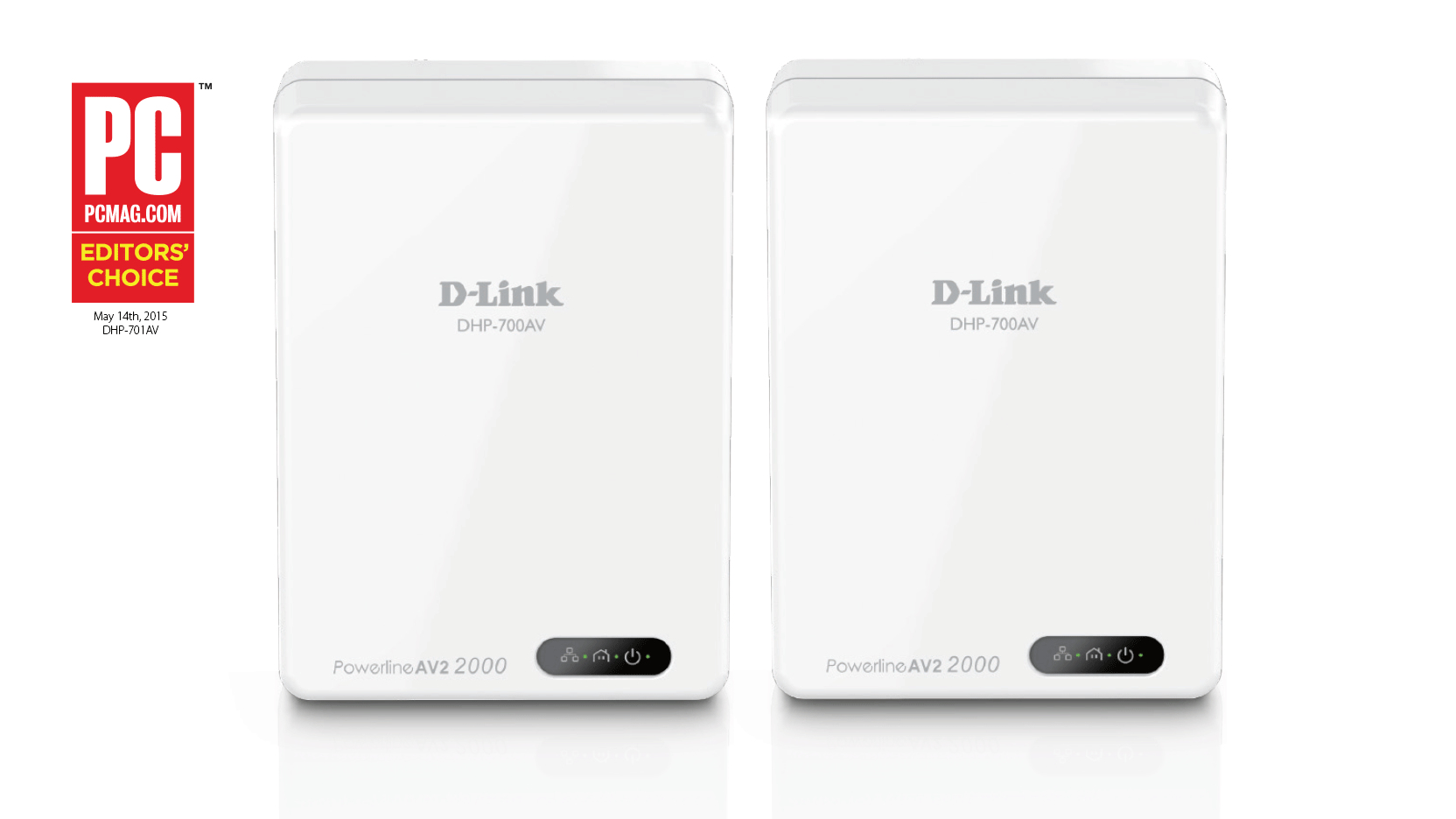

DHP-701AV/E PowerLine network adapter Ethernet LAN Wi-Fi White 2 pc(s)
Model DHP-701AV/EEAN 790069419249
48 specifications
- Weight181.4 g
- ColourWhite
- Ethernet LANYes
- AC input voltage100-240 V
- LED indicatorsLAN, Power, Power fail
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 181.4 g
- Colour
- White
- Ethernet LAN
- Yes
- AC input voltage
- 100-240 V
- LED indicators
- LAN, Power, Power fail
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- D-Link
- Category
- PowerLine Network Adapter
- Model
- DHP-701AV/E
- Part number
- DHP-701AV/E
- EAN / UPC
- 790069419249
- Also known as
- D-Link DHP-701AV/E PowerLine network adapter Ethernet LAN Wi-Fi White 2 pc(s)
Specifications
48 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |

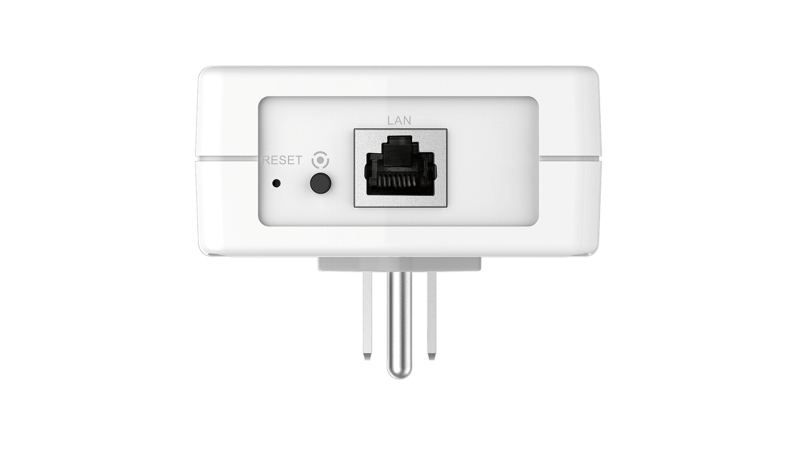

| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Networking standards | IEEE 1901, IEEE 802.3, IEEE 802.3u |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV2 |
| Security algorithms | 128-bit AES |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
Design
| Specification | Value |
|---|---|
| LED indicators | LAN, Power, Power fail |
| Product colour | White |
| Certification | UL, FCC |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 98.8 mm |
| Depth | 72.6 mm |
| Height | 34 mm |
| Weight | 181.4 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 208 mm |
| Package depth | 137 mm |
| Package height | 95 mm |
| Package weight | 604 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Manual | Yes |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 60 pc(s) |
| Master (outer) cases per pallet (sea) | 60 pc(s) |
| Pallet gross weight (air) | 414 kg |
| Pallet gross weight (sea) | 414 kg |
| Pallet height (air) | 197 cm |
| Pallet height (sea) | 197 cm |
| Products per pallet (air) | 600 pc(s) |
| Products per pallet (sea) | 600 pc(s) |
| Shipping (inner) case net weight | 6.04 kg |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
| Shipping (inner) case width | 29.2 cm |
| Shipping (inner) case length | 50 cm |
| Shipping (inner) case height | 23 cm |
| Shipping (inner) case gross weight | 6.65 kg |
| Products per shipping (inner) case | 10 pc(s) |
Similar products
All powerline network adapters
D-Link
COVR-P2502/E PowerLine network adapter 1300 Mbit/s Ethernet LAN Wi-Fi Grey, White 2 pc(s)
Model COVR-P2502/E
- Speed
- 1300 Mbit/s
- Weight
- 280 g
- Colour
- Grey, White
D-Link
DHP-W310AV/E PowerLine network adapter 500 Mbit/s Ethernet LAN Wi-Fi White 1 pc(s)
Model DHP-W310AV/E
- Speed
- 500 Mbit/s
- Colour
- White
- Power consumption (typical)
- 6 W
D-Link
DHP-W311AV/E PowerLine network adapter 500 Mbit/s Ethernet LAN Wi-Fi White 1 pc(s)
Model DHP-W311AV/E
- Speed
- 500 Mbit/s
- Colour
- White
- Power consumption (typical)
- 6 W
TP-Link
TL-WPA7510KIT 1000 Mbit/s Ethernet LAN Wi-Fi White 2 pc(s)
Model TL-WPA7510KIT
- Speed
- 1000 Mbit/s
- Colour
- White
- Power consumption (standby)
- 2.2 W
D-Link
DHP-W611AV 1000 Mbit/s Ethernet LAN Wi-Fi White 2 pc(s)
Model DHP-W611AV
- Speed
- 1000 Mbit/s
- Weight
- 188 g
- Colour
- White
TP-Link
Powerline 600 Wi-Fi Powerline Extender
Model TL-WPA4220
- Speed
- 600 Mbit/s
- Colour
- White
- Power consumption (typical)
- 5.086 W
LogiLink

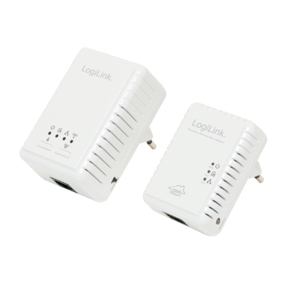

PL0013 PowerLine network adapter 500 Mbit/s Ethernet LAN Wi-Fi White 2 pc(s)
