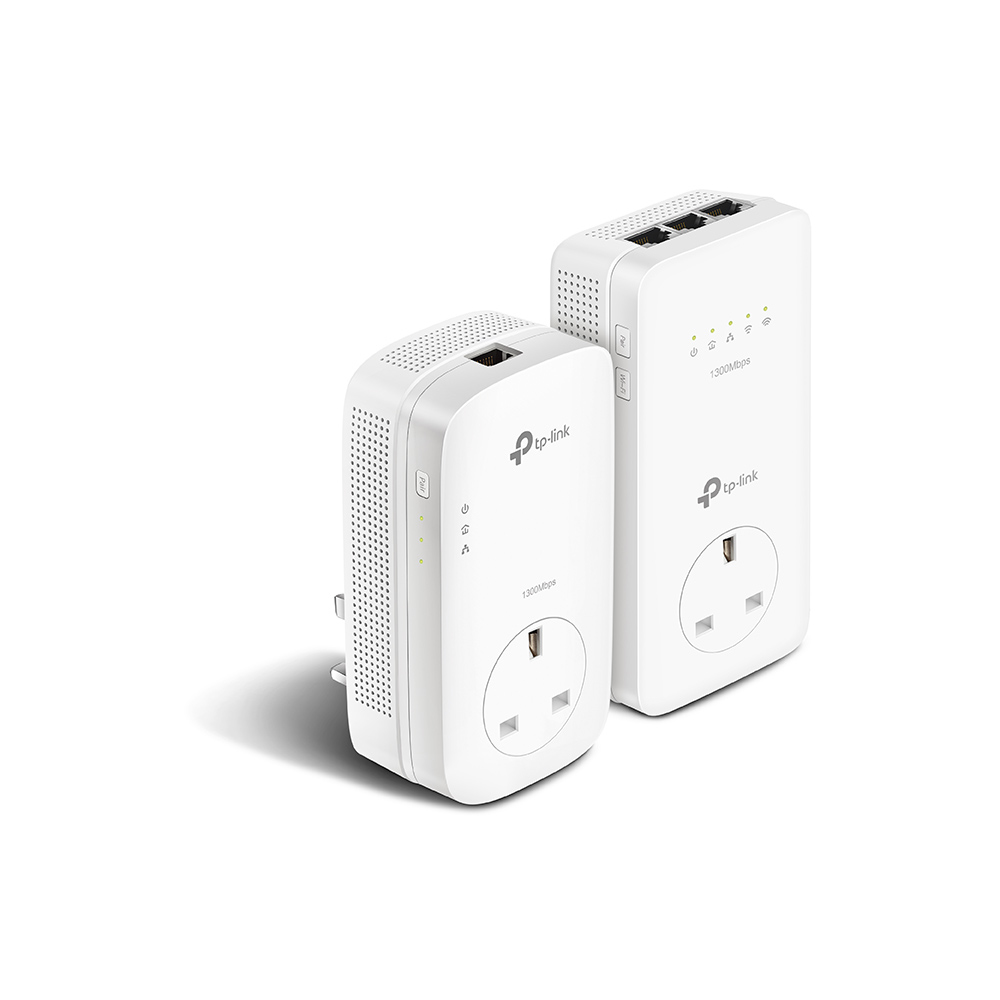

TL-WPA8630P KIT
Model TL-WPA8630P KITEAN 845973093686
44 specifications
- Speed1350 Mbit/s
- ColourWhite
- Power consumption (typical)10.8 W
- LED indicatorsPower, Reset, WLAN
- Linux operating systems supportedYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 1350 Mbit/s
- Colour
- White
- Power consumption (typical)
- 10.8 W
- LED indicators
- Power, Reset, WLAN
- Linux operating systems supported
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- TL-WPA8630P KIT
- Part numbers
- TL-WPA8630P KIT, TL-WPA8630P KIT V2, TL-WPA8630P KIT (CH), TL-WPA8630P KIT (DE)
- EAN / UPC
- 845973093686, 845973093662, 6935364093662, 6935364093679 +5 more
- Also known as
- TP-Link AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit
Specifications
44 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1350 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 3 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Networking standards | IEEE 1901, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Encryption button | Yes |
| Frequency range | 2400 - 5000 MHz |
| Quality of Service (QoS) support | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10.8 W |
| Power consumption (standby) | 5 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | Power, Reset, WLAN |
| Product colour | White |
| Certification | CE |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | macOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 152 mm |
| Depth | 75 mm |
| Height | 42 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 190 mm |
| Package height | 100 mm |
| Package weight | 1.09 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Manual | Yes |
| Cables included | LAN (RJ-45) |
