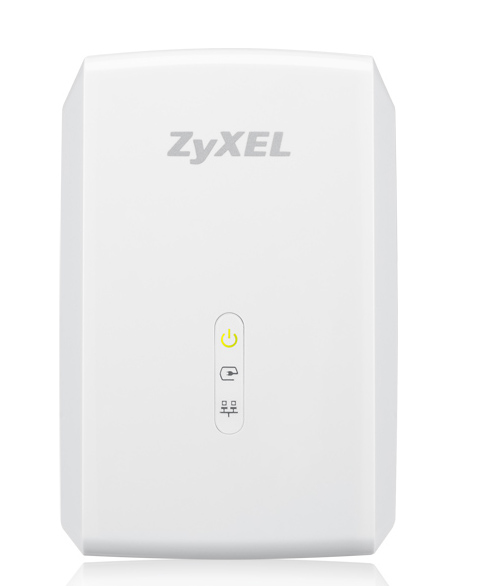

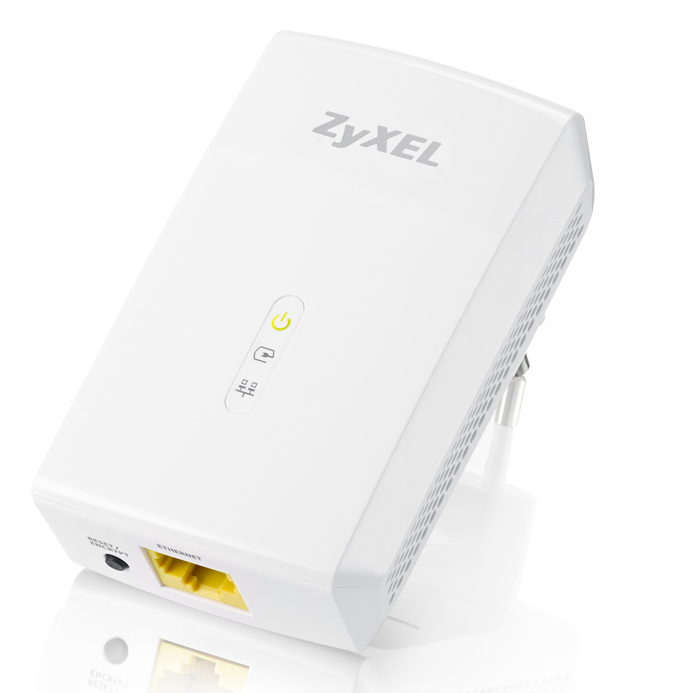

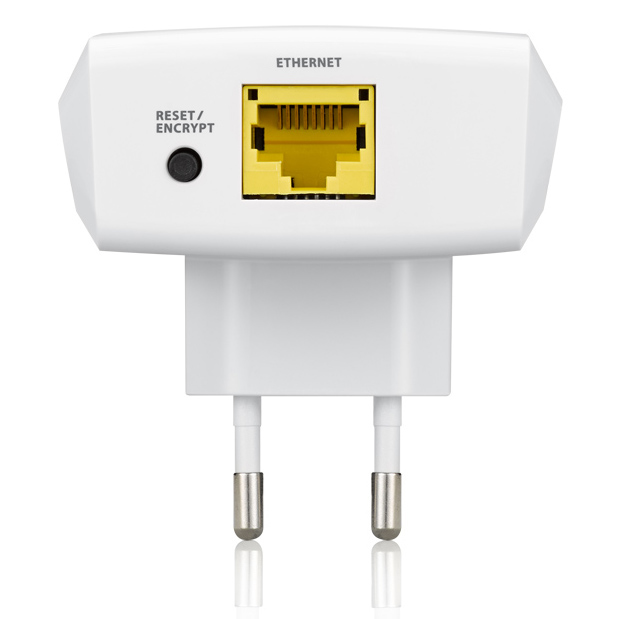

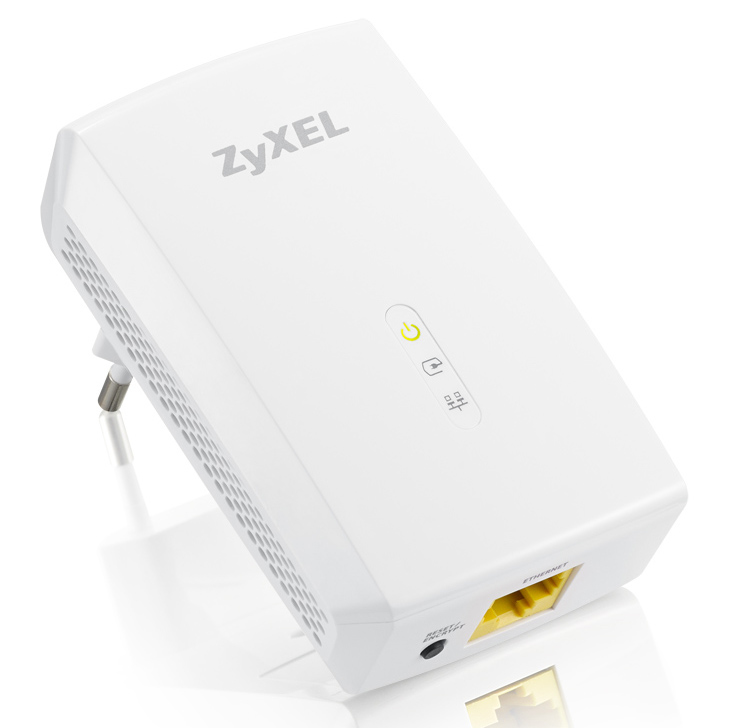

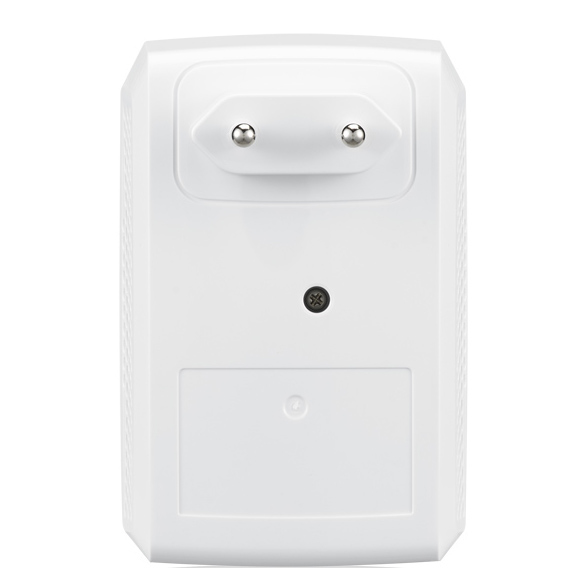

PLA5206 1000 Mbit/s Ethernet LAN White
Model PLA5206Part no. PLA5206-GB0101FEAN 5054605189306
32 specifications
- Speed1000 Mbit/s
- Weight100 g
- ColourWhite
- Power consumption (typical)4 W
- LED indicatorsActivity, Link, Network, Power
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 1000 Mbit/s
- Weight
- 100 g
- Colour
- White
- Power consumption (typical)
- 4 W
- LED indicators
- Activity, Link, Network, Power
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Zyxel
- Category
- PowerLine Network Adapter
- Model
- PLA5206
- Part numbers
- PLA5206-GB0101F, PLA5206-EU0101F, PLA5206-EU0201F
- EAN / UPC
- 5054605189306, 4718937581061, 4172937581085, 4718937581085
- Also known as
- Zyxel PLA5206 1000 Mbit/s Ethernet LAN White
Specifications
32 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Networking standards | IEEE 1901 |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Quality of Service (QoS) support | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 4 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | Activity, Link, Network, Power |
| Product colour | White |
| Certification | Safety: CE-LVD EMC: CE, FCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 61 mm |
| Depth | 93 mm |
| Height | 32 mm |
| Weight | 100 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 151 mm |
| Package depth | 176 mm |
| Package height | 85 mm |
| Package weight | 360 g |
