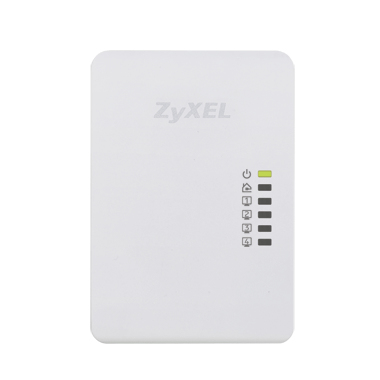

PLA4225 1000 Mbit/s Ethernet LAN White 1 pc(s)
Model PLA4225Part no. PLA4225-GB0101FEAN 4718937561827
26 specifications
- Speed1000 Mbit/s
- Weight108 g
- ColourWhite
- Power consumption (typical)5 W
- LED indicatorsYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 1000 Mbit/s
- Weight
- 108 g
- Colour
- White
- Power consumption (typical)
- 5 W
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Zyxel
- Category
- PowerLine Network Adapter
- Model
- PLA4225
- Part number
- PLA4225-GB0101F
- EAN / UPC
- 4718937561827, 5052916475989, 5054629223765
- Also known as
- Zyxel PLA4225 1000 Mbit/s Ethernet LAN White 1 pc(s)
Specifications
26 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 4 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| PowerLine standard | HomePlug AV |
| Security algorithms | 128-bit AES |
| Frequency range | 2 - 67.5 MHz |
| Quality of Service (QoS) support | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5 W |
| AC input voltage | 240 V |
| AC input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Product colour | White |
| Certification | CE-LVD CE, FCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 76 mm |
| Depth | 72 mm |
| Height | 108 mm |
| Weight | 108 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 134 mm |
| Package depth | 94 mm |
| Package height | 178 mm |
| Package weight | 419 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
