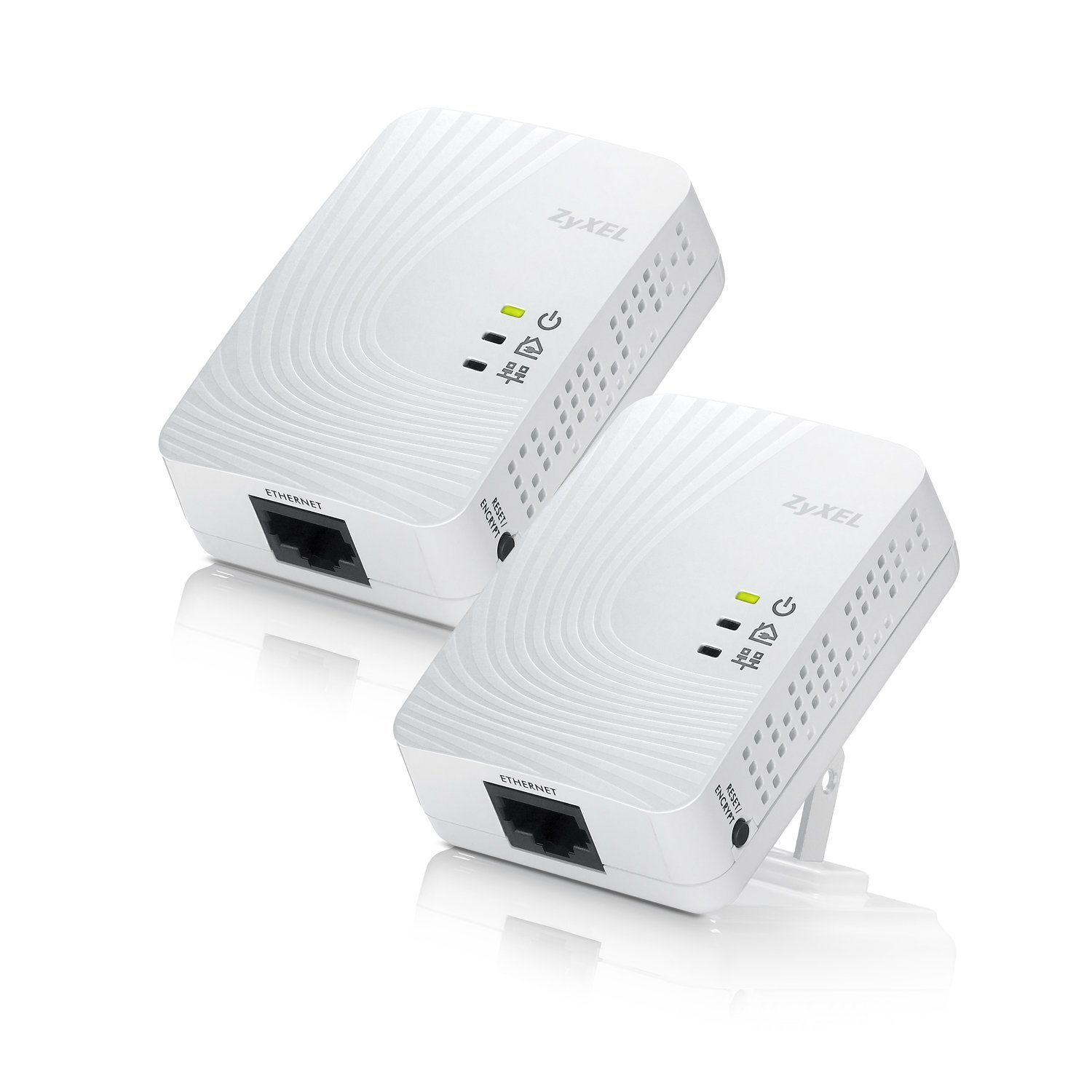

PLA4201 500 Mbit/s Ethernet LAN White 2 pc(s)
Model PLA4201Part no. PLA4201KITEAN 760559120078
32 specifications
- Speed500 Mbit/s
- Weight72 g
- ColourWhite
- Power consumption (typical)4 W
- LED indicatorsYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 500 Mbit/s
- Weight
- 72 g
- Colour
- White
- Power consumption (typical)
- 4 W
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Zyxel
- Category
- PowerLine Network Adapter
- Model
- PLA4201
- Part number
- PLA4201KIT
- EAN / UPC
- 760559120078, 7605591200780
- Also known as
- Zyxel PLA4201 500 Mbit/s Ethernet LAN White 2 pc(s)
Specifications
32 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 500 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Networking standards | IEEE 1901 |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Encryption button | Yes |
| Quality of Service (QoS) support | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 4 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Product colour | White |
| Certification | CE, FCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |

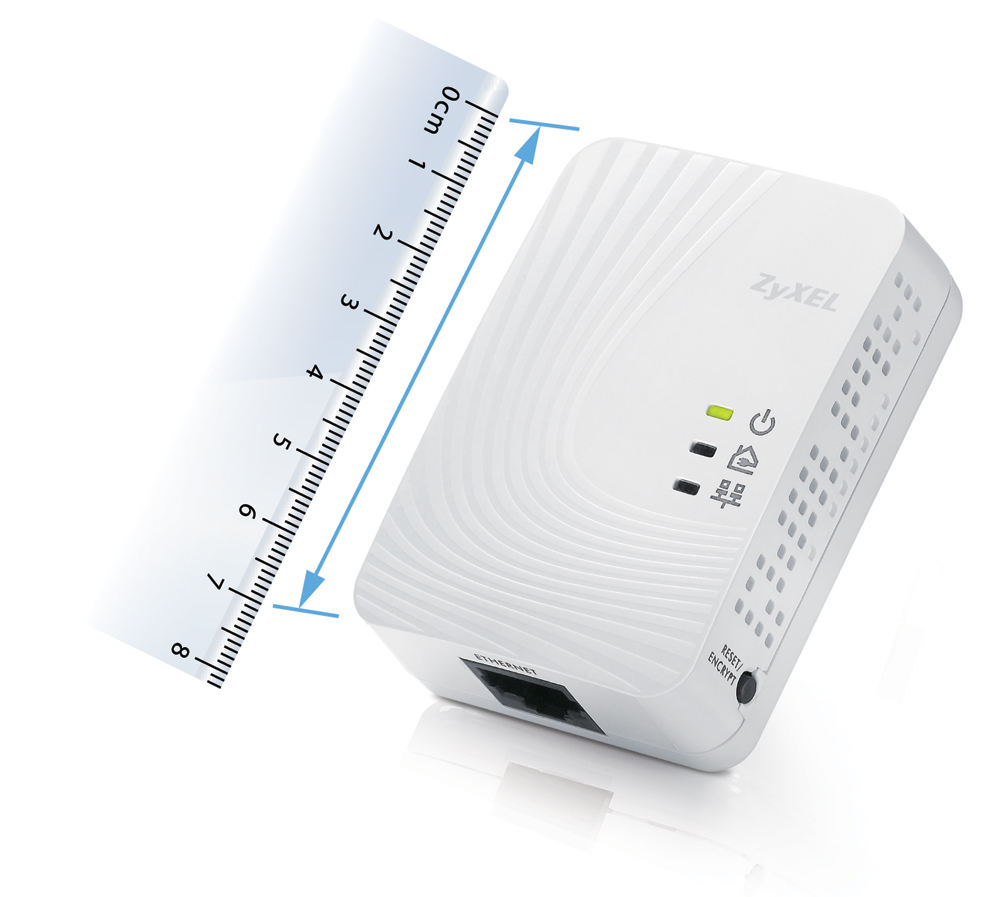

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50 mm |
| Depth | 60 mm |
| Height | 70 mm |
| Weight | 72 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 346 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
