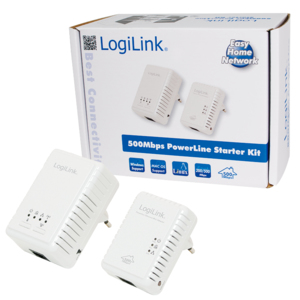

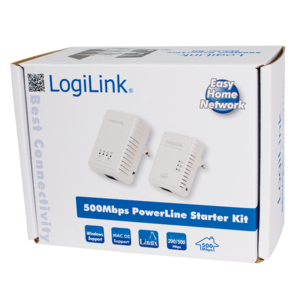

PL0013 PowerLine network adapter 500 Mbit/s Ethernet LAN Wi-Fi White 2 pc(s)
Model PL0013EAN 4052792029949
41 specifications
- Speed500 Mbit/s
- Weight110 g
- ColourWhite
- Power consumption (typical)4 W
- LED indicatorsYes
- Operating temperature (T-T)0 - 45 °C
Overview
- Speed
- 500 Mbit/s
- Weight
- 110 g
- Colour
- White
- Power consumption (typical)
- 4 W
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- LogiLink
- Category
- PowerLine Network Adapter
- Model
- PL0013
- Part number
- PL0013
- EAN / UPC
- 4052792029949
- Also known as
- LogiLink PL0013 PowerLine network adapter 500 Mbit/s Ethernet LAN Wi-Fi White 2 pc(s)
Specifications
41 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 500 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 300 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Built-in power socket | No |
| PowerLine standard | HomePlug AC |
| Modulation | 8-QAM, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, OFDM, QPSK, ROBO |
| Security algorithms | 128-bit AES, WEP, WPA, WPA2, WPS |
| Maximum operating distance | 300 m |
| Damping filter | 2 - 68 MHz |
| Equivalent Isotropically Radiated Power (EIRP) | 20 dBmW |
| Frequency range | 2400 - 2483.5 MHz |
| Quality of Service (QoS) support | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 4 W |
| Power consumption (standby) | 0.45 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Product colour | White |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 53 mm |
| Depth | 82 mm |
| Height | 41 mm |
| Weight | 110 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Cables included | LAN (RJ-45) |
