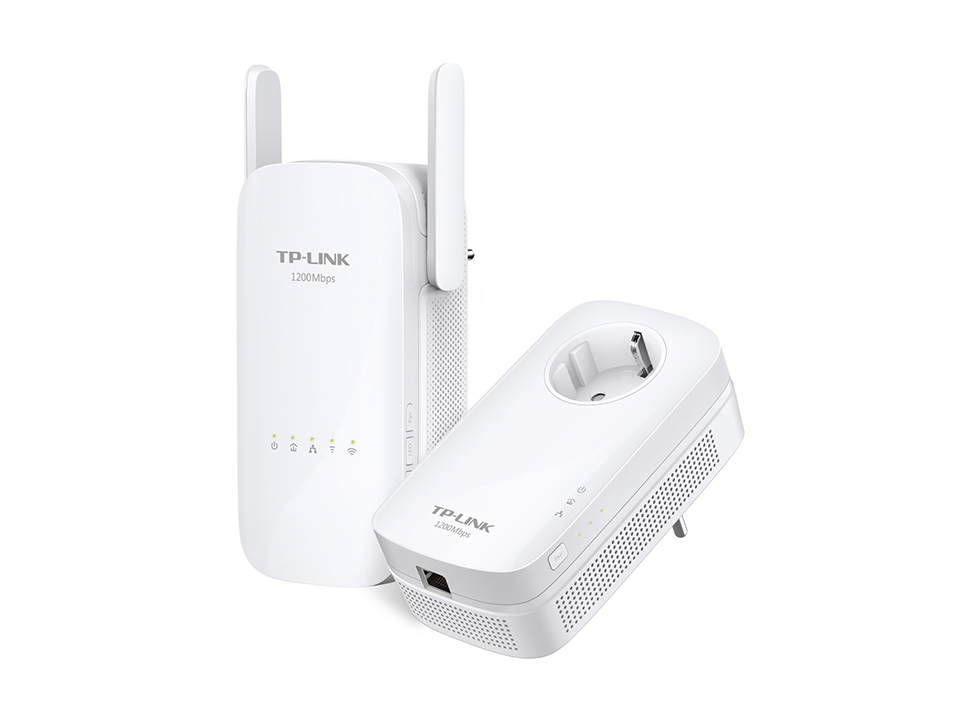

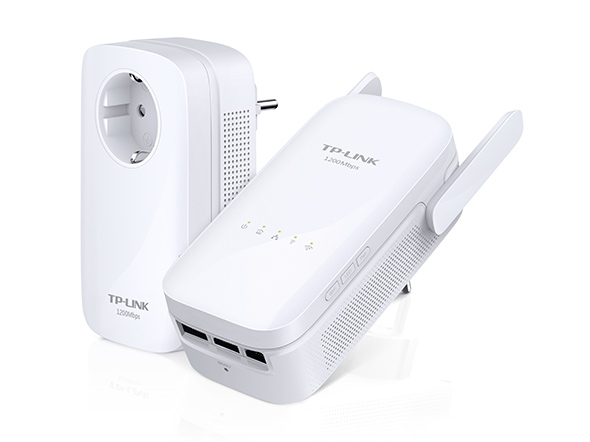

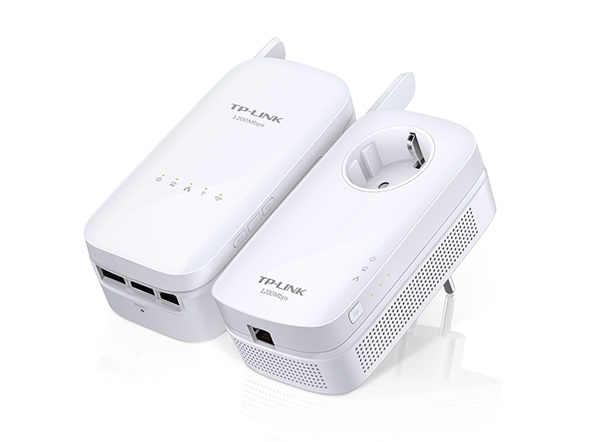

TL-WPA8630 KIT
Model TL-WPA8630 KITPart no. TL-WPA8630 KIT V2EAN 6935364098650
35 specifications
- Speed1200 Mbit/s
- ColourWhite
- Power consumption (standby)5 W
- LED indicatorsYes
- Operating temperature (T-T)0 - 40 °C
- Width140.6 mm
Overview
- Speed
- 1200 Mbit/s
- Colour
- White
- Power consumption (standby)
- 5 W
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 140.6 mm
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- TL-WPA8630 KIT
- Part numbers
- TL-WPA8630 KIT V2, TL-WPA8630 KIT (FR)
- EAN / UPC
- 6935364098650, 6935364095758, 845973081409, 6935364081393 +1 more
- Also known as
- TP-Link TL-WPA8630 KIT 1200 Mbit/s Ethernet LAN Wi-Fi White 2 pc(s)
Specifications
35 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1200 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 3 |
| Wi-Fi | Yes |
| Networking standards | IEEE 1901, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Frequency range | 24000 - 5000 MHz |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 5 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Product colour | White |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 158 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140.6 mm |
| Depth | 68 mm |
| Height | 45 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 190 mm |
| Package height | 100 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
Similar products
All powerline network adapters

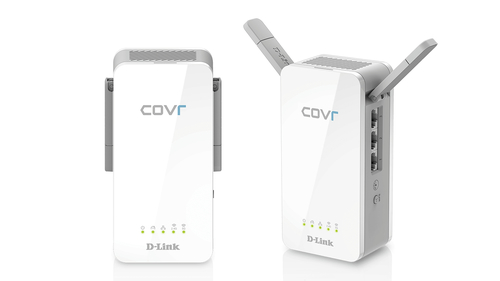

D-Link
COVR-P2502/E PowerLine network adapter 1300 Mbit/s Ethernet LAN Wi-Fi Grey, White 2 pc(s)
Model COVR-P2502/E
- Speed
- 1300 Mbit/s
- Weight
- 280 g
- Colour
- Grey, White
D-Link

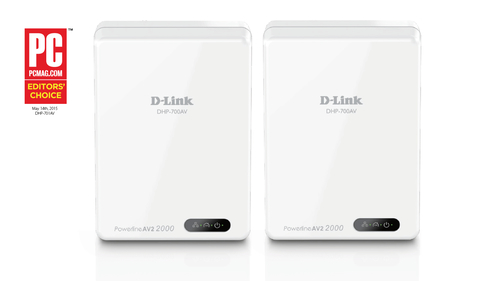

DHP-701AV/E PowerLine network adapter Ethernet LAN Wi-Fi White 2 pc(s)
Model DHP-701AV/E
- Weight
- 181.4 g
- Colour
- White
- Ethernet LAN
- Yes
D-Link

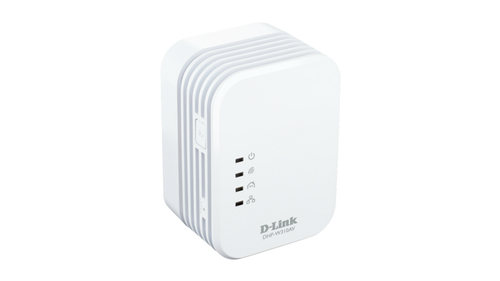

DHP-W310AV/E PowerLine network adapter 500 Mbit/s Ethernet LAN Wi-Fi White 1 pc(s)
Model DHP-W310AV/E
- Speed
- 500 Mbit/s
- Colour
- White
- Power consumption (typical)
- 6 W

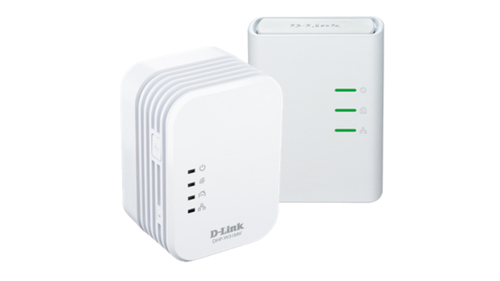

D-Link
DHP-W311AV/E PowerLine network adapter 500 Mbit/s Ethernet LAN Wi-Fi White 1 pc(s)
Model DHP-W311AV/E
- Speed
- 500 Mbit/s
- Colour
- White
- Power consumption (typical)
- 6 W

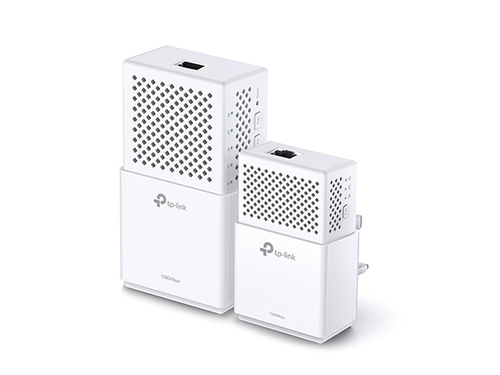

TP-Link
TL-WPA7510KIT 1000 Mbit/s Ethernet LAN Wi-Fi White 2 pc(s)
Model TL-WPA7510KIT
- Speed
- 1000 Mbit/s
- Colour
- White
- Power consumption (standby)
- 2.2 W
D-Link

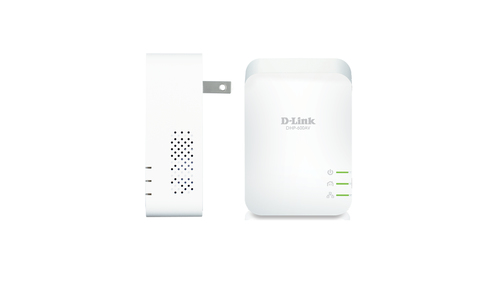

DHP-W611AV 1000 Mbit/s Ethernet LAN Wi-Fi White 2 pc(s)
Model DHP-W611AV
- Speed
- 1000 Mbit/s
- Weight
- 188 g
- Colour
- White

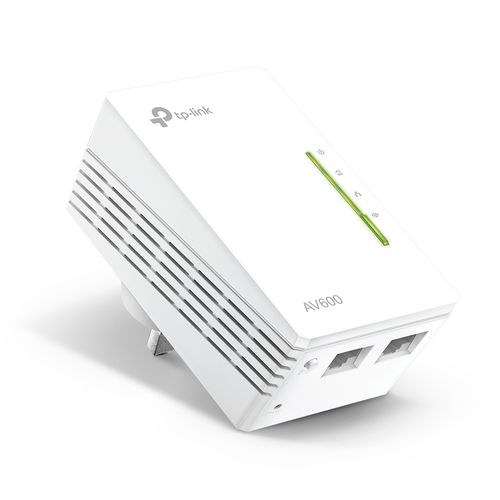

TP-Link
