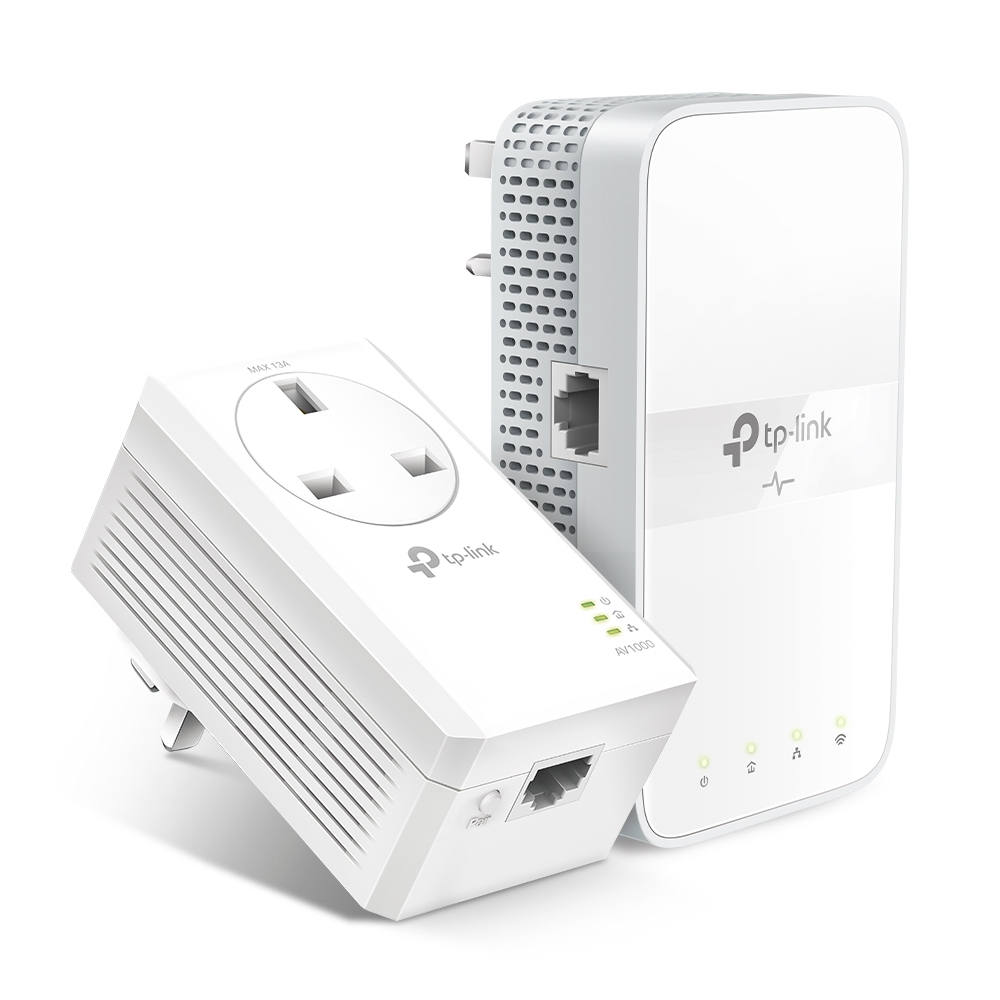

TL-WPA7617 KIT
Model TL-WPA7617 KITEAN 6935364010935
31 specifications
- Speed1000 Mbit/s
- ColourWhite
- Antenna typeInternal
- Linux operating systems supportedYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 1000 Mbit/s
- Colour
- White
- Antenna type
- Internal
- Linux operating systems supported
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- TL-WPA7617 KIT
- Part numbers
- TL-WPA7617 KIT, TL-WPA7617 KIT (UK), TL-WPA7617 KIT(FR), TL-WPA7617 KIT(CH)
- EAN / UPC
- 6935364010935, 6935364010799, 6935364010805, 4897098688434 +4 more
- Also known as
- TP-Link AV1000 Gigabit Passthrough Powerline ac Wi-Fi Kit
Specifications
31 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN | Yes |

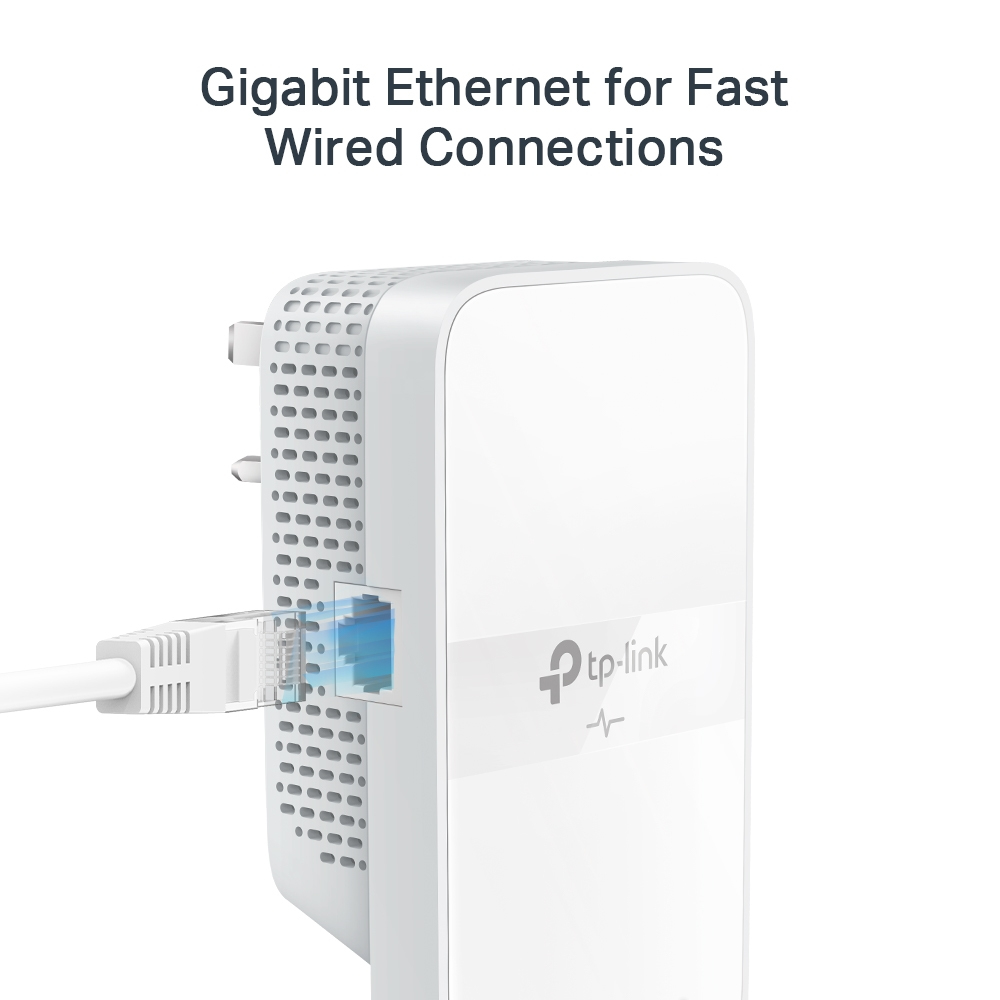

| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 300,867 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |

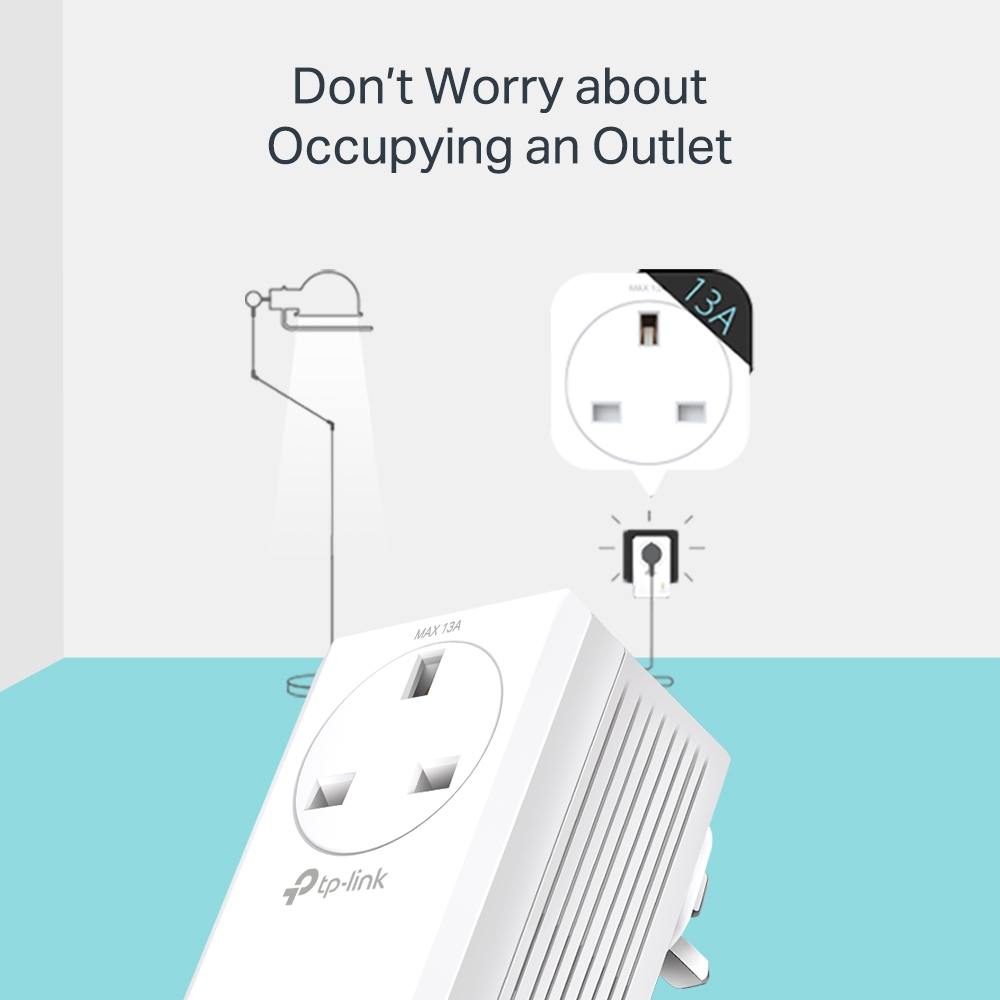

| Built-in power socket | Yes |

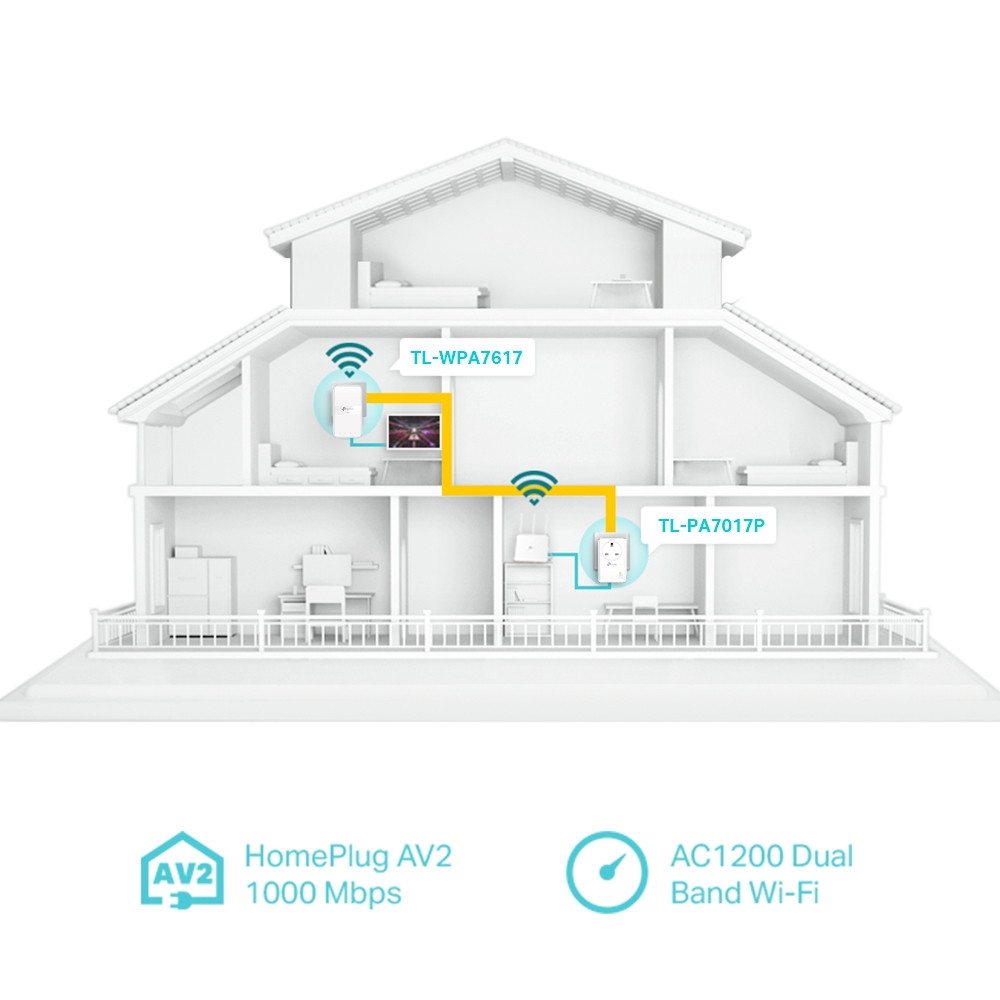

| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | 128-bit AES, WPA-PSK, WPA2-PSK |
| Maximum operating distance | 300 m |
| Encryption button | Yes |

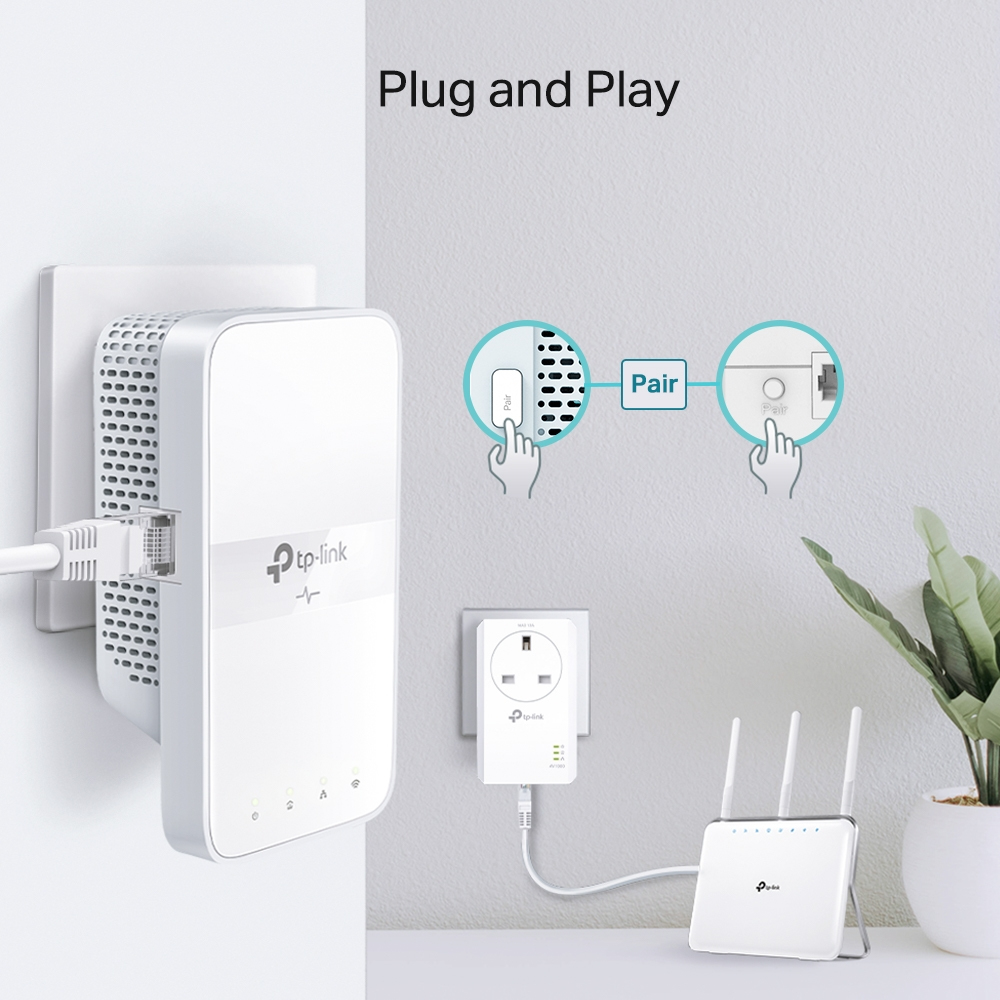

| Plug and Play | Yes |
Design
| Specification | Value |
|---|---|
| Antenna type | Internal |
| LED indicators | Yes |
| Product colour | White |
| Certification | CE, RoHS |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85171800 |
