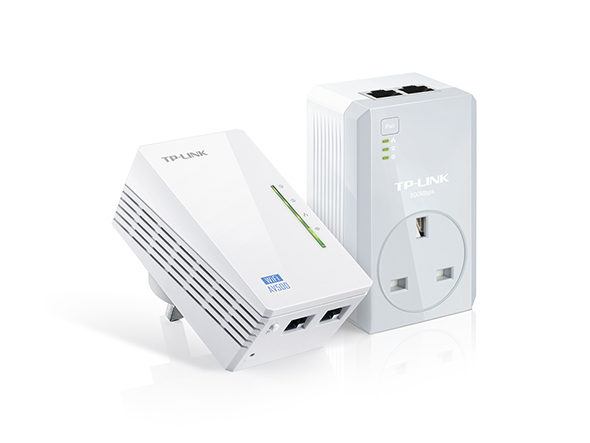

TL-WPA4226 KIT V1.2
Model TL-WPA4226 KIT V1.2EAN 5055309620331
31 specifications
- Speed600 Mbit/s
- ColourWhite
- Antenna typeInternal
- Linux operating systems supportedYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 600 Mbit/s
- Colour
- White
- Antenna type
- Internal
- Linux operating systems supported
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- TL-WPA4226 KIT V1.2
- Part number
- TL-WPA4226 KIT V1.2
- EAN / UPC
- 5055309620331
- Also known as
- TP-Link Powerline 600 Wi-Fi Kit
Specifications
31 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 600 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 600 Mbit/s |
| Networking standards | IEEE 1901, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV |
| Modulation | OFDM |
| Security algorithms | 128-bit AES, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Maximum operating distance | 300 m |
| Plug and Play | Yes |
Design
| Specification | Value |
|---|---|
| Antenna type | Internal |
| LED indicators | LAN, PLC, Power, WLAN |
| Product colour | White |
| Certification | CE, FCC, RoHS |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
