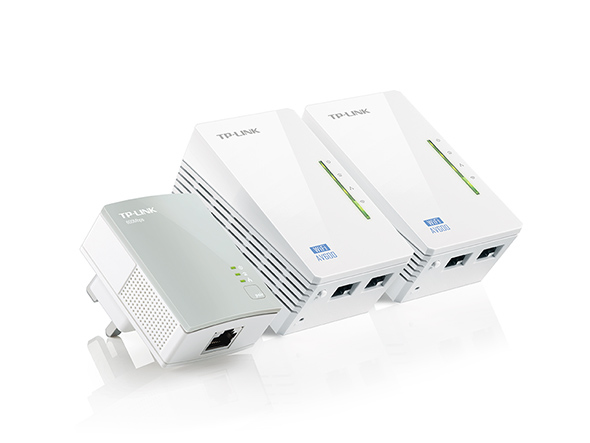

TL-WPA4220T KIT V1.20
Model TL-WPA4220T KIT V1.20Part no. TL-WPA4220T KIT V1.2
32 specifications
- Speed600 Mbit/s
- ColourWhite
- Power consumption (typical)12.302 W
- LED indicatorsPLC, Power, WLAN
- Linux operating systems supportedYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 600 Mbit/s
- Colour
- White
- Power consumption (typical)
- 12.302 W
- LED indicators
- PLC, Power, WLAN
- Linux operating systems supported
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- TL-WPA4220T KIT V1.20
- Part number
- TL-WPA4220T KIT V1.2
- Also known as
- TP-Link TL-WPA4220T KIT V1.20 600 Mbit/s Ethernet LAN Wi-Fi White 3 pc(s)
Specifications
32 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 600 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 300 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Power plug | Type G |
| Modulation | OFDM |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Maximum operating distance | 300 m |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 12.302 W |
| Power consumption (standby) | 8.78 W |
Design
| Specification | Value |
|---|---|
| LED indicators | PLC, Power, WLAN |
| Product colour | White |
| Certification | CE, FCC, RoHS |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 54 mm |
| Height | 40 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 3 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
