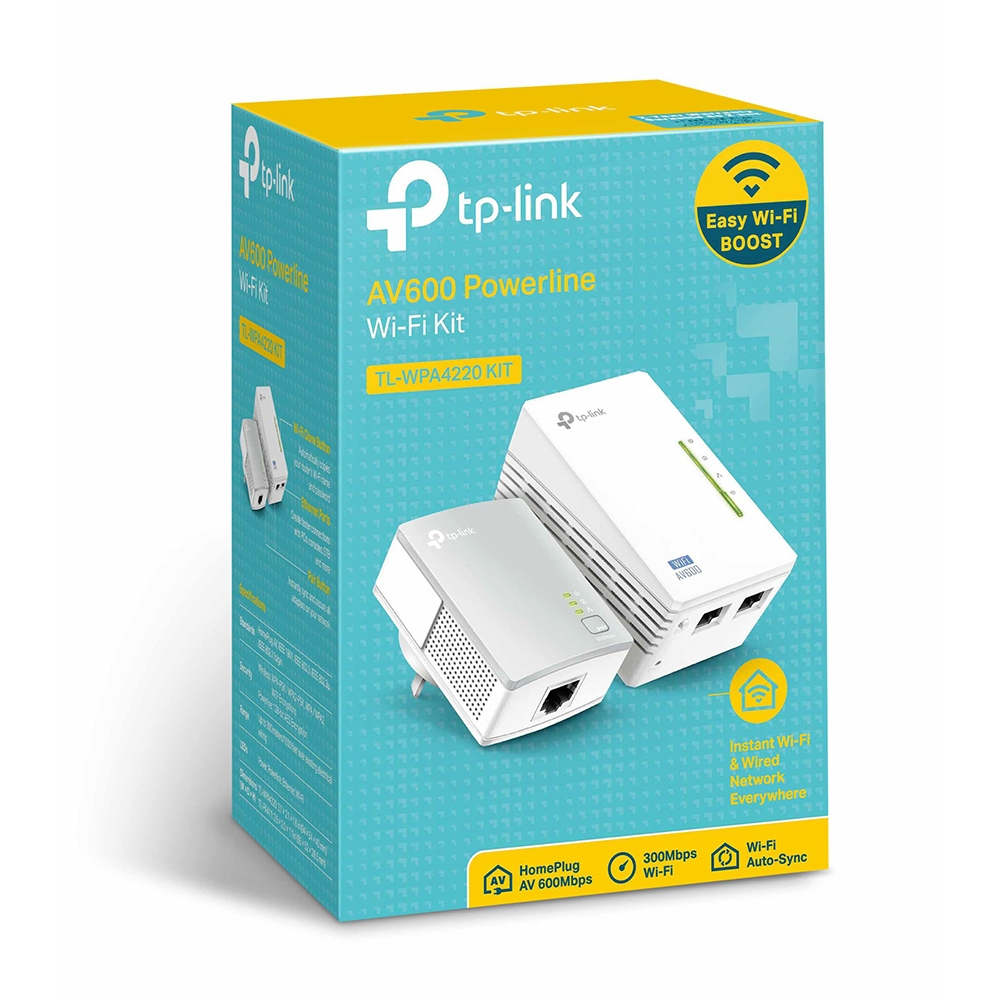

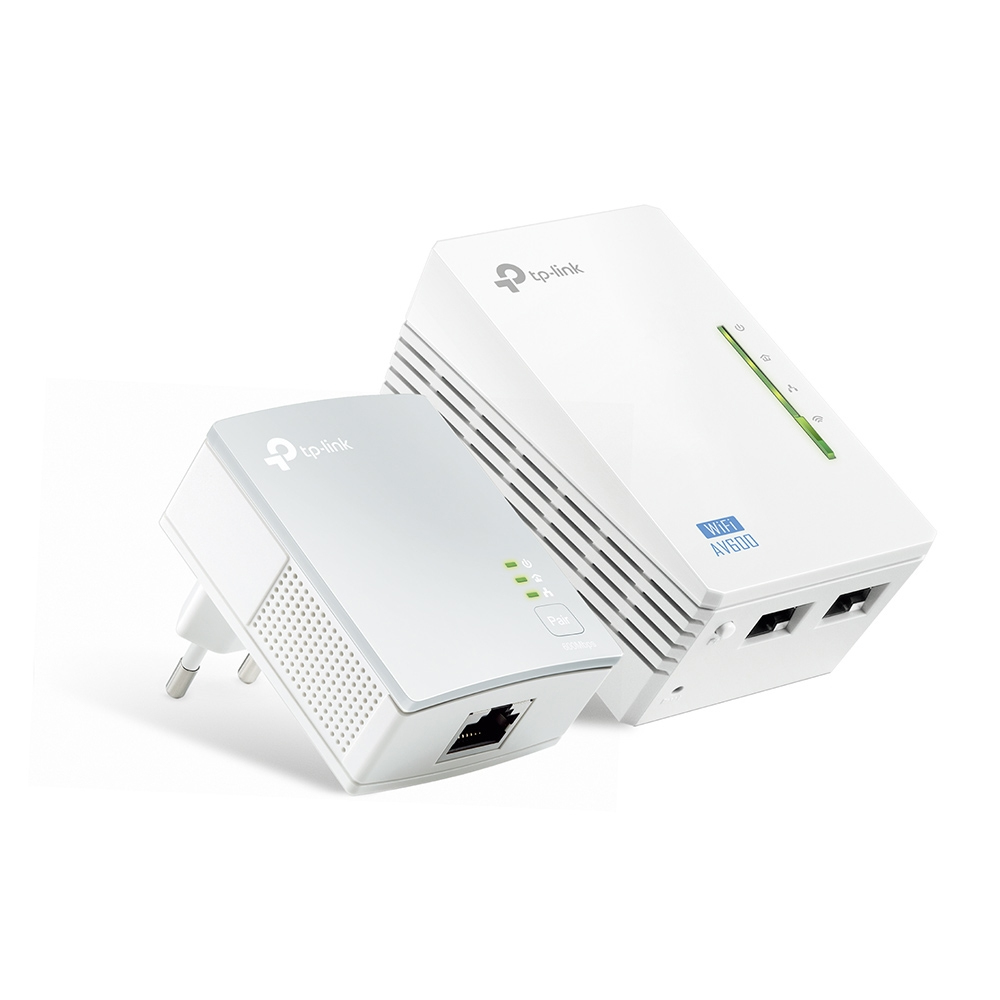

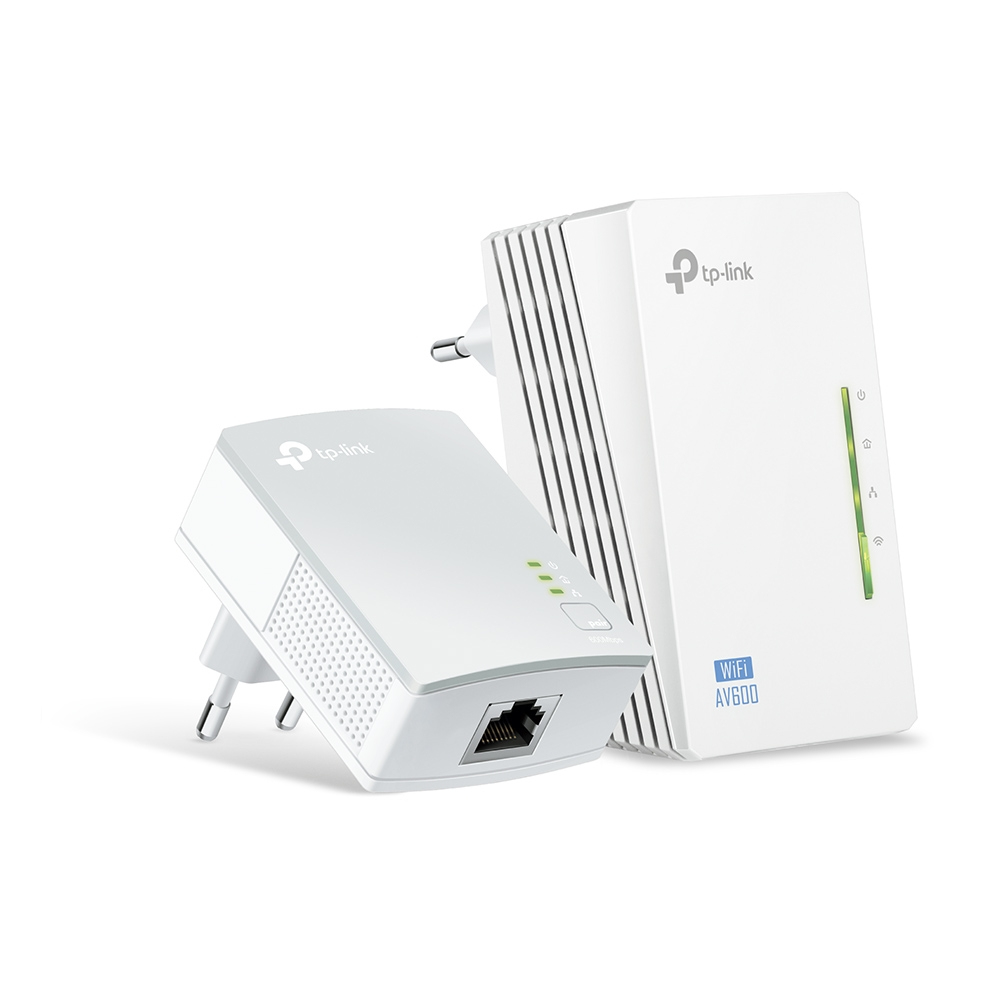

TL-WPA4220KIT V3
Model TL-WPA4220KIT V3Part no. TL-WPA4220 KIT V3
22 specifications
- Speed300 Mbit/s
- ColourGrey, White
- Power consumption (typical)7.216 W
- LED indicatorsLAN, PLC, Power, WAN
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 300 Mbit/s
- Colour
- Grey, White
- Power consumption (typical)
- 7.216 W
- LED indicators
- LAN, PLC, Power, WAN
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- TL-WPA4220KIT V3
- Part number
- TL-WPA4220 KIT V3
- Also known as
- TP-Link TL-WPA4220KIT V3 300 Mbit/s Ethernet LAN Wi-Fi Grey, White 2 pc(s)
Specifications
22 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 300 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Built-in power socket | No |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Maximum operating distance | 300 m |
| Frequency range | 2400 - 2483.5 MHz |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 7.216 W |
| Power consumption (standby) | 4.61 W |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | LAN, PLC, Power, WAN |
| Product colour | Grey, White |
| Certification | CE, FCC, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
