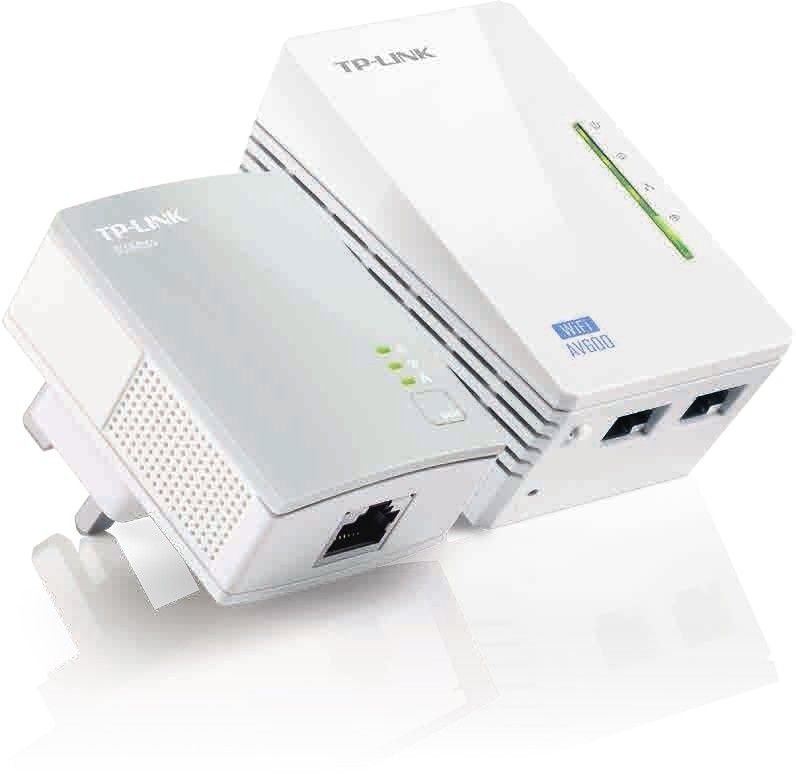

TL-WPA4220 KIT V1.20
Model TL-WPA4220 KIT V1.20Part no. TL-WPA4220 KIT V1.2
36 specifications
- Speed600 Mbit/s
- ColourWhite
- LED indicatorsYes
- Operating temperature (T-T)0 - 40 °C
- Width54 mm
Overview
- Speed
- 600 Mbit/s
- Colour
- White
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 54 mm
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- TL-WPA4220 KIT V1.20
- Part number
- TL-WPA4220 KIT V1.2
- Also known as
- TP-Link TL-WPA4220 KIT V1.20 600 Mbit/s Ethernet LAN Wi-Fi White 2 pc(s)
Specifications
36 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 600 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 300 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV |
| Modulation | OFDM |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS |
| Maximum operating distance | 300 m |
| Encryption button | Yes |
| Plug and Play | Yes |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Product colour | White |
| Certification | CE |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54 mm |
| Depth | 40 mm |
| Height | 94 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
