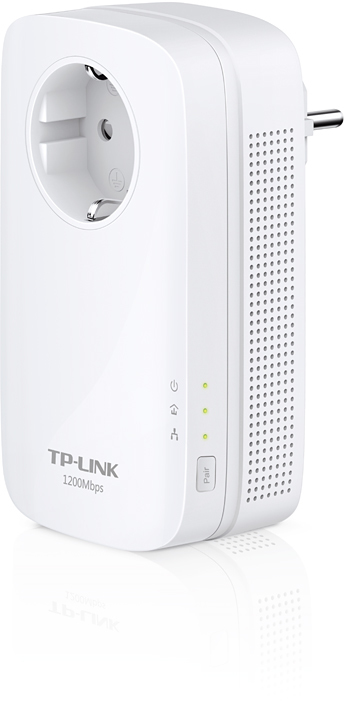

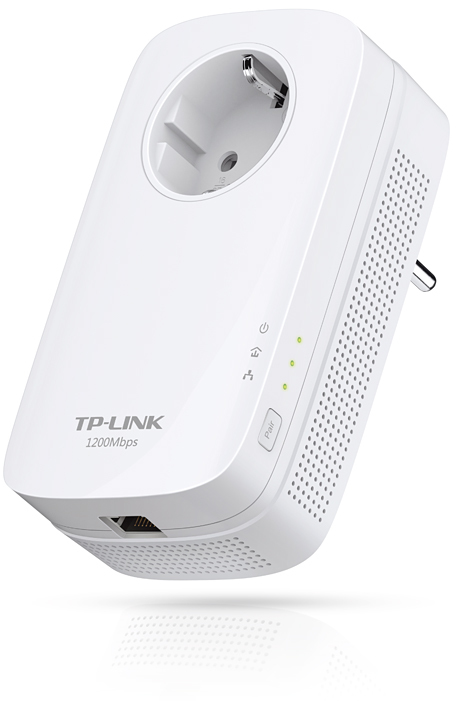

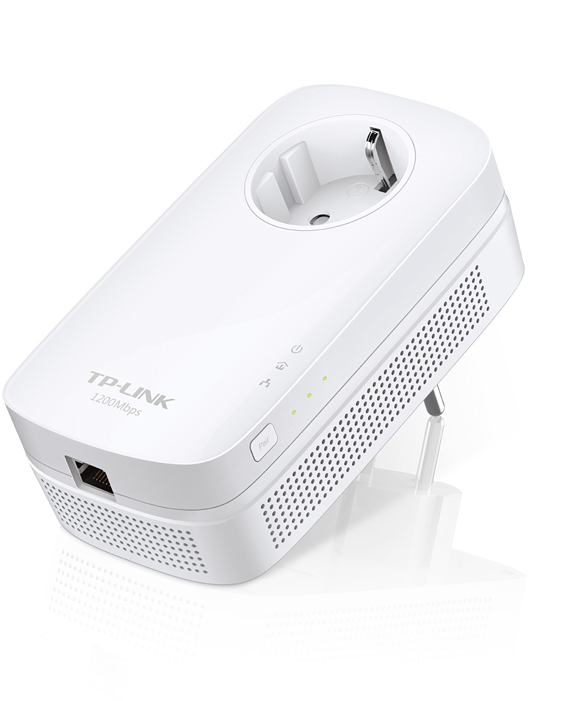

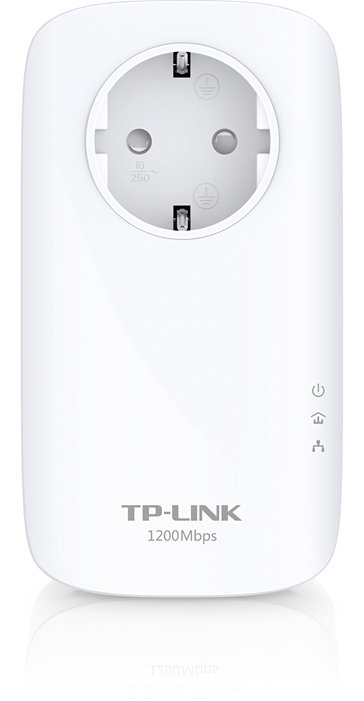

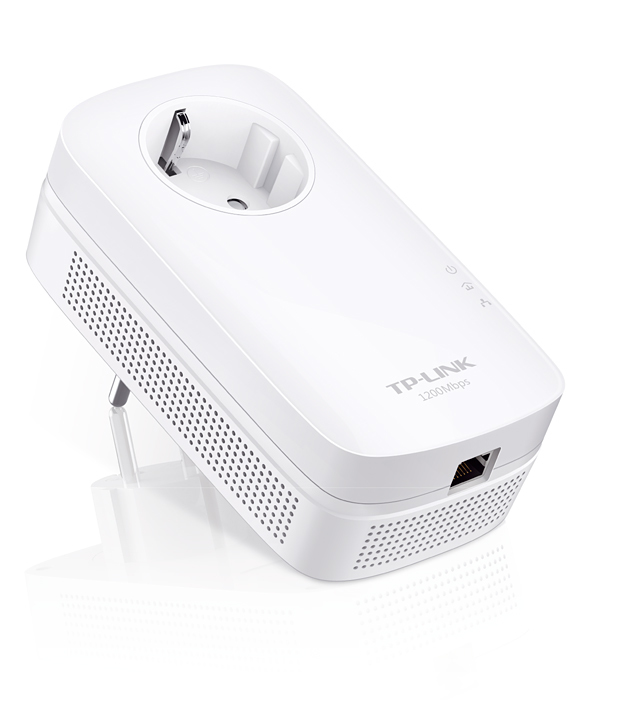

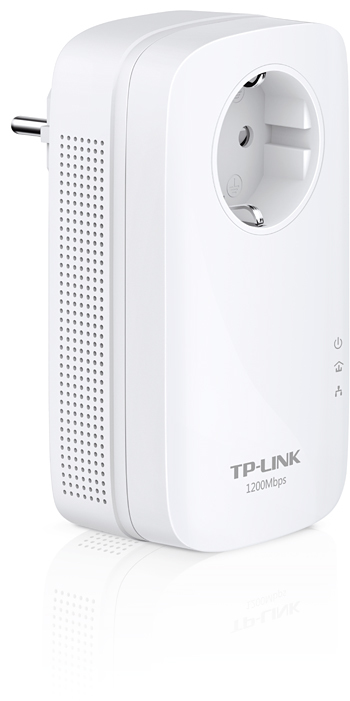

TL-PA8010P PowerLine network adapter 1200 Mbit/s Ethernet LAN White 1 pc(s)
Model TL-PA8010PEAN 6935364033118
33 specifications
- Speed1200 Mbit/s
- ColourWhite
- Power consumption (typical)6 W
- LED indicatorsYes
- Operating temperature (T-T)0 - 40 °C
- Width72 mm
Overview
- Speed
- 1200 Mbit/s
- Colour
- White
- Power consumption (typical)
- 6 W
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 72 mm
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- TL-PA8010P
- Part number
- TL-PA8010P
- EAN / UPC
- 6935364033118
- Also known as
- TP-Link TL-PA8010P PowerLine network adapter 1200 Mbit/s Ethernet LAN White 1 pc(s)
Specifications
33 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1200 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Networking standards | IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Current | 16 A |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Product colour | White |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimat |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 72 mm |
| Depth | 42 mm |
| Height | 171 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
