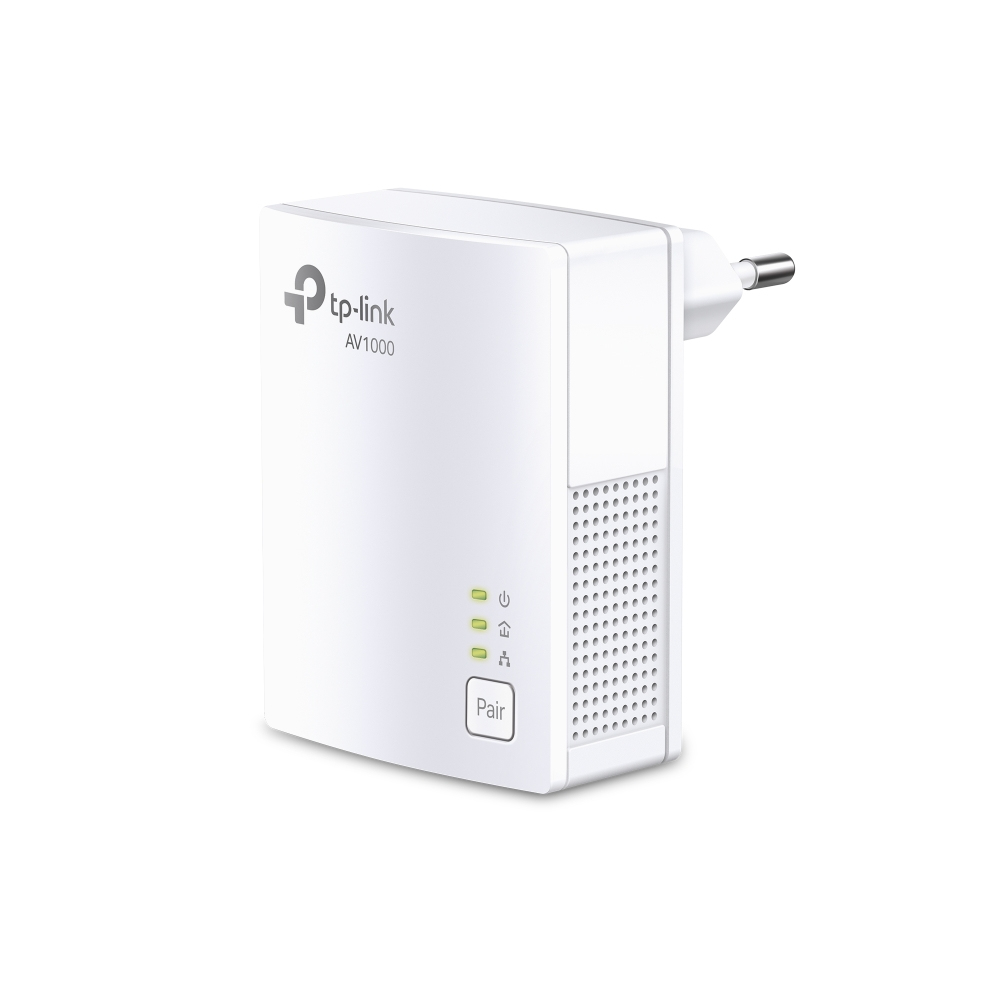

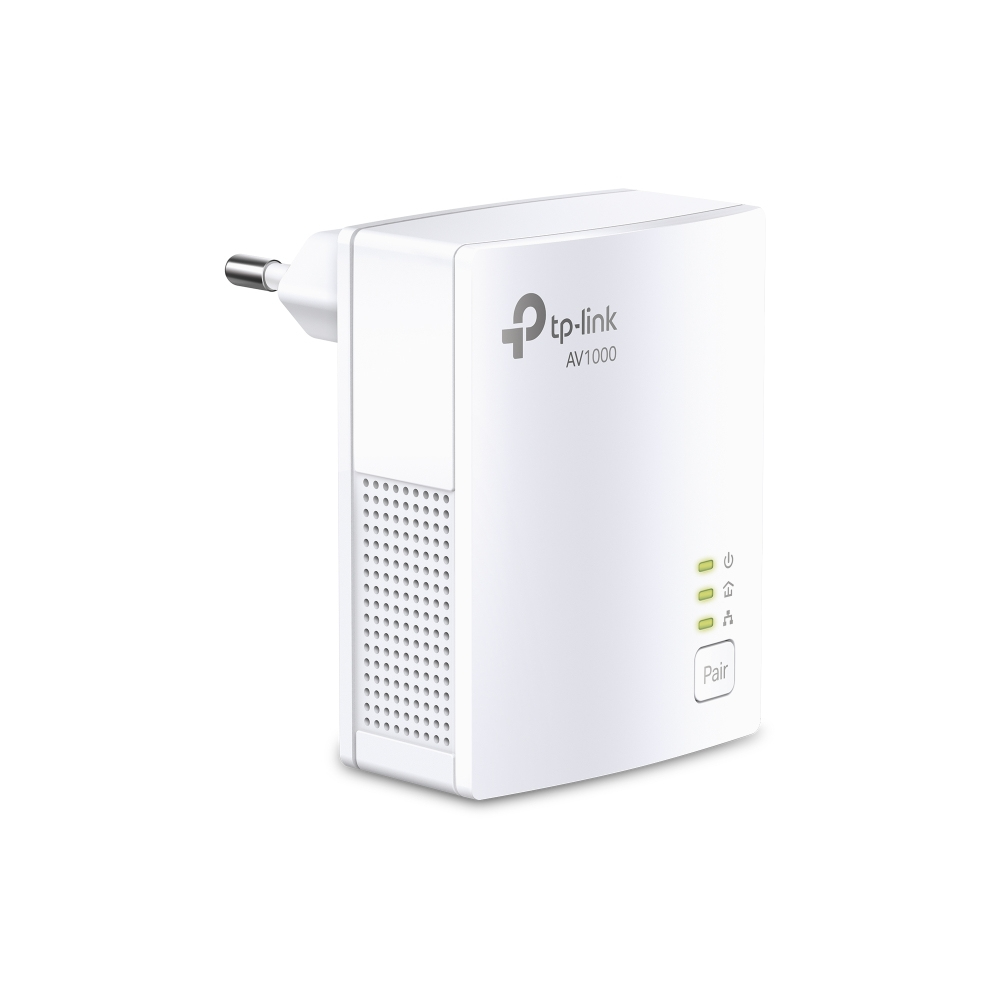

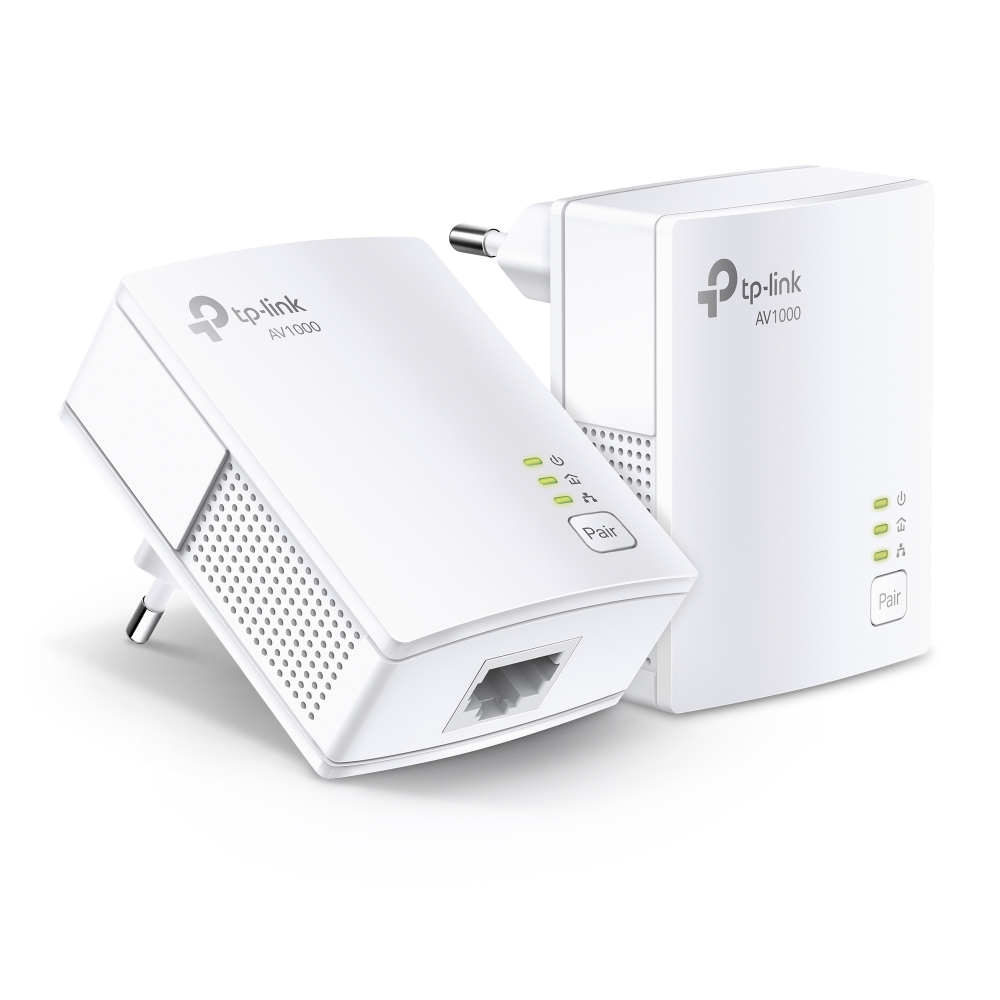

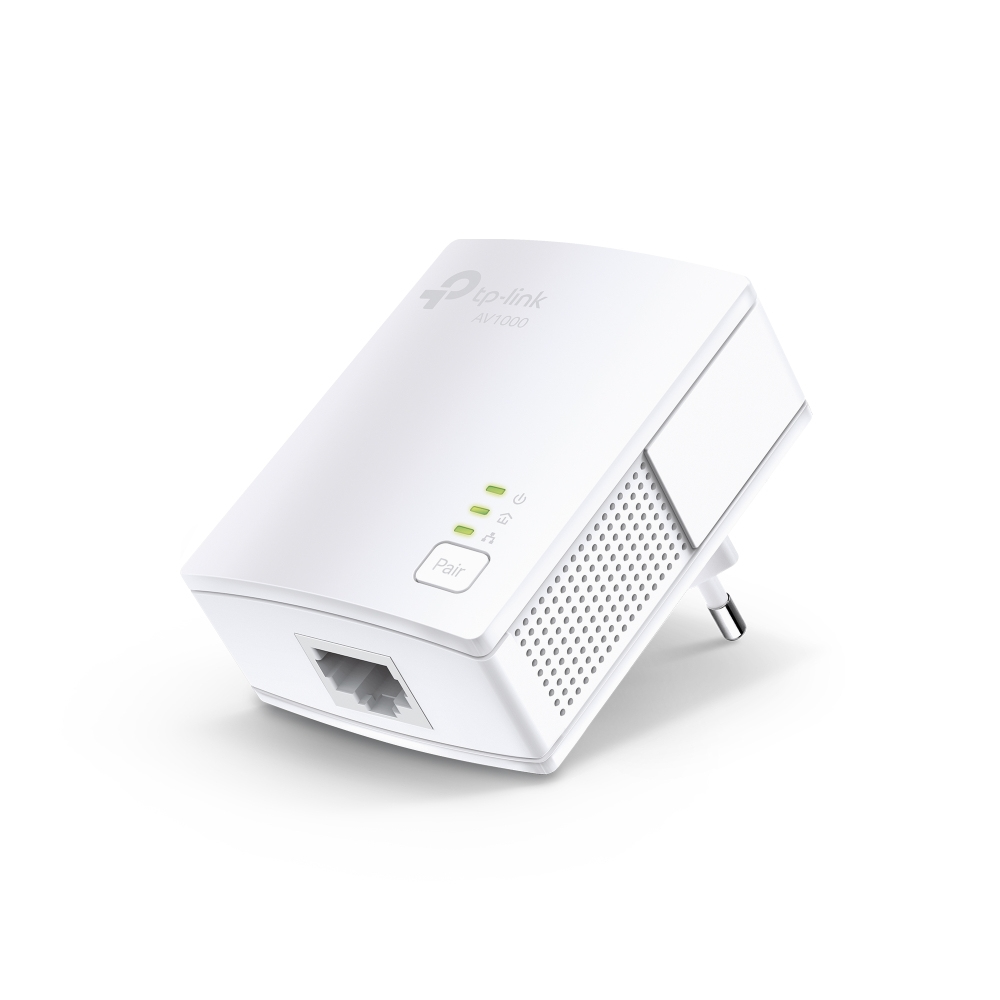

TL-PA717KIT 1000 Mbit/s Ethernet LAN White 2 pc(s)
Model TL-PA717KITPart no. TL-PA717 KITEAN 4897098688410
38 specifications
- Speed1000 Mbit/s
- ColourWhite
- Power consumption (typical)2.3 W
- LED indicatorsLAN, PLC, Power
- Linux operating systems supportedYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 1000 Mbit/s
- Colour
- White
- Power consumption (typical)
- 2.3 W
- LED indicators
- LAN, PLC, Power
- Linux operating systems supported
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- TL-PA717KIT
- Part number
- TL-PA717 KIT
- EAN / UPC
- 4897098688410
- Also known as
- TP-Link TL-PA717KIT 1000 Mbit/s Ethernet LAN White 2 pc(s)
Specifications
38 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN | Yes |

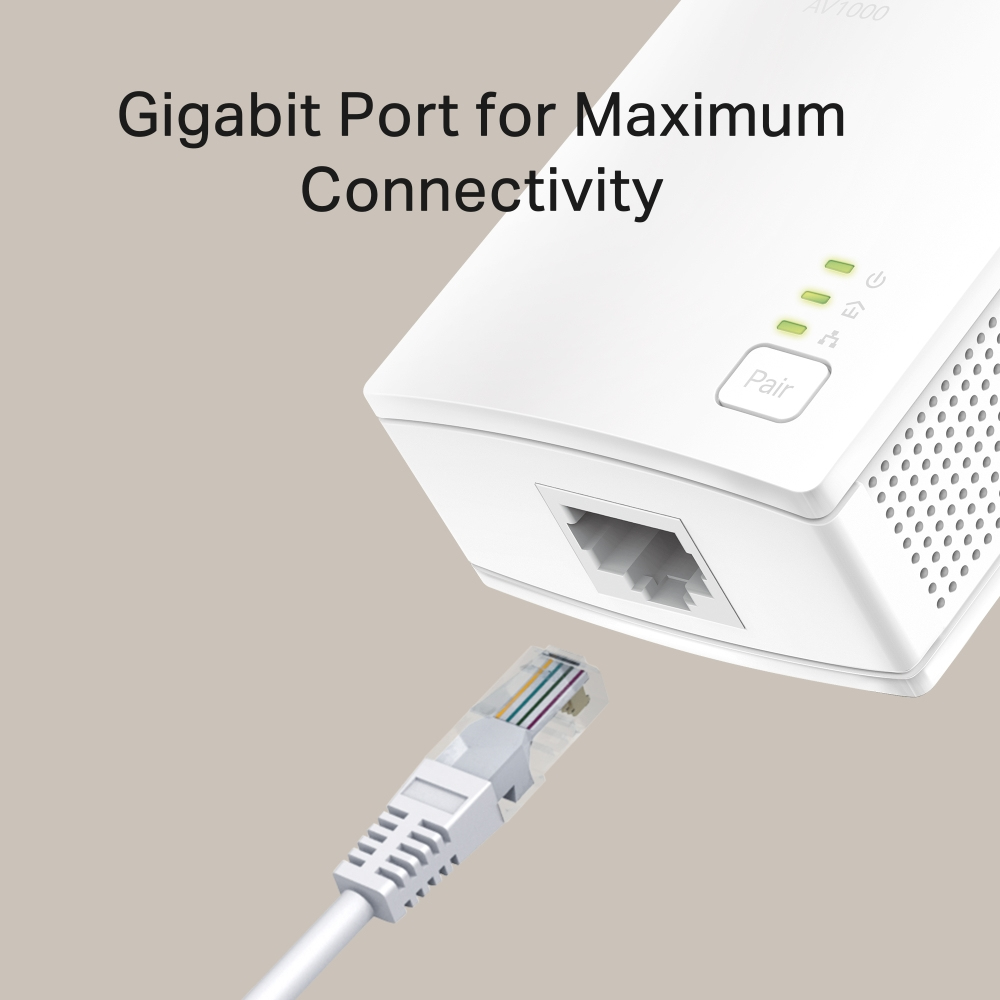

| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Networking standards | IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |

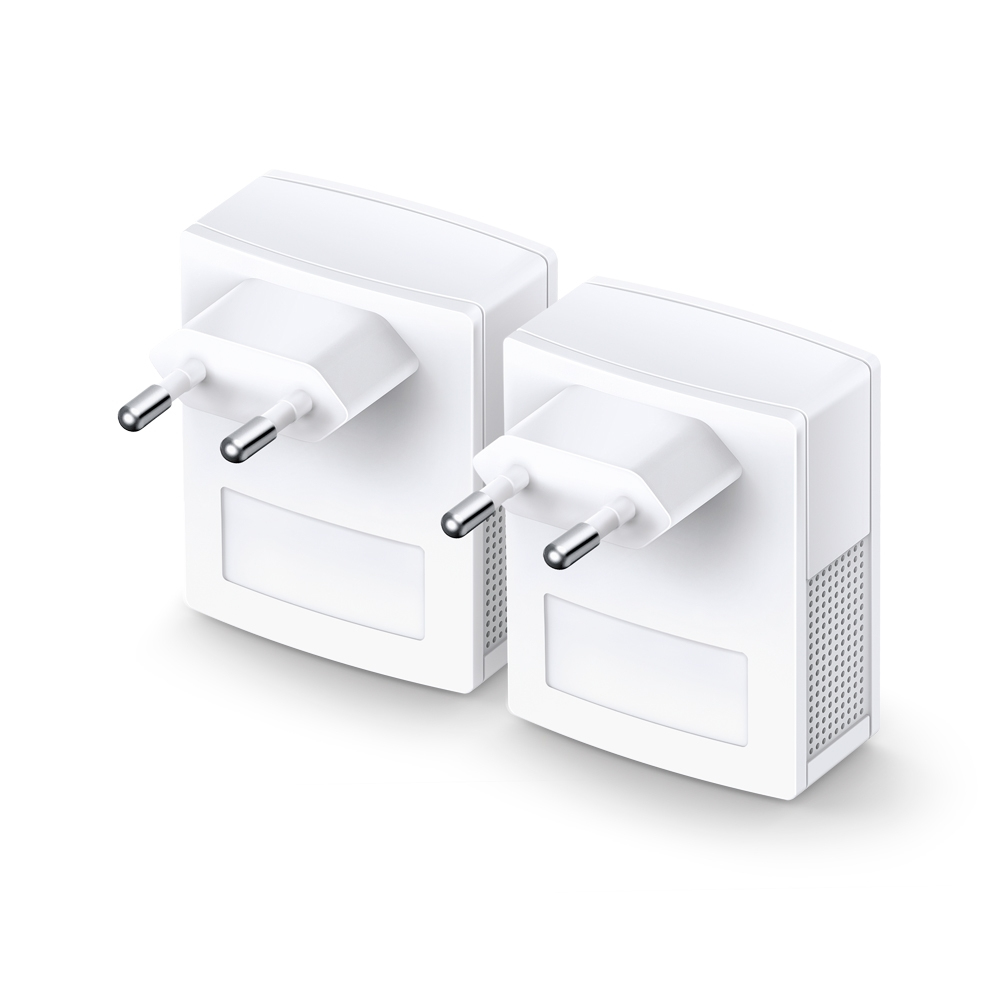

| Power plug | Type C |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |

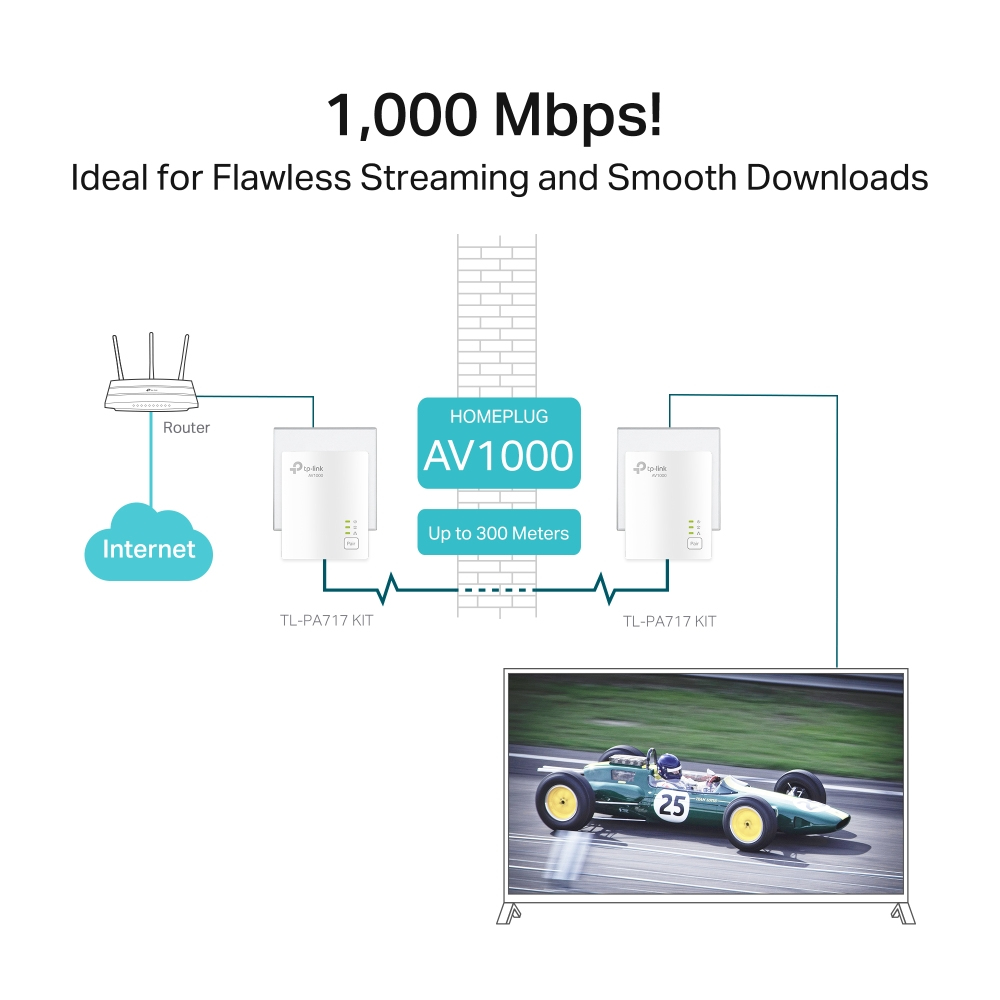

| Maximum operating distance | 300 m |
| Encryption button | Yes |

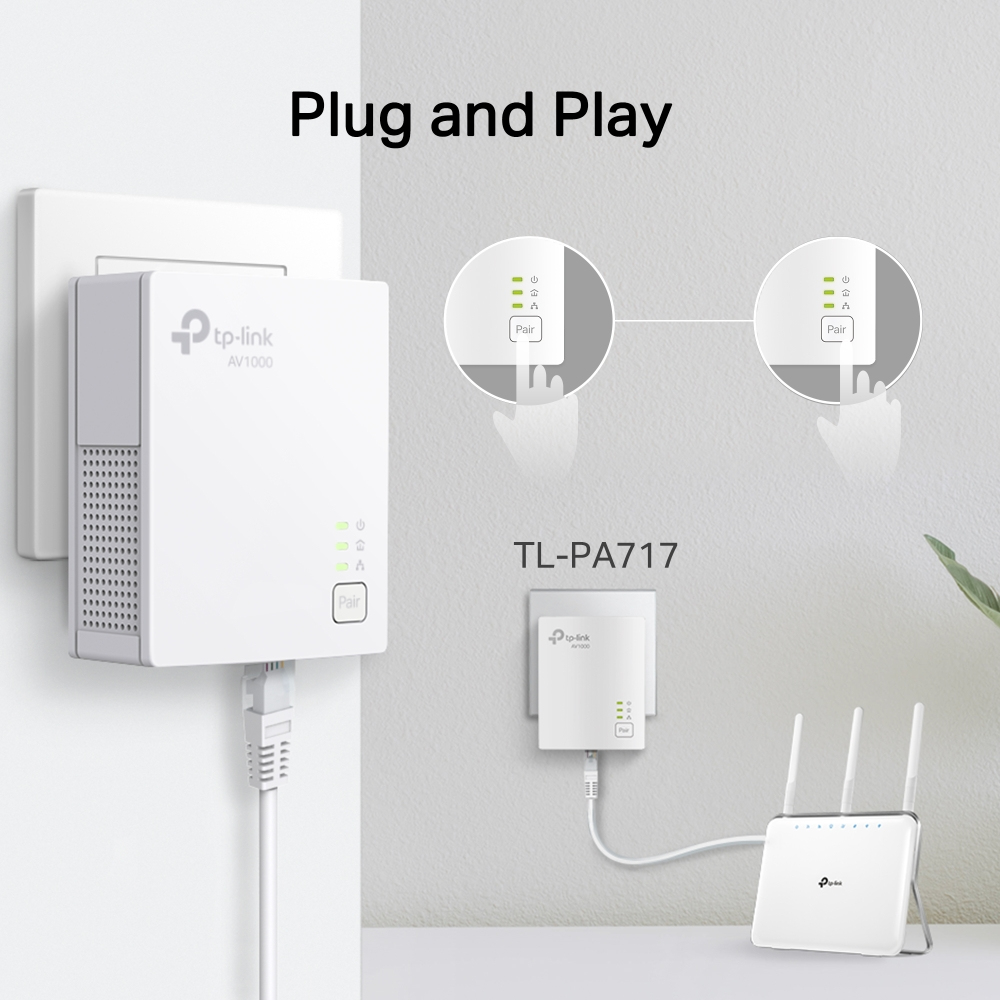

| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.3 W |
| Power consumption (standby) | 0.5 W |
Design
| Specification | Value |
|---|---|
| LED indicators | LAN, PLC, Power |
| Product colour | White |
| Certification | CE, RoHS |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Window |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 52 mm |
| Height | 28.5 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package width | 190 mm |
| Package depth | 136 mm |
| Package height | 100 mm |
| Package weight | 410 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
