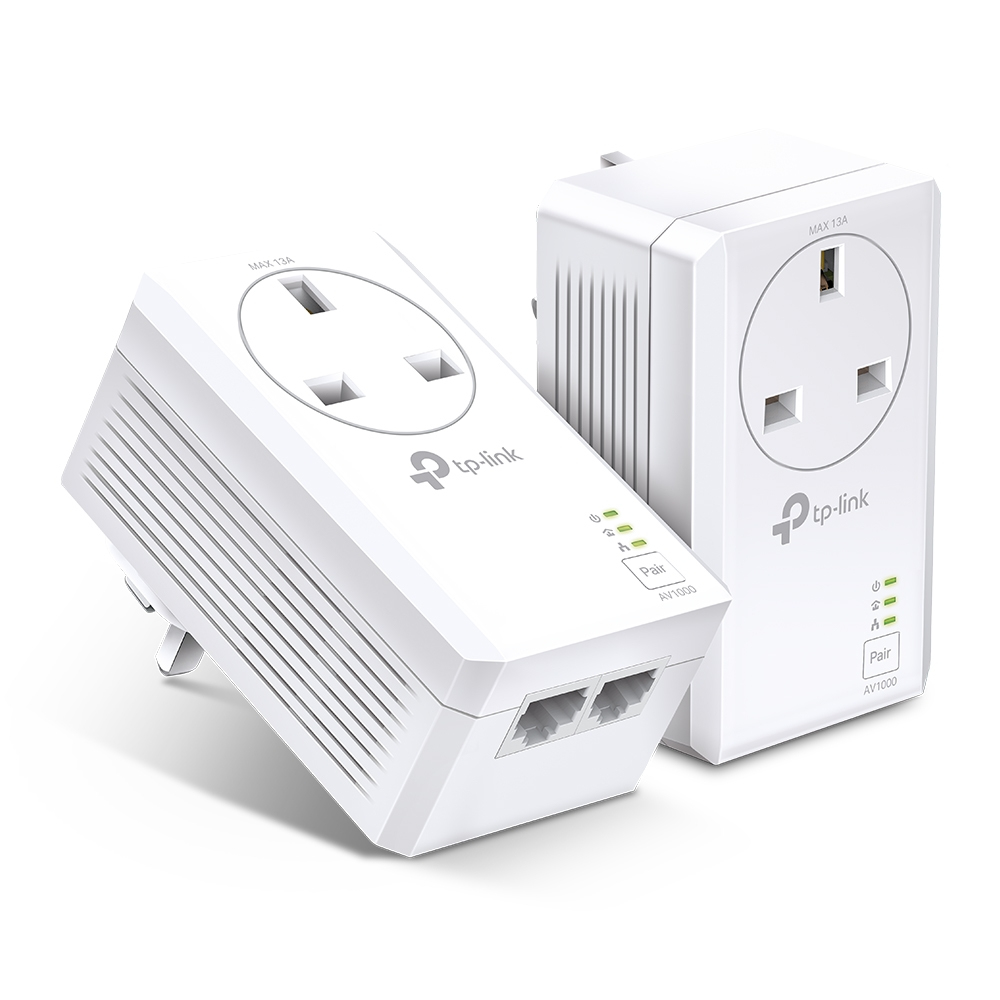

TL-PA7027P KIT
Model TL-PA7027P KITEAN 1210002614306
37 specifications
- Speed1000 Mbit/s
- ColourWhite
- Power consumption (typical)4 W
- Antenna typeInternal
- Linux operating systems supportedYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 1000 Mbit/s
- Colour
- White
- Power consumption (typical)
- 4 W
- Antenna type
- Internal
- Linux operating systems supported
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- TL-PA7027P KIT
- Part numbers
- TL-PA7027P KIT, TL-PA7027P KIT (UK)
- EAN / UPC
- 1210002614306, 6935364052843, 6935364072247, 6935364052577
- Also known as
- TP-Link AV1000 2-Port Gigabit Passthrough Powerline Starter Kit
Specifications
37 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Networking standards | IEEE 1901, IEEE 802.3, IEEE 802.3u |
| Power plug | Type G |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV2 |
| Modulation | COFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Encryption button | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 4 W |
| Power consumption (standby) | 0.84 W |
Design
| Specification | Value |
|---|---|
| Antenna type | Internal |

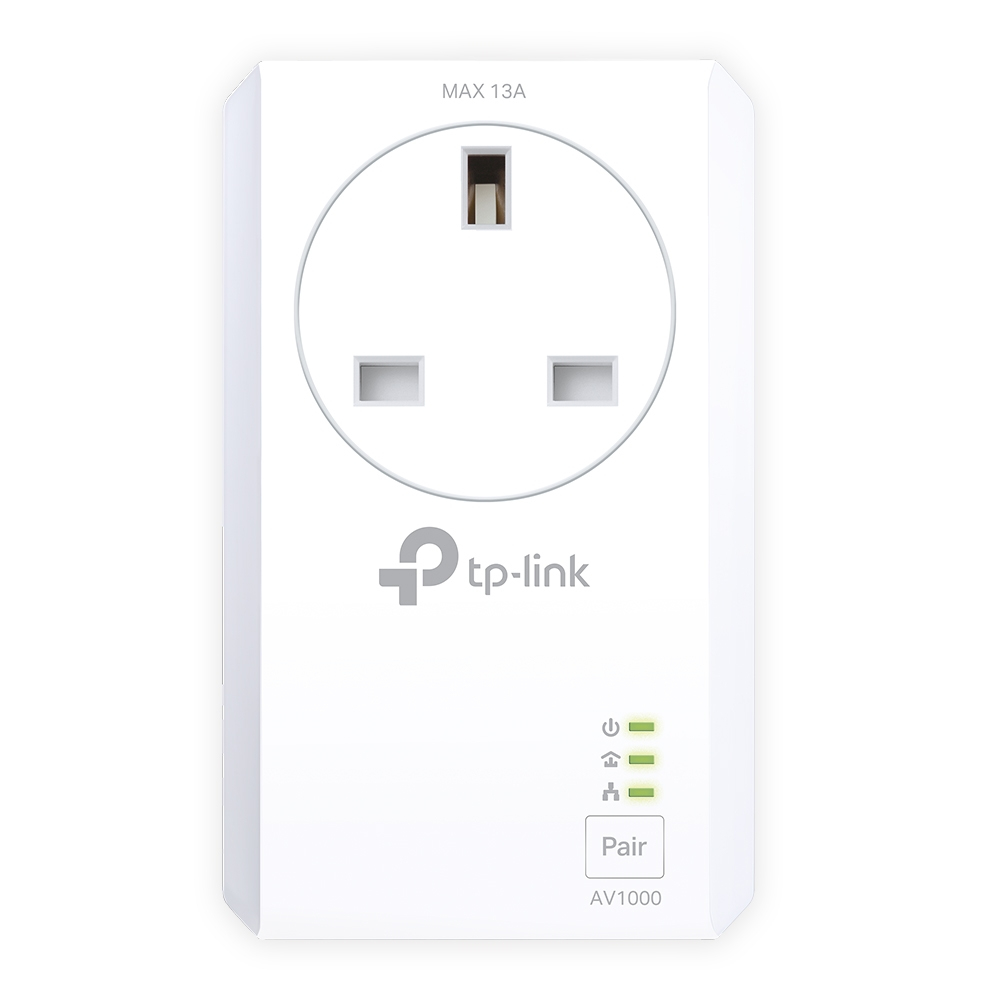

| LED indicators | LAN, Power |
| Product colour | White |
| Certification | CE, RoHS |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |

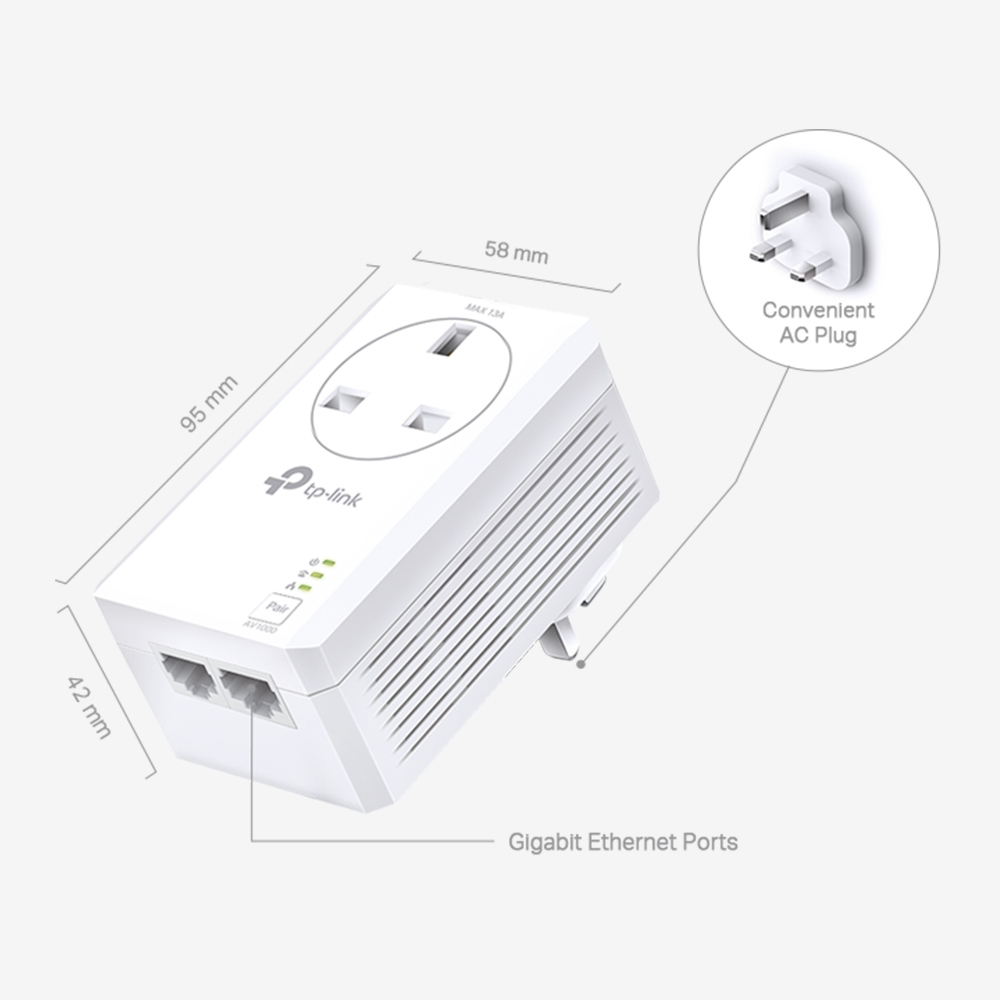

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58 mm |
| Depth | 42 mm |
| Height | 95 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Manual | Yes |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85171800 |
