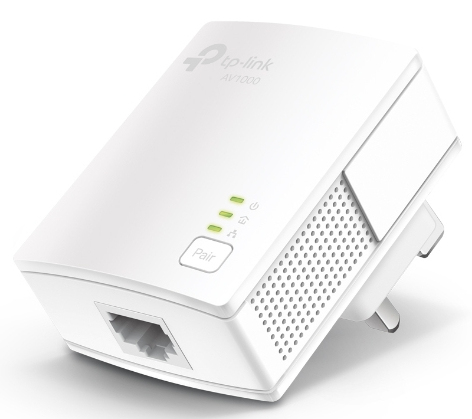

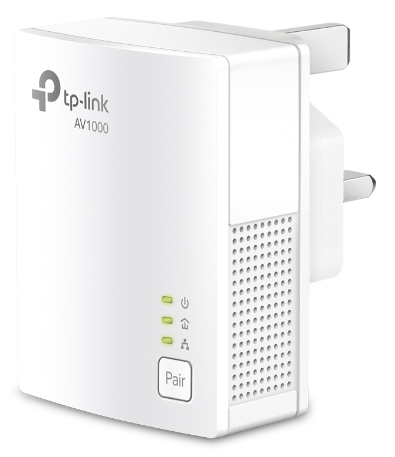

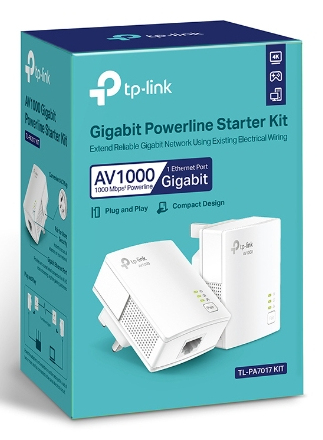

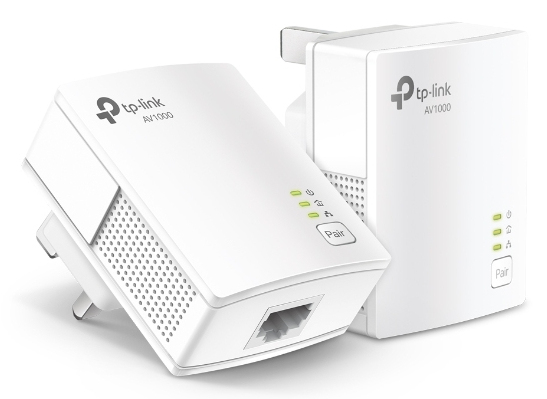

TL-PA7017 KIT
Model TL-PA7017 KITEAN 6935364089054
36 specifications
- Speed1000 Mbit/s
- ColourWhite
- Power consumption (typical)2.3 W
- Antenna typeInternal
- Windows operating systems supportedYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 1000 Mbit/s
- Colour
- White
- Power consumption (typical)
- 2.3 W
- Antenna type
- Internal
- Windows operating systems supported
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- TL-PA7017 KIT
- Part numbers
- TL-PA7017 KIT, TL-PA7017 KIT (UK), TL-PA7017 KIT V4
- EAN / UPC
- 6935364089054, 6935364089092, 840460605908, 845973010133 +2 more
- Also known as
- TP-Link TL-PA7017 KIT 1000 Mbit/s Ethernet LAN White 2 pc(s)
Specifications
36 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 1901 |
| Power plug | Type F |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.3 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
Design
| Specification | Value |
|---|---|
| Antenna type | Internal |
| LED indicators | LAN, PLC, Power |
| Product colour | White |
| Certification | CE |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 28.5 mm |
| Height | 52 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85171800 |
