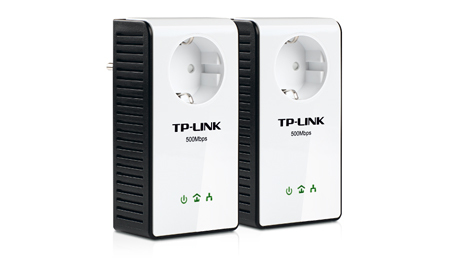

TL-PA551KIT 500 Mbit/s Ethernet LAN Black, White 2 pc(s)
Model TL-PA551KITPart no. TL-PA551 KITEAN 6935364031824
31 specifications
- Speed500 Mbit/s
- ColourBlack, White
- Power consumption (typical)6 W
- LED indicatorsLAN, Power
- Linux operating systems supportedYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 500 Mbit/s
- Colour
- Black, White
- Power consumption (typical)
- 6 W
- LED indicators
- LAN, Power
- Linux operating systems supported
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- TL-PA551KIT
- Part number
- TL-PA551 KIT
- EAN / UPC
- 6935364031824, 5053959162775, 5053959235080, 5054063017241 +3 more
- Also known as
- TP-Link TL-PA551KIT 500 Mbit/s Ethernet LAN Black, White 2 pc(s)
Specifications
31 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 500 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV |
| Modulation | 1024-QAM, 16-QAM, 256-QAM, 64-QAM, 8-QAM, BPSK, DQPSK, OFDM, ROBO |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Quality of Service (QoS) support | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
Design
| Specification | Value |
|---|---|
| LED indicators | LAN, Power |
| Product colour | Black, White |
| Certification | CE, FCC |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Busines |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 126 mm |
| Depth | 64 mm |
| Height | 42 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
