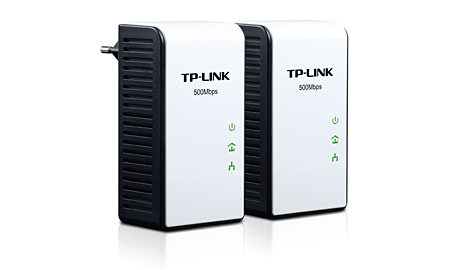

TL-PA511KIT PowerLine network adapter 500 Mbit/s Ethernet LAN Black, White 2 pc(s)
Model TL-PA511KITEAN 8459730315892
33 specifications
- Speed500 Mbit/s
- ColourBlack, White
- Power consumption (typical)6 W
- LED indicatorsLAN, Power, Yes
- Windows operating systems supportedYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 500 Mbit/s
- Colour
- Black, White
- Power consumption (typical)
- 6 W
- LED indicators
- LAN, Power, Yes
- Windows operating systems supported
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- TL-PA511KIT
- Part number
- TL-PA511KIT
- EAN / UPC
- 8459730315892, 191120100616, 803982811301, 845973031589 +8 more
- Also known as
- TP-Link TL-PA511KIT PowerLine network adapter 500 Mbit/s Ethernet LAN Black, White 2 pc(s)
Specifications
33 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 500 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV |
| Modulation | 1024-QAM, 16-QAM, 256-QAM, 64-QAM, 8-QAM, BPSK, OFDM, QPSK |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Encryption button | Yes |
| Quality of Service (QoS) support | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
Design
| Specification | Value |
|---|---|
| LED indicators | LAN, Power, Yes |
| Product colour | Black, White |
| Certification | CE, FCC |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58 mm |
| Depth | 40 mm |
| Height | 105 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
