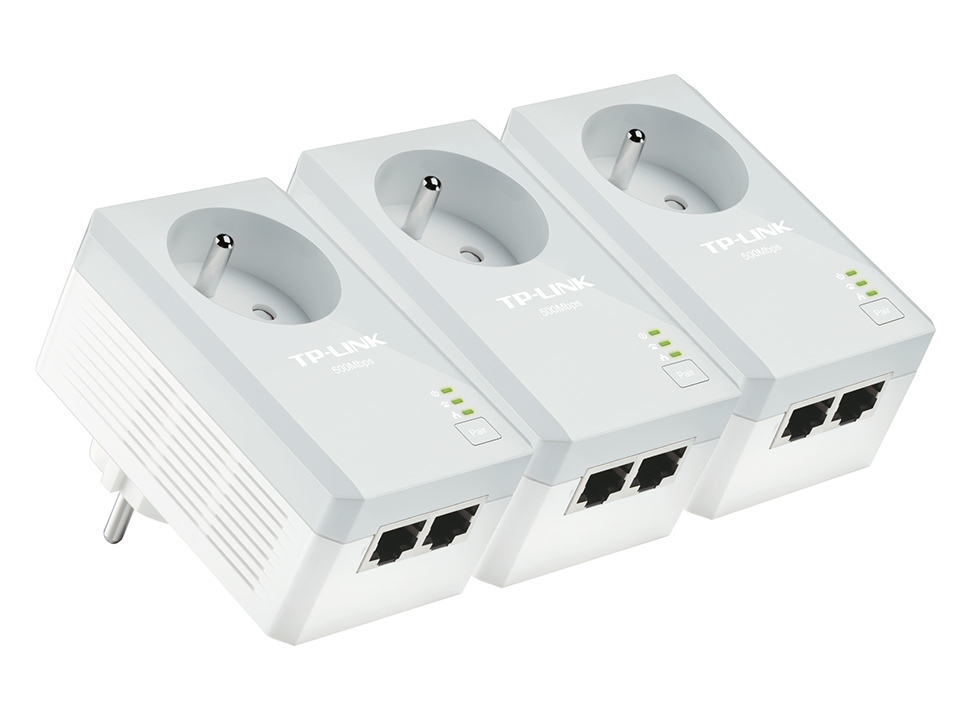

TL-PA4025PT KIT
Model TL-PA4025PT KITEAN 6935364091293
39 specifications
- Speed500 Mbit/s
- ColourWhite
- Power consumption (typical)7.8 W
- Antenna typeInternal
- Linux operating systems supportedYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 500 Mbit/s
- Colour
- White
- Power consumption (typical)
- 7.8 W
- Antenna type
- Internal
- Linux operating systems supported
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- TL-PA4025PT KIT
- Part number
- TL-PA4025PT KIT
- EAN / UPC
- 6935364091293
- Also known as
- TP-Link TL-PA4025PT KIT PowerLine network adapter 500 Mbit/s Ethernet LAN White 3 pc(s)
Specifications
39 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 500 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | No |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Power plug | Type C |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 7.8 W |
| Power consumption (standby) | 1.38 W |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Current | 16 A |
Design
| Specification | Value |
|---|---|
| Antenna type | Internal |
| LED indicators | LAN, PLC, Power |
| Product colour | White |
| Certification | CE, FCC |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vis |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 58 mm |
| Height | 42 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 3 pc(s) |
| Manual | Yes |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
