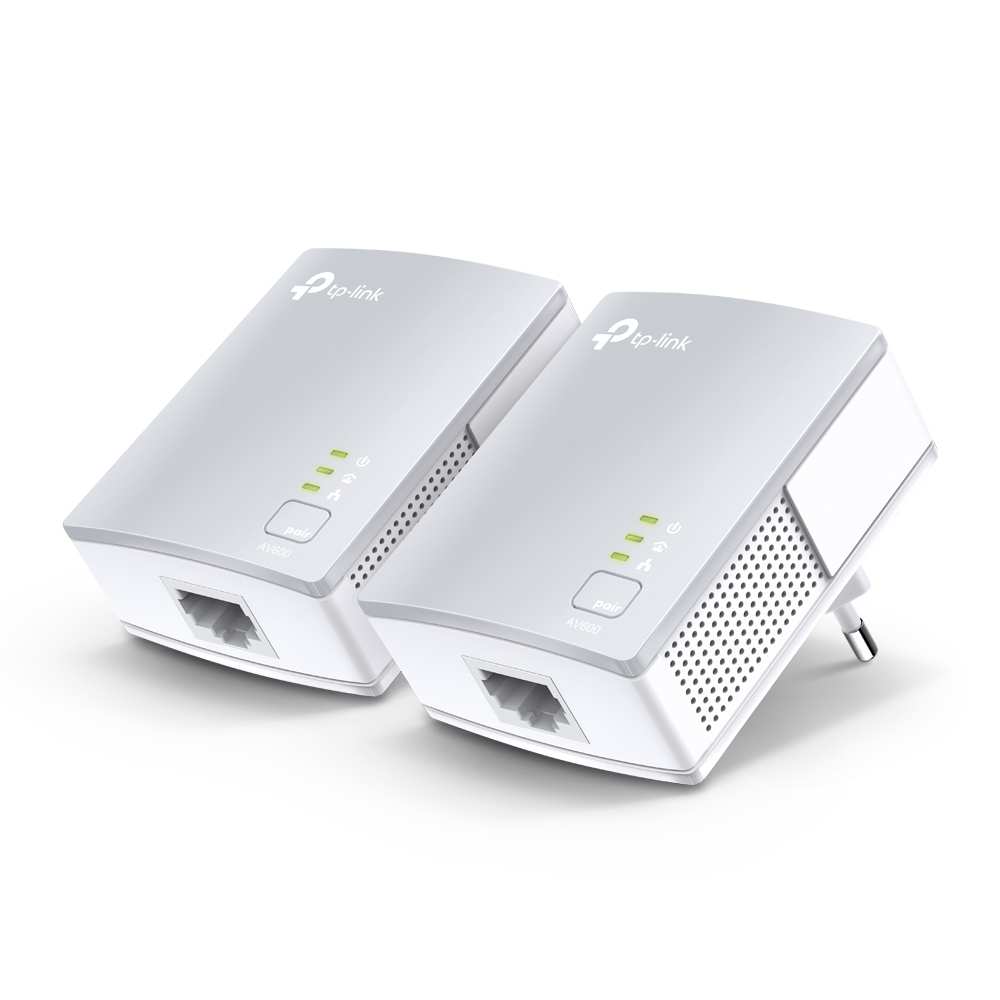

AV500 Nano Powerline Adapter Starter Kit
Model PA411KITPart no. TL-PA411 KITEAN 6935364031732
32 specifications
- Speed500 Mbit/s
- ColourWhite
- Power consumption (typical)2 W
- LED indicatorsLAN, PLC, Power
- Linux operating systems supportedYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 500 Mbit/s
- Colour
- White
- Power consumption (typical)
- 2 W
- LED indicators
- LAN, PLC, Power
- Linux operating systems supported
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- PA411KIT
- Part number
- TL-PA411 KIT
- EAN / UPC
- 6935364031732, 132017707983, 151903616277, 168141321917 +13 more
- Also known as
- TP-Link AV500 Nano Powerline Adapter Starter Kit
Specifications
32 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 500 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Built-in power socket | No |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Quality of Service (QoS) support | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2 W |
Design
| Specification | Value |
|---|---|
| LED indicators | LAN, PLC, Power |
| Product colour | White |
| Certification | FCC |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 52 mm |
| Height | 28.5 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85171800 |
