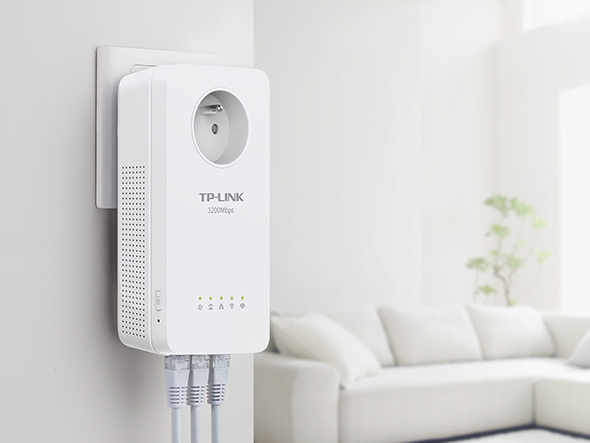

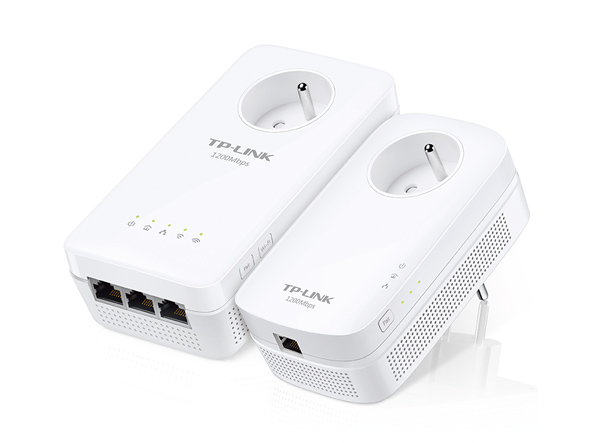

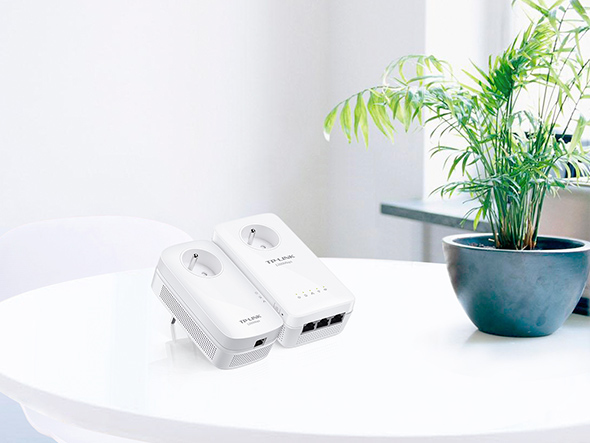

AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit
Model AV1300Part no. TL-PA8030P KIT-REACONDEAN 8435280924722
38 specifications
- Speed1300 Mbit/s
- ColourWhite
- Power consumption (typical)10.8 W
- Antenna typeInternal
- Windows operating systems supportedYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 1300 Mbit/s
- Colour
- White
- Power consumption (typical)
- 10.8 W
- Antenna type
- Internal
- Windows operating systems supported
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- PowerLine Network Adapter
- Model
- AV1300
- Part numbers
- TL-PA8030P KIT-REACOND, TL-WPA8635P KIT, TL-WPA8635P (BE)
- EAN / UPC
- 8435280924722, 845973099770, 6935364006389, 6935364072223 +2 more
- Also known as
- TP-Link AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit
Specifications
38 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1300 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 3 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 300,867 Mbit/s |
| Networking standards | IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | 128-bit AES, WEP, WPA, WPA2, WPA3 |
| Maximum operating distance | 300 m |
| Encryption button | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10.8 W |
| Power consumption (standby) | 5 W |
Design
| Specification | Value |
|---|---|
| Antenna type | Internal |
| LED indicators | LAN, Power, WLAN |
| Product colour | White |
| Certification | CE |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 190 mm |
| Package height | 100 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
