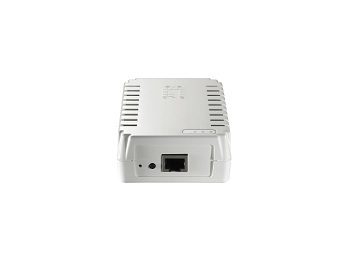

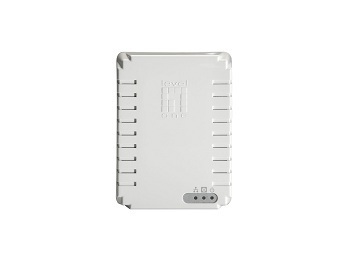

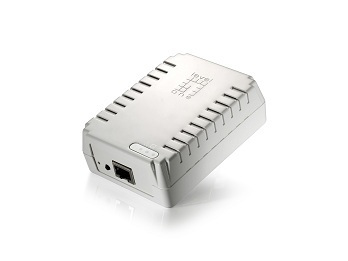

PLI-3021 PowerLine network adapter 200 Mbit/s Ethernet LAN White 1 pc(s)
Model PLI-3021EAN 846359016176
28 specifications
- Speed200 Mbit/s
- ColourWhite
- Power consumption (standby)1 W
- LED indicatorsLink
- Operating temperature (T-T)0 - 40 °C
- Width73 mm
Overview
- Speed
- 200 Mbit/s
- Colour
- White
- Power consumption (standby)
- 1 W
- LED indicators
- Link
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 73 mm
- Brand
- LevelOne
- Category
- PowerLine Network Adapter
- Model
- PLI-3021
- Part number
- PLI-3021
- EAN / UPC
- 846359016176, 4015867166833, 4056572587124, 5054533876569
- Also known as
- LevelOne PLI-3021 PowerLine network adapter 200 Mbit/s Ethernet LAN White 1 pc(s)
Specifications
28 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 200 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV |
| Modulation | 1024-QAM, 16-QAM, 256-QAM, 64-QAM, 8-QAM, BPSK, OFDM, QPSK |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Encryption button | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 1 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | Link |
| Product colour | White |
| Certification | FCC, CE |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Busin |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 73 mm |
| Depth | 34 mm |
| Height | 99 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Cables included | LAN (RJ-45) |
