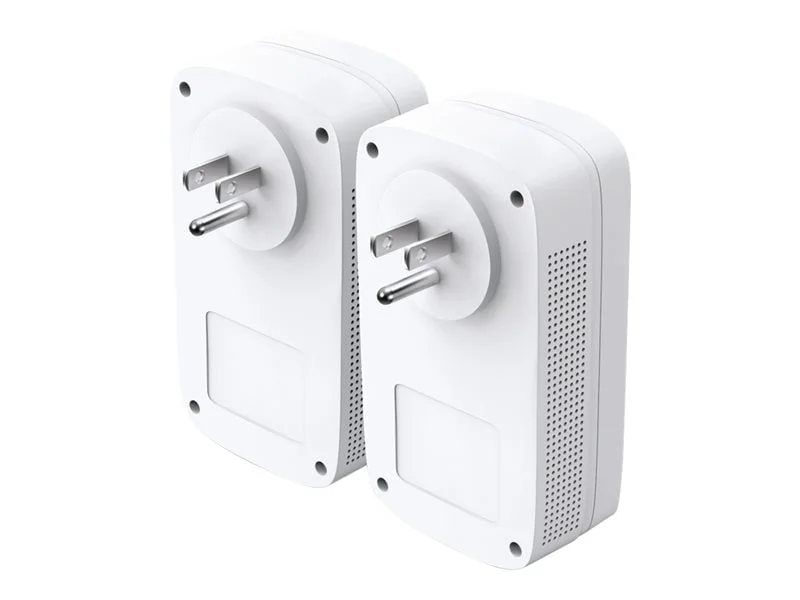

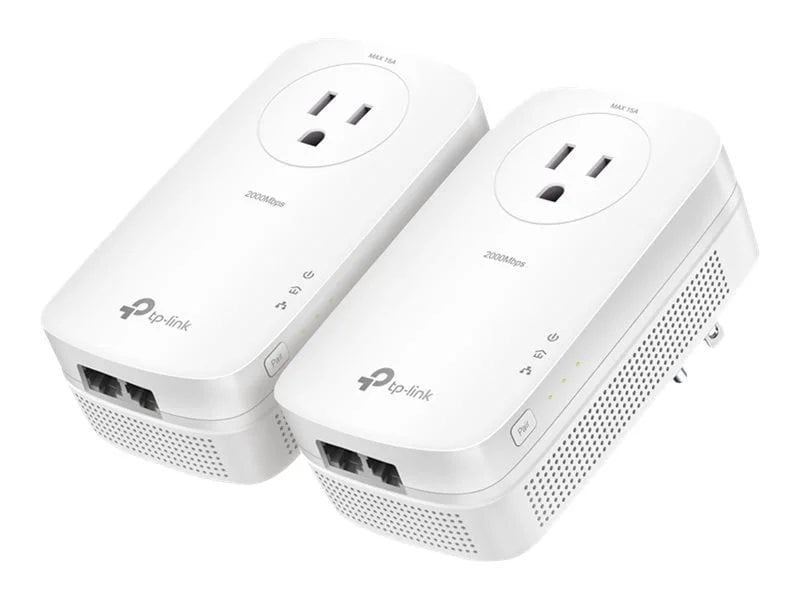

AV2000 2000 Mbit/s Ethernet LAN White 2 pc(s)
Model AV2000Part no. 78407235
38 specifications
- Speed2000 Mbit/s
- ColourWhite
- Power consumption (typical)5.8 W
- LED indicatorsLAN, Power
- Linux operating systems supportedYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 2000 Mbit/s
- Colour
- White
- Power consumption (typical)
- 5.8 W
- LED indicators
- LAN, Power
- Linux operating systems supported
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Lenovo
- Category
- PowerLine Network Adapter
- Model
- AV2000
- Part number
- 78407235
- Also known as
- Lenovo AV2000 2000 Mbit/s Ethernet LAN White 2 pc(s)
Specifications
38 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | No |
| Networking standards | IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Quality of Service (QoS) support | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5.8 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 120 - 230 V |
| AC input frequency | 50 Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | LAN, Power |
| Product colour | White |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 72 mm |
| Depth | 42 mm |
| Height | 131 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
