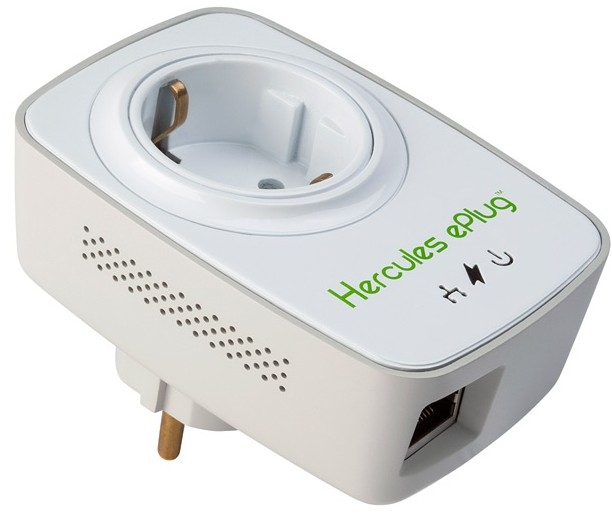

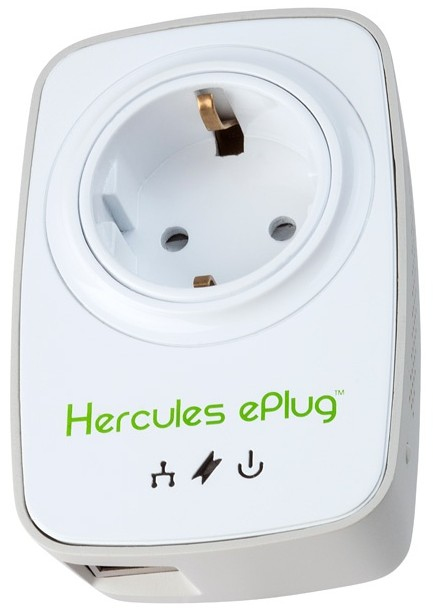

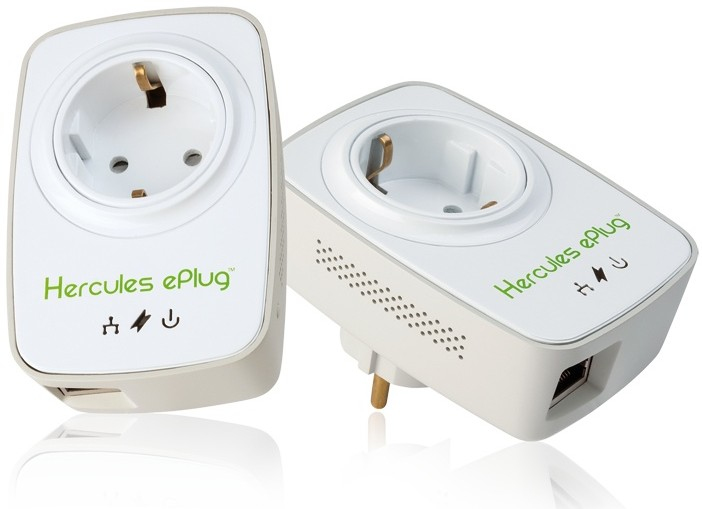

Nano 200 Path Thru Duo
Model Nano 200 Path Thru DuoPart no. 4790229EAN 3362934743512
30 specifications
- Speed200 Mbit/s
- Weight84 g
- ColourWhite
- Power consumption (typical)2.6 W
- LED indicatorsLAN, Operation
- Linux operating systems supportedYes
Overview
- Speed
- 200 Mbit/s
- Weight
- 84 g
- Colour
- White
- Power consumption (typical)
- 2.6 W
- LED indicators
- LAN, Operation
- Linux operating systems supported
- Yes
- Brand
- Hercules
- Category
- PowerLine Network Adapter
- Model
- Nano 200 Path Thru Duo
- Part number
- 4790229
- EAN / UPC
- 3362934743512
- Also known as
- Hercules Nano 200 Path Thru Duo 200 Mbit/s Ethernet LAN White 2 pc(s)
Specifications
30 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 200 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV |
| Modulation | 1024-QAM, 256-QAM, 64-QAM, BPSK, OFDM, QPSK |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Encryption button | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.6 W |
| Power consumption (standby) | 0.4 W |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | LAN, Operation |
| Product colour | White |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Premium, Windows 7 Home Premium x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows XP Home |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 84 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
