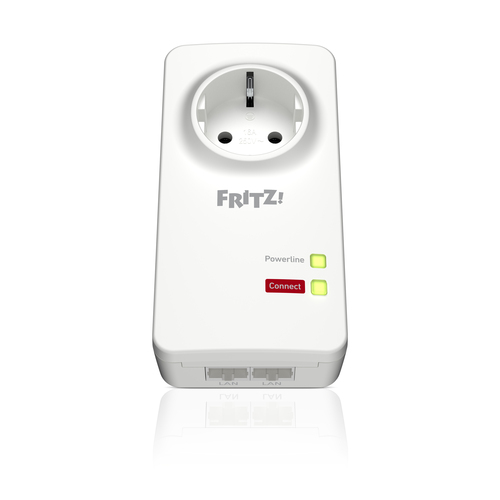

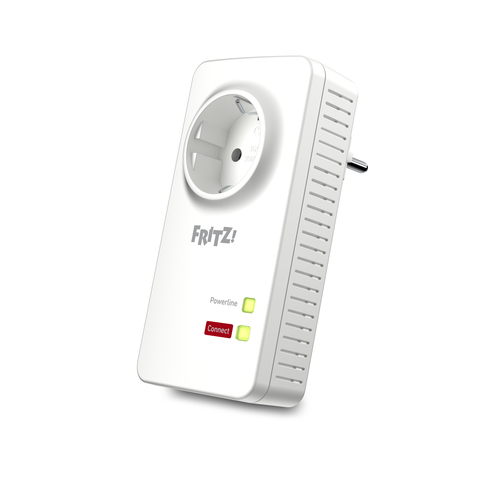

FRITZ!Powerline 1220
Model FRITZ!Powerline 1220Part no. 20002736EAN 4023125027369
27 specifications
- Speed1200 Mbit/s
- Weight220 g
- ColourWhite
- Power consumption (typical)3 W
- LED indicatorsLAN, Power
- Width59 mm
Overview
- Speed
- 1200 Mbit/s
- Weight
- 220 g
- Colour
- White
- Power consumption (typical)
- 3 W
- LED indicators
- LAN, Power
- Width
- 59 mm
- Brand
- FRITZ!
- Category
- PowerLine Network Adapter
- Model
- FRITZ!Powerline 1220
- Part number
- 20002736
- EAN / UPC
- 4023125027369
- Also known as
- Powerline FRITZ! 1220 1200 Mbit/s Ethernet LAN White 1 pc(s)
Specifications
27 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1200 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | No |
| Power plug | Type F |
| Built-in power socket | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 3 W |
| Power consumption (standby) | 1 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | LAN, Power |
| Product colour | White |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 59 mm |
| Depth | 41 mm |
| Height | 132 mm |
| Weight | 220 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 125 mm |
| Package depth | 85 mm |
| Package height | 185 mm |
| Package weight | 400 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Quick installation guide | Yes |
| Cables included | DSL |
