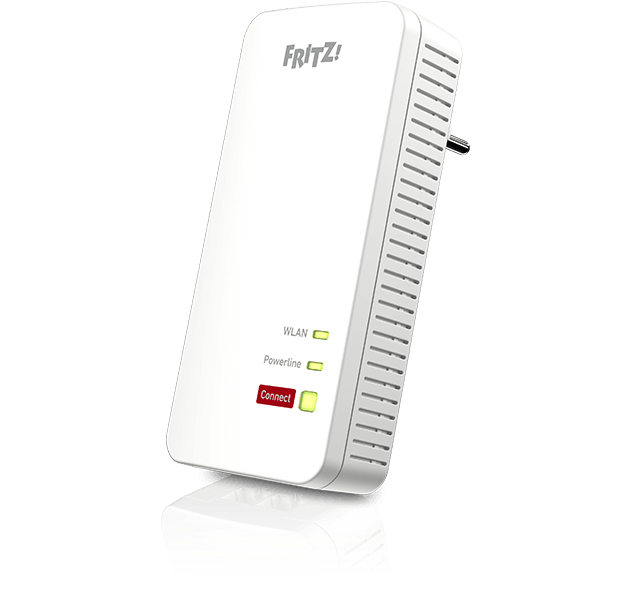

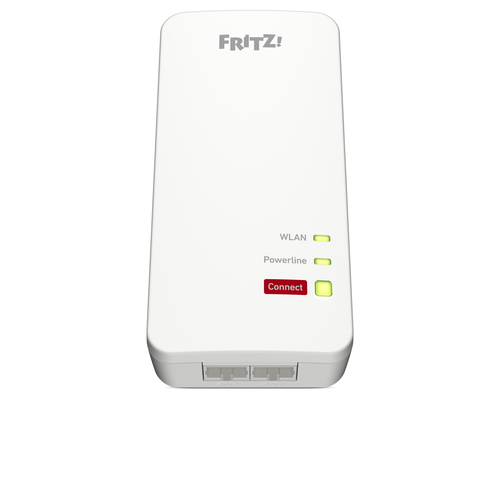

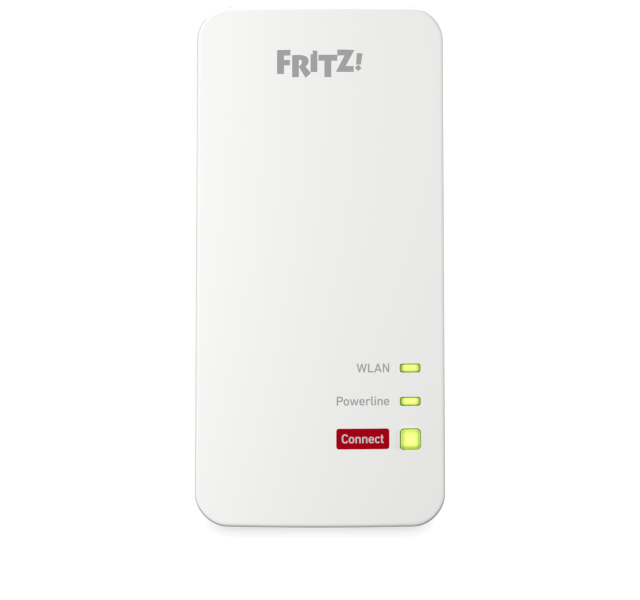

1240 AX
Model 1240 AXPart no. 20003023EAN 4023125030239
33 specifications
- Speed1200 Mbit/s
- Weight210 g
- ColourWhite
- AC input voltage230 V
- LED indicatorsYes
- Width71 mm
Overview
- Speed
- 1200 Mbit/s
- Weight
- 210 g
- Colour
- White
- AC input voltage
- 230 V
- LED indicators
- Yes
- Width
- 71 mm
- Brand
- FRITZ!
- Category
- PowerLine Network Adapter
- Model
- 1240 AX
- Part number
- 20003023
- EAN / UPC
- 4023125030239
- Also known as
- Powerline 1240 AX 1200 Mbit/s Ethernet LAN Wi-Fi White 1 pc(s)
Specifications
33 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1200 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Single-band (2.4 GHz) |
| WLAN data transfer rate (first band) | 600 Mbit/s |
| Networking standards | IEEE 802.11ac |
| Power plug | Type F |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV2 |
| Security algorithms | 128-bit AES, WPA2, WPS |
| MIMO | Yes |
| MIMO type | Single User MIMO |
| Quality of Service (QoS) support | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Product colour | White |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 71 mm |
| Depth | 32.5 mm |
| Height | 147.5 mm |
| Weight | 210 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 136 mm |
| Package depth | 187 mm |
| Package height | 84 mm |
| Package weight | 340 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
