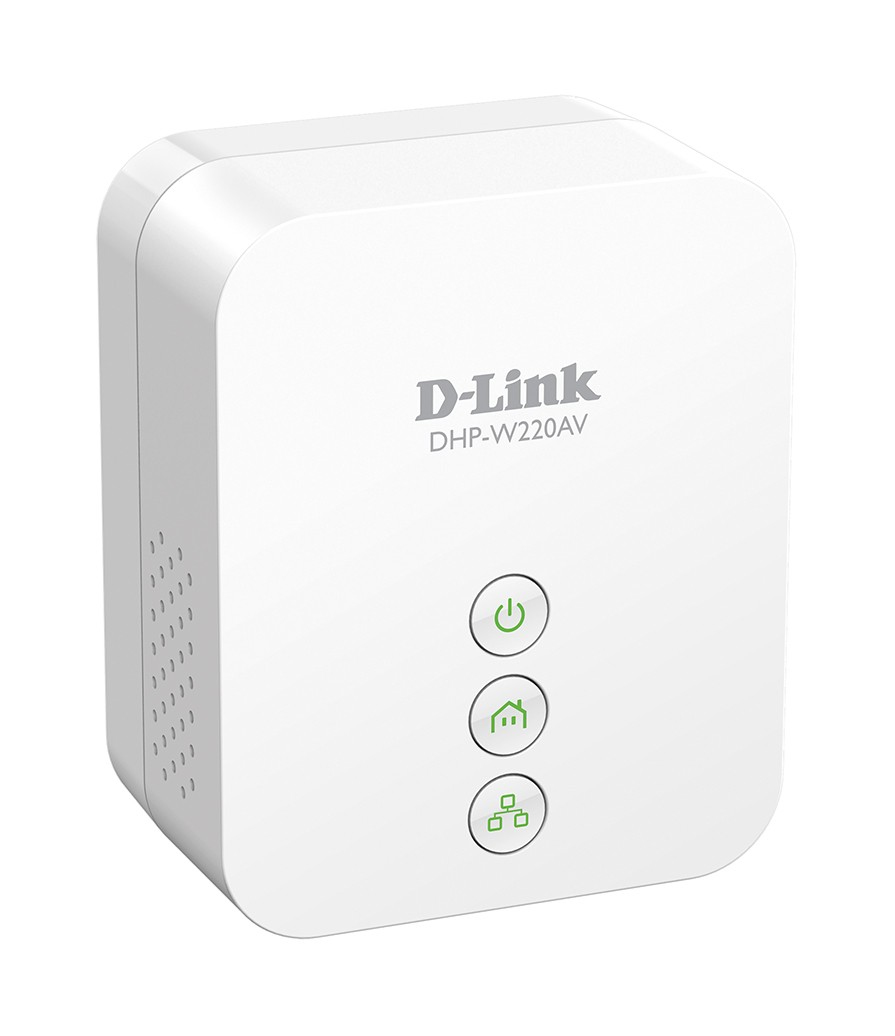

DHP-W220AV PowerLine network adapter 200 Mbit/s Ethernet LAN Wi-Fi White 1 pc(s)
Model DHP-W220AV
29 specifications
- Speed200 Mbit/s
- Weight96 g
- ColourWhite
- AC input voltage100-240 V
- LED indicatorsLAN, Power, Reset
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 200 Mbit/s
- Weight
- 96 g
- Colour
- White
- AC input voltage
- 100-240 V
- LED indicators
- LAN, Power, Reset
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- D-Link
- Category
- PowerLine Network Adapter
- Model
- DHP-W220AV
- Part number
- DHP-W220AV
- Also known as
- D-Link DHP-W220AV PowerLine network adapter 200 Mbit/s Ethernet LAN Wi-Fi White 1 pc(s)
Specifications
29 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 200 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |

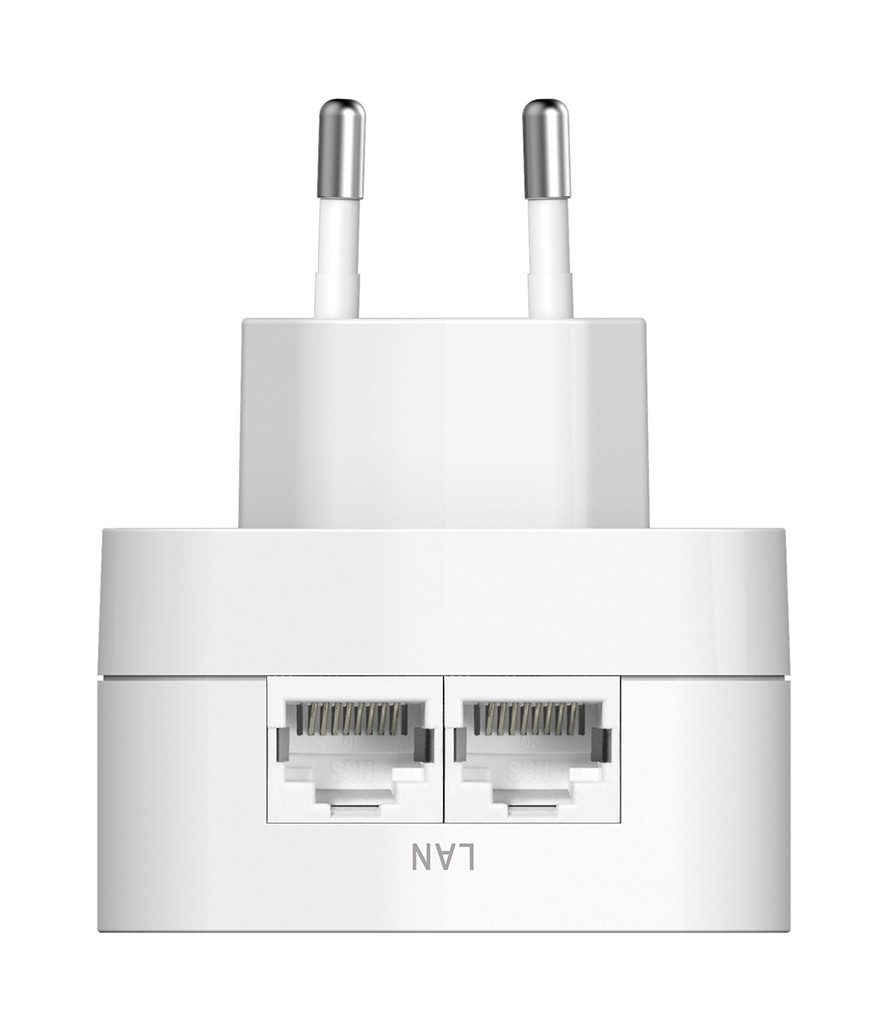

| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 150 Mbit/s |
| Networking standards | IEEE 1901, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3u |

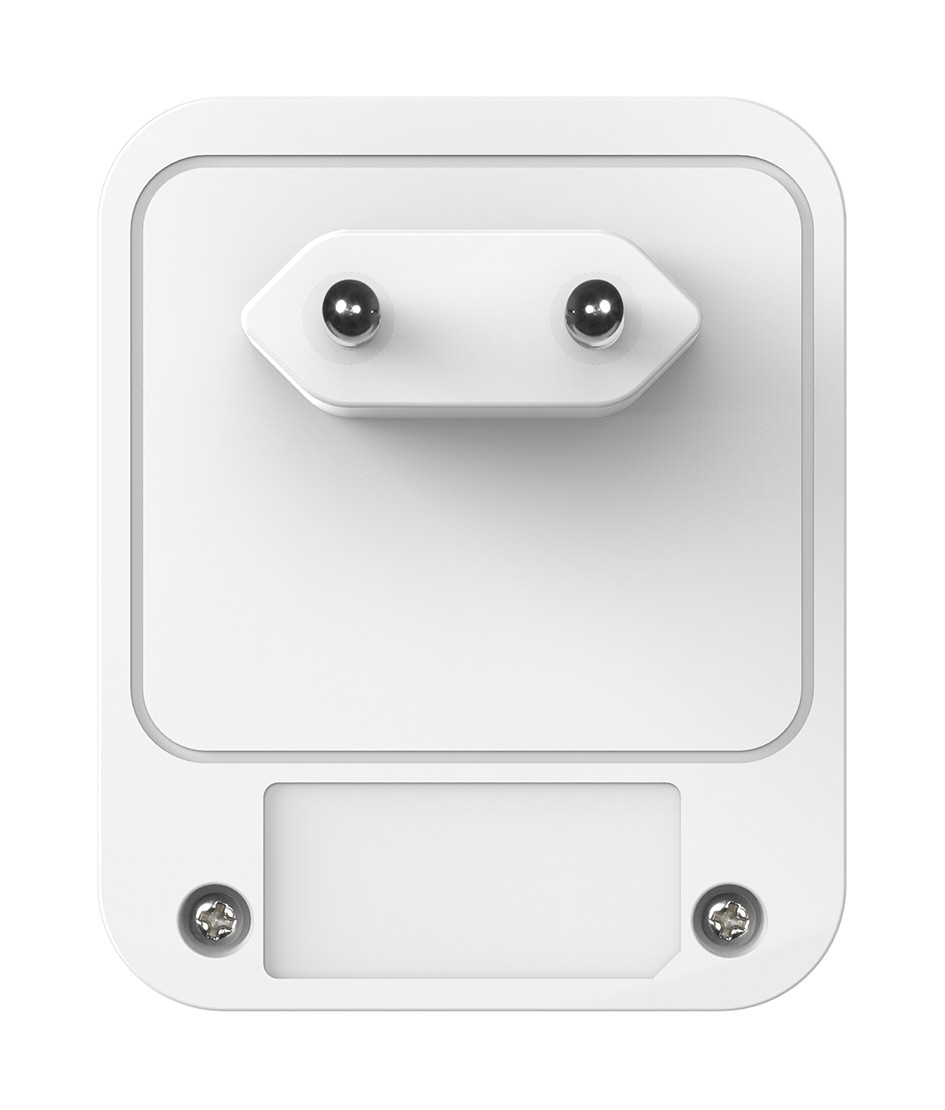

| Power plug | Type C |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV |
| Security algorithms | 128-bit AES, WEP, WPA, WPA2 |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|

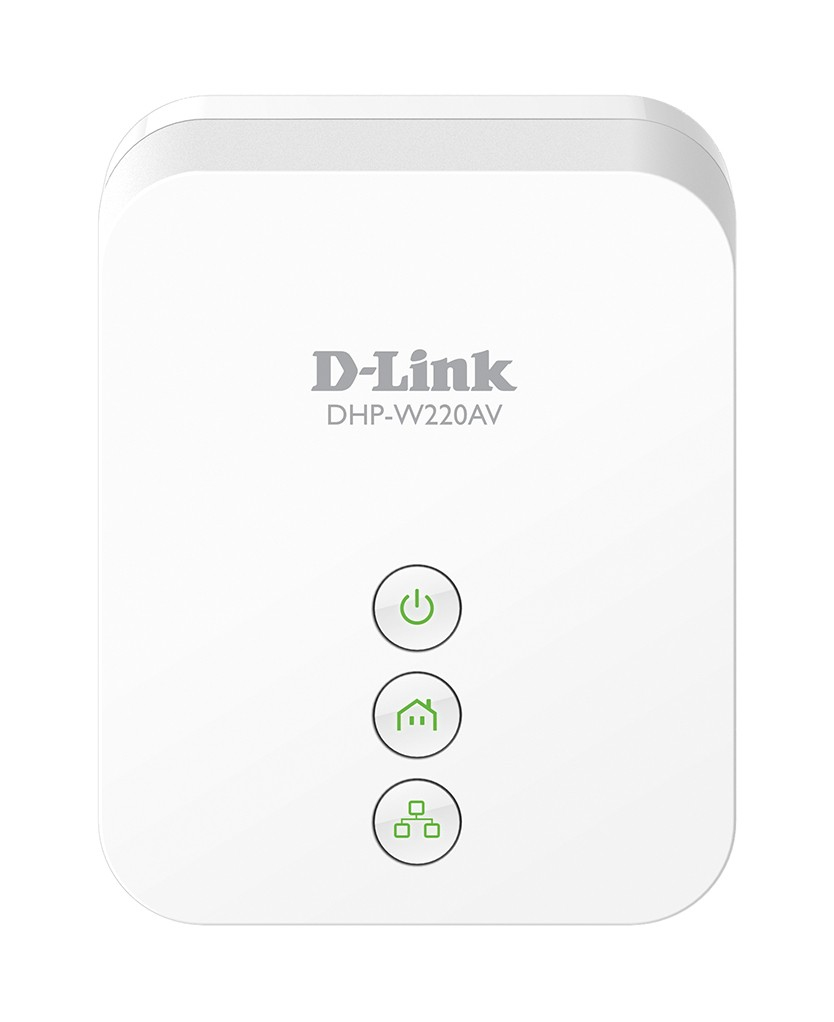

| LED indicators | LAN, Power, Reset |
| Product colour | White |
| Certification | CE, FCC, CE, CE/LVD,UL |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 73 mm |
| Depth | 58 mm |
| Height | 37 mm |
| Weight | 96 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
