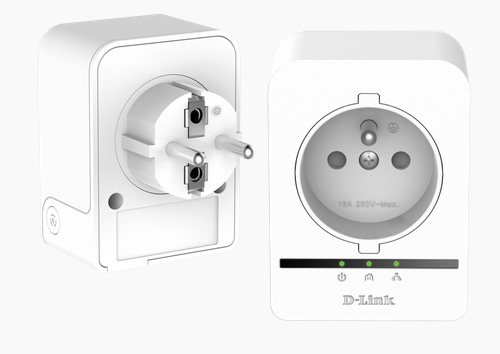

DHP-P509AV PowerLine network adapter 500 Mbit/s Ethernet LAN White
Model DHP-P509AV
25 specifications
- Speed500 Mbit/s
- Weight155 g
- ColourWhite
- Power consumption (typical)2.7 W
- LED indicatorsLAN, Power
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 500 Mbit/s
- Weight
- 155 g
- Colour
- White
- Power consumption (typical)
- 2.7 W
- LED indicators
- LAN, Power
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- D-Link
- Category
- PowerLine Network Adapter
- Model
- DHP-P509AV
- Part number
- DHP-P509AV
- Also known as
- D-Link DHP-P509AV PowerLine network adapter 500 Mbit/s Ethernet LAN White
Specifications
25 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 500 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Networking standards | IEEE 1901, IEEE 802.3, IEEE 802.3u |
| Power plug | Type E |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV |
| Security algorithms | 128-bit AES |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.7 W |
| AC input voltage | 100-240 V |
Design
| Specification | Value |
|---|---|
| LED indicators | LAN, Power |
| Product colour | White |
| Certification | CE LVD, FCC, CE, UL |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70.2 mm |
| Depth | 58.2 mm |
| Height | 77.7 mm |
| Weight | 155 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
