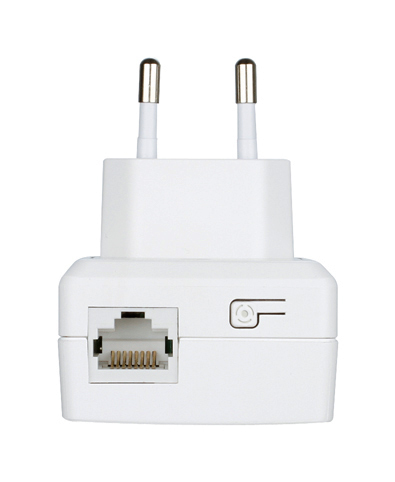

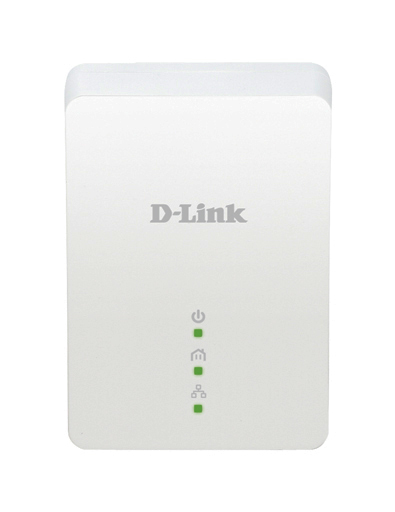

DHP-208AV PowerLine network adapter 200 Mbit/s Ethernet LAN White 1 pc(s)
Model DHP-208AV
29 specifications
- Speed200 Mbit/s
- Weight58.1 g
- ColourWhite
- AC input voltage100-240 V
- LED indicatorsYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 200 Mbit/s
- Weight
- 58.1 g
- Colour
- White
- AC input voltage
- 100-240 V
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- D-Link
- Category
- PowerLine Network Adapter
- Model
- DHP-208AV
- Part number
- DHP-208AV
- Also known as
- D-Link DHP-208AV PowerLine network adapter 200 Mbit/s Ethernet LAN White 1 pc(s)
Specifications
29 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 200 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Networking standards | IEEE 1901, IEEE 802.3, IEEE 802.3u |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Frequency range | 2 - 30 MHz |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Product colour | White |
| Certification | CE Class B / FCC CE LVD / UL |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 47.8 mm |
| Depth | 27.7 mm |
| Height | 65.6 mm |
| Weight | 58.1 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
