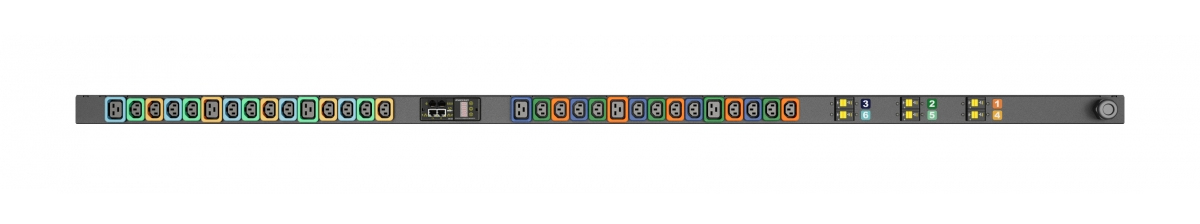

Vertiv Geist MG03E4W1-30PN63-3PS56B2A10-S-A-RC power distribution unit (PDU) 30 AC outlet(s) Black

Vertiv Geist MG03E4W1-30PN63-3PS56B2A10-S-A-RC power distribution unit (PDU) 30 AC outlet(s) Black

Model MG03E4W1-30PN63-3PS56B2A10-S-A-RCPart no. VP4G9003EAN 4061471339972

33 specifications
  • Power22000 W
  • TypeThree-phase
  • ColourBlack
  • PDU typesMonitored
  • AC outlets quantity30 AC outlet(s)
  • Daisy chainYes
See all specifications

Overview

Power
22000 W
Type
Three-phase
Colour
Black
PDU types
Monitored
AC outlets quantity
30 AC outlet(s)
Daisy chain
Yes
Brand
Vertiv
Model
MG03E4W1-30PN63-3PS56B2A10-S-A-RC
Part number
VP4G9003
EAN / UPC
4061471339972
Also known as
Vertiv Geist MG03E4W1-30PN63-3PS56B2A10-S-A-RC power distribution unit (PDU) 30 AC outlet(s) Black

Specifications

33 specifications in 11 groups

Design

PDU typesMonitored
TypeThree-phase
MountingVertical
Product colourBlack
DisplayLED
On/off switchYes

Ports & interfaces

AC outlets quantity30 AC outlet(s)
Power plugIEC 60309
AC outlet typesC13 coupler, C19 coupler, IEC 60309
Serial ports quantity1
Ethernet LAN (RJ-45) ports1
USB ports quantity1

Features

Daisy chainYes
Reset buttonYes
LED indicatorsYes
Cable length3 m

Management features

MonitoringCurrent, Power, Voltage
Supported network protocolsDHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP

Power

Nominal input voltage200-240/346-415V WYE
AC input frequency50/60 Hz
Maximum current32 A
Output voltage230 V
Maximum power22000 W
Circuit breakerYes

Certificates

Compliance certificatesCE, RoHS, UKCA
CertificationANSI C12.1, IEC 62053-21, IEC 62368-1, EN 55032, EN 55035

Sustainability

Sustainability complianceYes

Operational conditions

Operating temperature (T-T)0 - 60 °C

Weight & dimensions

Width51 mm
Depth58 mm
Height1829 mm

Packaging data

Package weight7.71 kg

Logistics data

Warranty period5 year(s)
