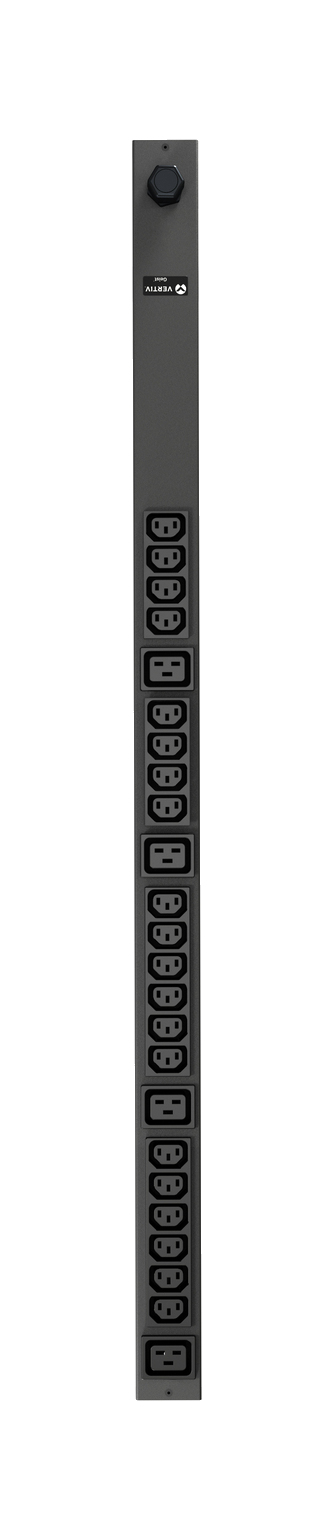

Geist rPDU, basic, 0U, input IEC60309 230V 16A, outputs (20)C13 | (4)C19
Model Geist rPDU, basic, 0U, input IEC60309 230V 16A, outputs (20)C13 | (4)C19Part no. VP7551EAN 767041026146
25 specifications
- TypeSingle-phase
- Weight3.5 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity24 AC outlet(s)
- LED indicatorsNo
Overview
- Type
- Single-phase
- Weight
- 3.5 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 24 AC outlet(s)
- LED indicators
- No
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- Geist rPDU, basic, 0U, input IEC60309 230V 16A, outputs (20)C13 | (4)C19
- Part number
- VP7551
- EAN / UPC
- 767041026146, 4061471339026
- Also known as
- Vertiv Geist rPDU, basic, 0U, input IEC60309 230V 16A, outputs (20)C13 | (4)C19 power distribution unit (PDU) 24 AC outlet(s) Black
Specifications
25 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Output connections | 20 x C13 & 4 x C19 |
Features
| Specification | Value |
|---|---|
| LED indicators | No |
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| AC input frequency | 50 Hz |
| Maximum current | 16 A |
| Load capacity | 3600 VA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, RoHS, CB |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 978 mm |
| Depth | 51 mm |
| Height | 51 mm |
| Weight | 3.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1270 mm |
| Package depth | 127 mm |
| Package height | 77 mm |
