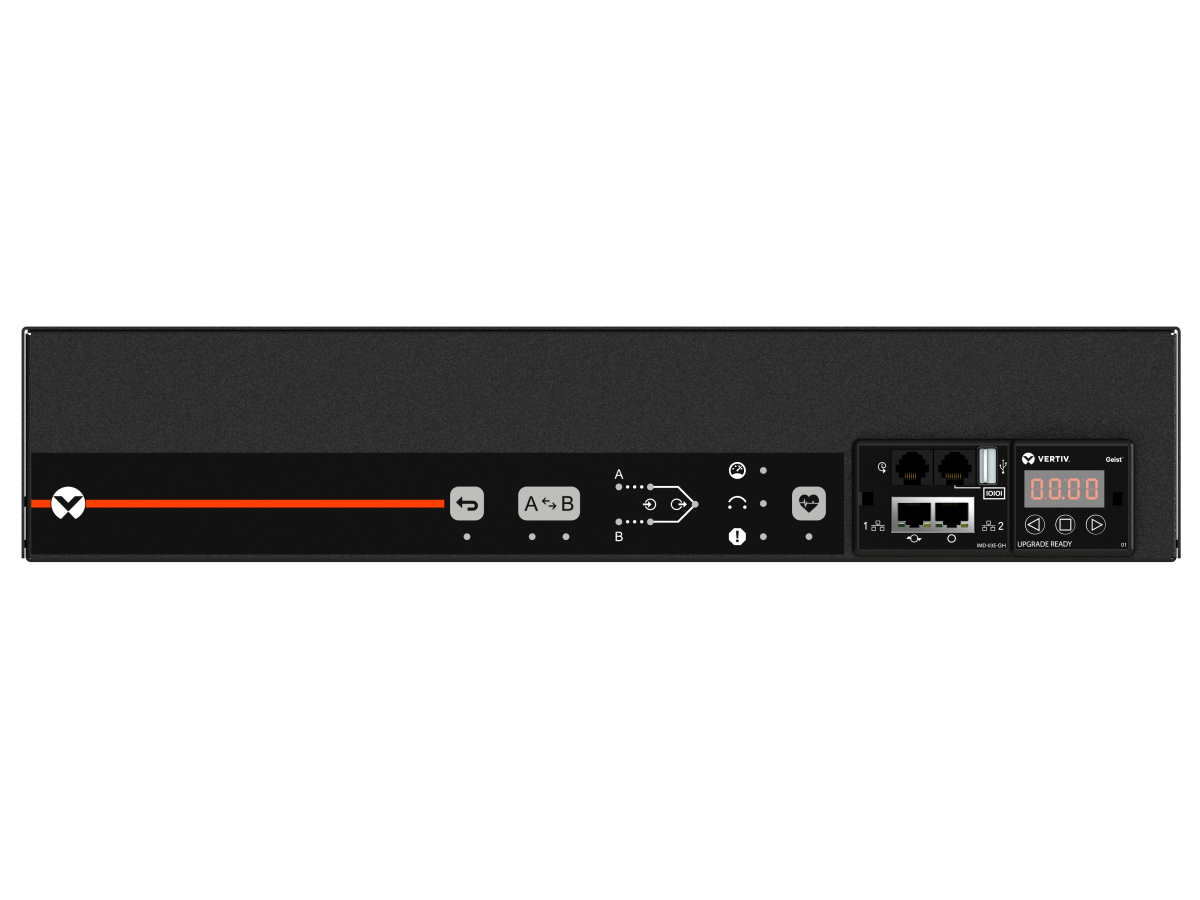

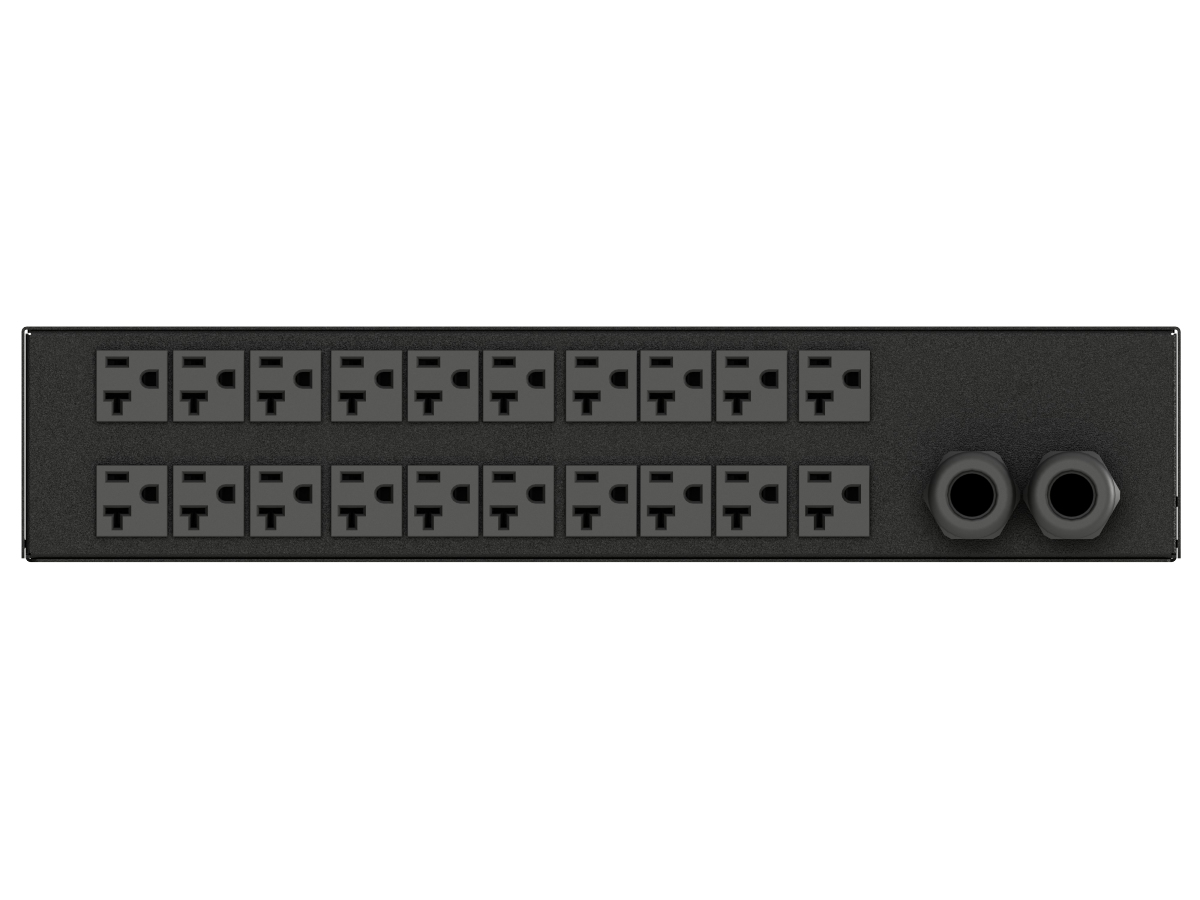

Geist AN03E2R0-20S203-2ST5ST5A011-D power distribution unit (PDU) 20 AC outlet(s) 0U Black
Model AN03E2R0-20S203-2ST5ST5A011-DPart no. VA4N2200
27 specifications
- TypeSingle-phase
- ColourBlack
- PDU typesMonitored, Switched
- AC outlets quantity20 AC outlet(s)
- LED indicatorsNo
- MonitoringCurrent, Power, Voltage
Overview
- Type
- Single-phase
- Colour
- Black
- PDU types
- Monitored, Switched
- AC outlets quantity
- 20 AC outlet(s)
- LED indicators
- No
- Monitoring
- Current, Power, Voltage
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- AN03E2R0-20S203-2ST5ST5A011-D
- Part number
- VA4N2200
- Also known as
- Vertiv Geist AN03E2R0-20S203-2ST5ST5A011-D power distribution unit (PDU) 20 AC outlet(s) 0U Black
Specifications
27 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored, Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Horizontal |
| Product colour | Black |
| Display | LED |
| On/off switch | No |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 20 AC outlet(s) |
| Power plug | NEMA 5-20P |
| AC outlet types | NEMA 5-20R |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| LED indicators | No |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-120 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Output voltage | 120 V |
| Load capacity | 120 VA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 457 mm |
| Height | 87 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5.44 kg |
