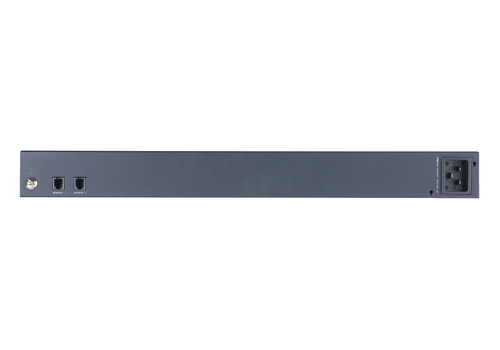

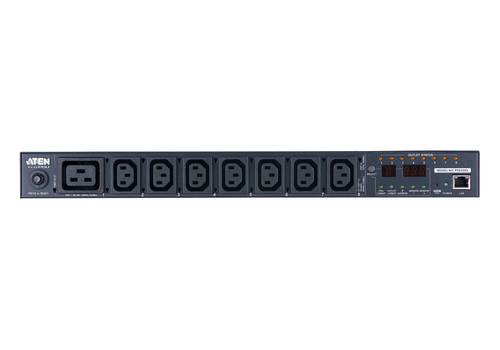

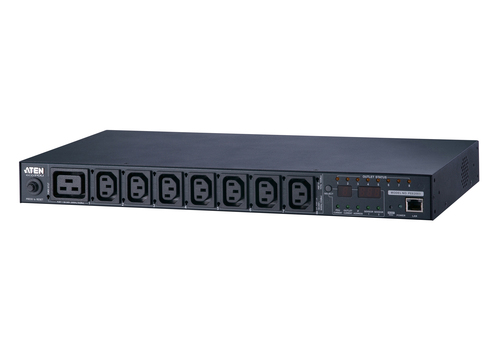

20A/16A 8-Outlet 1U Outlet-Metered & Switched eco PDU
Model PE8208BPart no. PE8208B-AX-B
32 specifications
- Weight2.84 kg
- ColourBlack
- PDU typesMetered, Switched
- AC outlets quantity8 AC outlet(s)
- Cable length3 m
- MonitoringCurrent, Power, Voltage
Overview
- Weight
- 2.84 kg
- Colour
- Black
- PDU types
- Metered, Switched
- AC outlets quantity
- 8 AC outlet(s)
- Cable length
- 3 m
- Monitoring
- Current, Power, Voltage
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE8208B
- Part number
- PE8208B-AX-B
- Also known as
- ATEN 20A/16A 8-Outlet 1U Outlet-Metered & Switched eco PDU
Specifications
32 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Switched |
| Rack capacity | 1U |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | NEMA L6-20P |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
| Security algorithms | 128-bit SSL |
| Password protection | Yes |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Firmware upgradeable | Yes |
| Management protocols | SNMP Manager V3 |
| Supported network protocols | TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping, Telnet |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 100 - 240 V |
| Load capacity | 4160 VA |
| Circuit breaker | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC) |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220.4 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 2.84 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
