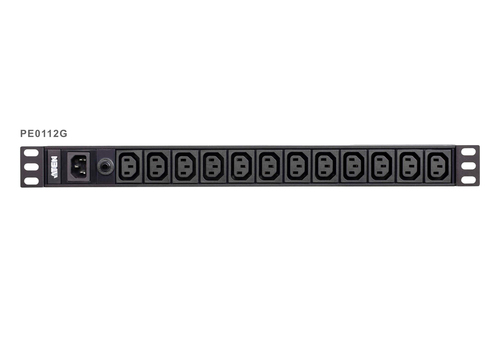

1U 10A 12Port Basic PDU
Model PE0112GPart no. PE0112G-AT-GEAN 4719264647178
33 specifications
- Weight920 g
- ColourBlack
- PDU typesBasic
- AC outlets quantity12 AC outlet(s)
- Cable length3 m
- Nominal input voltage100 -240 V
Overview
- Weight
- 920 g
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 12 AC outlet(s)
- Cable length
- 3 m
- Nominal input voltage
- 100 -240 V
- Brand
- ATEN
- Category
- Power Distribution Units (PDUs)
- Model
- PE0112G
- Part numbers
- PE0112G-AT-G, PE0112G
- EAN / UPC
- 4719264647178
- Also known as
- ATEN 1U 10A 12Port Basic PDU
Specifications
33 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 1U |
| Housing material | Aluminium |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 12 AC outlet(s) |
| AC outlet types | C13 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 -240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 10 A |
| Nominal output voltage | 240 V |
| Load capacity | 2400 VA |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Certification | CE Class A CE,LVD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 450 mm |
| Height | 44 mm |
| Weight | 920 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.18 kg |
| Package width | 112 mm |
| Package depth | 697 mm |
| Package height | 82 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 9.2 kg |
| Master (outer) case width | 595 mm |
| Master (outer) case length | 710 mm |
| Master (outer) case height | 188 mm |
| Master (outer) case gross weight | 13 kg |
| Products per master (outer) case | 10 pc(s) |
