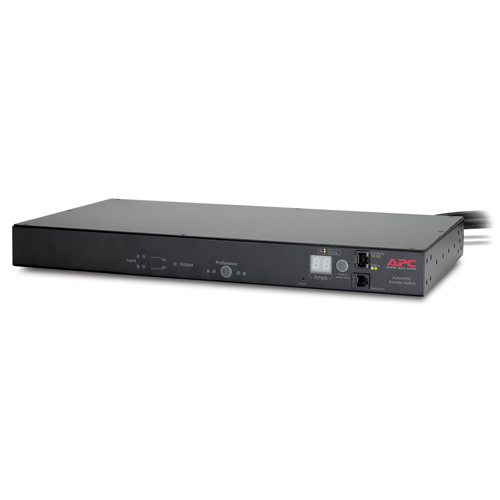

APC RACK ATS, 200-208V
Model RACK ATS, 200-208VPart no. AP7730EAN 731304255819
16 specifications
- Weight5.02 kg
- ColourBlack
- Input connection typeNEMA L6-20P
- Cable length2.44 m
- AC input frequency47/63 Hz
- Operating temperature (T-T)-5 - 45 °C
Overview
- Weight
- 5.02 kg
- Colour
- Black
- Input connection type
- NEMA L6-20P
- Cable length
- 2.44 m
- AC input frequency
- 47/63 Hz
- Operating temperature (T-T)
- -5 - 45 °C
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- RACK ATS, 200-208V
- Part number
- AP7730
- EAN / UPC
- 731304255819, 7313042558198
- Also known as
- APC RACK ATS, 200-208V power distribution unit (PDU) Black
Specifications
16 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | NEMA L6-20P |

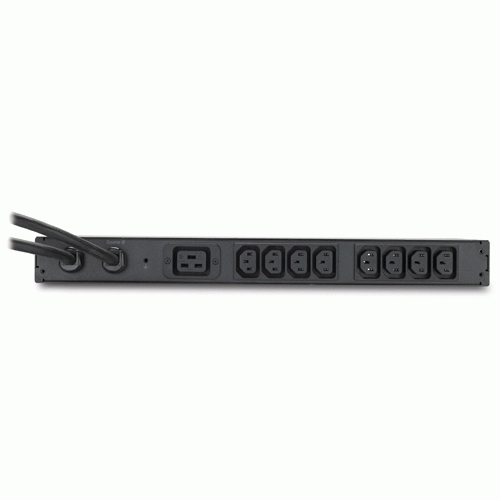

| Output connections | 8x IEC 320 C13 1x IEC 320 C19 |
Features
| Specification | Value |
|---|---|
| Cable length | 2.44 m |
Power
| Specification | Value |
|---|---|
| AC input frequency | 47/63 Hz |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 20 A |
Certificates
| Specification | Value |
|---|---|
| Certification | EN 55022 Class A,FCC Part 15 Class A RoHS 7b Exemption |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 229 mm |
| Height | 44 mm |
| Weight | 5.02 kg |
