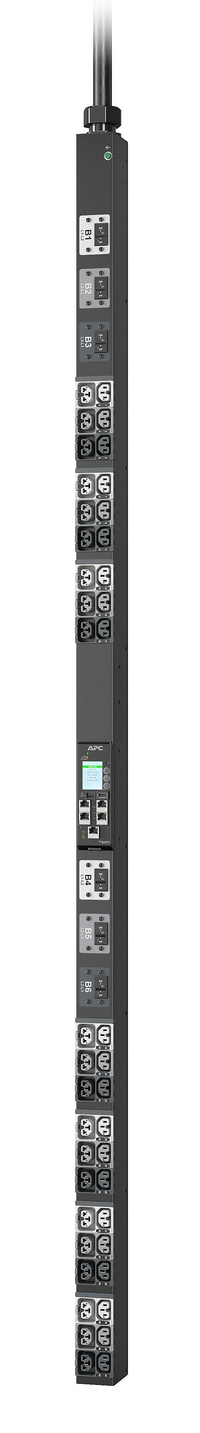

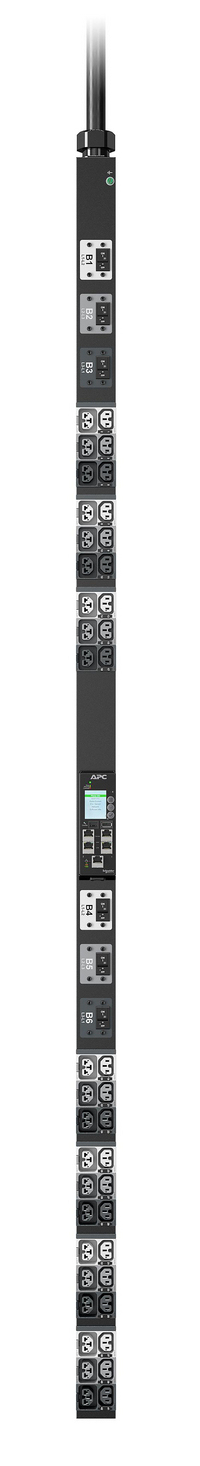

APDU11452ME power distribution unit (PDU) 42 AC outlet(s) 0U Black
Model APDU11452MEEAN 731304752844
26 specifications
- Power17300 W
- Weight10.7 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity42 AC outlet(s)
- Cable length3 m
Overview
- Power
- 17300 W
- Weight
- 10.7 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 42 AC outlet(s)
- Cable length
- 3 m
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- APDU11452ME
- Part number
- APDU11452ME
- EAN / UPC
- 731304752844
- Also known as
- APC APDU11452ME power distribution unit (PDU) 42 AC outlet(s) 0U Black
Specifications
26 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 42 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 60 A |
| Nominal output voltage | 208 V |
| Output voltage | 208 V |
| Load capacity | 17300 VA |
| Maximum power | 17300 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 60 °C |
| Operating temperature (charge) (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -5 - 60 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 75 mm |
| Height | 1780 mm |
| Weight | 10.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 13.7 kg |
| Package width | 132 mm |
| Package depth | 262 mm |
| Package height | 1980 mm |
