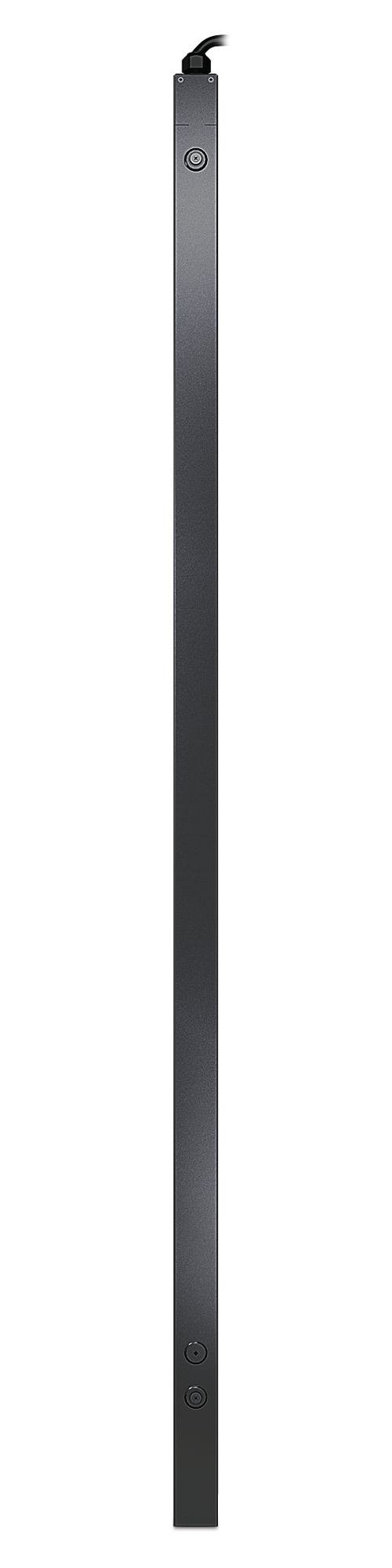

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

Model AP8681EAN 731304299530

33 specifications

Power11040 W
Weight8.23 kg
ColourBlack
Rack capacity0U
AC outlets quantity24 AC outlet(s)
Cable length1.83 m

See all specifications

Overview

Power: 11040 W
Weight: 8.23 kg
Colour: Black
Rack capacity: 0U
AC outlets quantity: 24 AC outlet(s)
Cable length: 1.83 m

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP8681
Part number: AP8681
EAN / UPC: 731304299530, 7313042995306
Also known as: APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

Specifications

33 specifications in 10 groups

Design

Specification	Value
PDU types	Metered, Metered-by-outlet, Switched
Rack capacity	0U
Mounting	Vertical
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler

Features

Specification	Value
Cable length	1.83 m

Management features

Specification	Value
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on

Power

Specification	Value
Nominal input voltage	400 V
AC input frequency	50 - 60 Hz
Maximum current	16 A
Nominal output voltage	230 V
Load capacity	11040 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
Maximum power	11040 W

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Weight & dimensions

Specification	Value
Width	56 mm
Depth	51 mm
Height	1829 mm
Weight	8.23 kg

Packaging data

Specification	Value
Package weight	10.5 kg
Package width	162 mm
Package depth	117 mm
Package height	2038 mm

Logistics data

Specification	Value
Total carbon footprint (kg of CO2e)	10364.02
