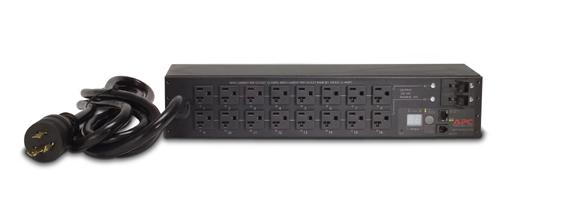

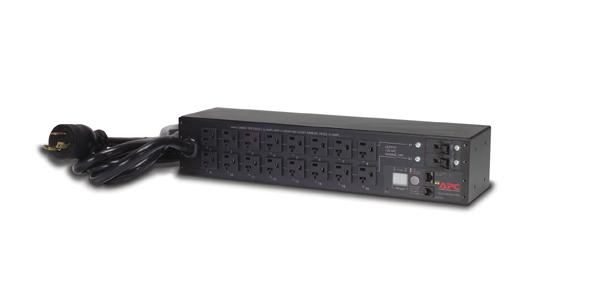

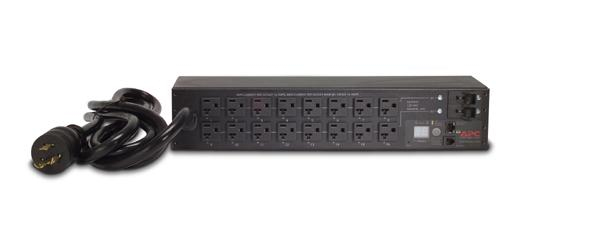

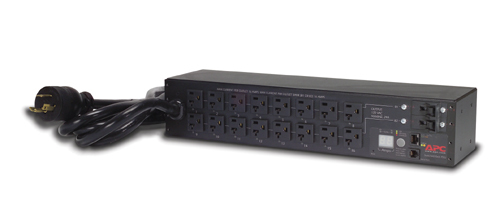

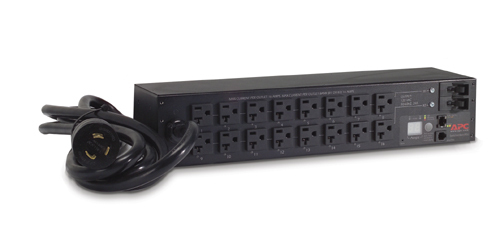

APC Rack PDU, Switched, 2U, 30A

APC Rack PDU, Switched, 2U, 30A

120V, (16)5-20

Model AP7902BEAN 731304331582

31 specifications

Weight4.5 kg
ColourBlack
PDU typesSwitched
AC outlets quantity16 AC outlet(s)
LED indicatorsAlarm
Outlet controlRecycle, Turn off

See all specifications

Overview

Weight: 4.5 kg
Colour: Black
PDU types: Switched
AC outlets quantity: 16 AC outlet(s)
LED indicators: Alarm
Outlet control: Recycle, Turn off

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP7902B
Part number: AP7902B
EAN / UPC: 731304331582
Also known as: APC Rack PDU, Switched, 2U, 30A, 120V, (16)5-20

Specifications

31 specifications in 9 groups

Design

Specification	Value
PDU types	Switched
Rack capacity	2U
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	16 AC outlet(s)
AC outlet types	NEMA 5–20R
Input connection type	NEMA L5-30P
Output connections	NEMA 5-20R

Features

Specification	Value
LED indicators	Alarm
Cable length	3.05 m

Management features

Specification	Value
Outlet control	Recycle, Turn off

Power

Specification	Value
Nominal input voltage	100-120 V
AC input frequency	50 - 60 Hz
Maximum current	30 A
Nominal output voltage	120 V
Load capacity	2880 VA
Maximum total current draw per phase	30 A

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	cUL Listed, CSA, FCC Part 15 Class A, ICES-003, Industry Canada, UL 60950, UL Listed

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m

Weight & dimensions

Specification	Value
Width	445 mm
Depth	114 mm
Height	89 mm
Weight	4.5 kg

Packaging data

Specification	Value
Package weight	6.55 kg
Package width	508 mm
Package depth	368 mm
Package height	140 mm
